Collection: Outboard motor body

SUZUKI outboard motor protection anode equivalent to genuine product number "55320-95311"

[Material] Anti-corrosion zinc
[Compatibility] Used in: SUZUKI outboard motor 4-stroke model

●Bracket: DF9.9/15(-'00)

- Clamp bracket: DF25/30 (3 cylinder), DF40/50, DF40A/50A/60AQ specifications (-'14)

●Extension case: DF60/70 (Transom X specification only)

SUZUKI outboard motor genuine protection anode 55321-95J00

[Material] Anti-corrosion zinc
[Compatibility] Used in: SUZUKI outboard motor 4-stroke model

●Cylinder: DF2/DF8A/9.9A

-Cylinder head: DF5A/6A (installed at the back of the thermostat), DF25 (V2)

SUZUKI outboard motor protection anode equivalent to genuine product number "55320-95311"
■1 set of 3 pieces

[Material] Anti-corrosion zinc
[Compatibility] Used in: SUZUKI outboard motor 4-stroke model

●Bracket: DF9.9/15(-'00)

- Clamp bracket: DF25/30 (3 cylinder), DF40/50, DF40A/50A/60AQ specifications (-'14)

●Extension case: DF60/70 (Transom X specification only)

SUZUKI outboard motor protection anode equivalent to genuine product number "55320-94900"

[Material] Anti-corrosion zinc
[Compatibility] Used in: SUZUKI outboard motor 4-stroke model

- Clamp bracket: DF60A (tilt specification only), DF60/70, DF70A/80A/90A, DF90/100/115/140/100A/115A/140A, DF150/175/150TG/175TG, DF200A/200AP, DF200/225 /250・DF300/250AP/300AP

SUZUKI Outboard Motor Protection Anode Equivalent to genuine part number "55320-94900" ■1 set of 2

[Material] Anti-corrosion zinc [Compatibility] Used in: SUZUKI outboard motor 4-stroke model

- Clamp bracket: DF60A (tilt specification only), DF60/70, DF70A/80A/90A, DF90/100/115/140/100A/115A/140A, DF150/175/150TG/175TG, DF200A/200AP, DF200/225 /250・DF300/250AP/300AP

SUZUKI outboard motor aftermarket product Protection anode Equivalent to genuine product number "55321-87J01"

[Material] Anti-corrosion zinc
[Compatibility] Used in: SUZUKI outboard motor 4-stroke model

-Gear case: DF2, DF5, DF5A/6A, DF8A/9.9A, DF9.9B/15A/20A, DF70A/80A/90A

-Drive shaft housing: DF5/DF25(V2)/DF60AV

-Cylinder head: DF8A/9.9A, DF9.9B/15A/20A, DF40/50('05-), DF40A/50A/60A/60AV, DF70A/80A/90A, DF90(421060-), DF115(421141-) )・DF150/175/150TG/175TG・DF200A/200AP・DF200/225/250・DF300/250AP/300AP

-Cylinder block: DF40/50・DF40A/50A/60A/60AV・DF100A(510032-)・DF115A(510411-)・DF140A(510550-)・DF150/175/150TG/175TG・DF200A/200AP

- Clamp bracket (PTT specification only): DF9.9B/15A/20A, DF25(V2), DF25A/30A, DF40A/50A/60AQ specification ('15-), DF60AV

●Swivel bracket: DF9.9B/15A/20A (PTT specification + transom L/X only)・DF25(V2)・DF25A/30A・・DF150/175/150TG/175TG

-PTT (PTT specification only): DF9.9B/15A/20A, DF25/30 (3 cylinder), DF25A/30A, DF40/50 ('01-), DF40A/50A/60A/60AV, DF60/70 (' 01-)

●Oil pan: DF25(V2)・DF200A/200AP・DF200/225/250・DF300/250AP/300AP

●Case, extension (LL specification only):・DF25(V2)

-Gas assist (gas assist specification only):・DF25(V2)・DF25/30(3 cylinder)・DF25A/30A・DF40/50('01-)・DF40A/50A/60A/60AV

-Exhaust cover: DF25/30 (3 cylinders), DF70A/80A/90A, DF150/175/150TG/175TG, DF200/225/250, DF300/250AP/300AP

●Exhaust manifold: DF25A/30A・DF60/70
●Extension case: DF70A/80A/90A (transom X specification)
●Rectifier: DF90/100/115/140/100A/115A/140A
●Propeller shaft housing: DF300(-'11)

SUZUKI outboard motor aftermarket product Protection anode Equivalent to genuine product number "55321-87J01" ■1 set of 5 pieces

[Material] Anti-corrosion zinc [Compatibility] Used in: SUZUKI outboard motor 4-stroke model

-Gear case: DF2, DF5, DF5A/6A, DF8A/9.9A, DF9.9B/15A/20A, DF70A/80A/90A

-Drive shaft housing: DF5/DF25(V2)/DF60AV

-Cylinder head: DF8A/9.9A, DF9.9B/15A/20A, DF40/50('05-), DF40A/50A/60A/60AV, DF70A/80A/90A, DF90(421060-), DF115(421141-) )・DF150/175/150TG/175TG・DF200A/200AP・DF200/225/250・DF300/250AP/300AP

-Cylinder block: DF40/50・DF40A/50A/60A/60AV・DF100A(510032-)・DF115A(510411-)・DF140A(510550-)・DF150/175/150TG/175TG・DF200A/200AP

- Clamp bracket (PTT specification only): DF9.9B/15A/20A, DF25(V2), DF25A/30A, DF40A/50A/60AQ specification ('15-), DF60AV

●Swivel bracket: DF9.9B/15A/20A (PTT specification + transom L/X only)・DF25(V2)・DF25A/30A・・DF150/175/150TG/175TG

-PTT (PTT specification only): DF9.9B/15A/20A, DF25/30 (3 cylinder), DF25A/30A, DF40/50 ('01-), DF40A/50A/60A/60AV, DF60/70 (' 01-)

●Oil pan: DF25(V2)・DF200A/200AP・DF200/225/250・DF300/250AP/300AP

●Case, extension (LL specification only):・DF25(V2)

-Gas assist (gas assist specification only):・DF25(V2)・DF25/30(3 cylinder)・DF25A/30A・DF40/50('01-)・DF40A/50A/60A/60AV

-Exhaust cover: DF25/30 (3 cylinders), DF70A/80A/90A, DF150/175/150TG/175TG, DF200/225/250, DF300/250AP/300AP

●Exhaust manifold: DF25A/30A・DF60/70
●Extension case: DF70A/80A/90A (transom X specification)
●Rectifier: DF90/100/115/140/100A/115A/140A
●Propeller shaft housing: DF300(-'11)

■Advance Plus/Entry Set

【set content】
・3m inflatable boat (SV-IBA300)
・HONDA 2 horsepower outboard motor (BF2DH-SCHJ)
・HONDA engine oil 1L (08226-99951)
・Outboard motor stand (JP-HR001)

■Model without preliminary inspection■Inflatable boat that does not require a license or boat inspection if equipped with a 2 horsepower outboard motor.
■The transom is 50mm higher than usual, which increases speed even with the same horsepower.
■One bench mat that can be used to decorate an aluminum bench is included.
*The color of the bucket in the product image is for illustrative purposes only, so you cannot specify the color.

[Boat specifications]
■Material: PVC
■Capacity: 4 people ■Loading capacity: 500kg
■Full length x full width x tube diameter: 300 x 150 x 42cm
■Inboard length: 182cm
■Inner width: 73cm
■Total weight: 34kg
■Bottom type: High pressure air floor ■Maximum horsepower: 10HP
■1 year warranty included

[Standard accessories] 7-piece set aluminum oars x 2 (pair),
carry case,
foot pump,
Aluminum bench (seat board) x 2,
Bench mat x 1,
SAVIVE original bucket,
repair kit

[Note regarding the outboard motor stand]
*The hull air stand requires assembly.
*The plate color of the transom holder varies depending on the arrival time. Please note.

■Advance Plus/Special Set

[Set contents] Boat + 5 items★3m inflatable boat (SV-IBA300)
・HONDA 2 horsepower outboard motor (BF2DH-SCHJ)
・HONDA engine oil 1L (08226-99951)
・Outboard motor stand (JP-HR001)
・5L polyester carrying can (37565)
・High pressure pump (27790)

■Model without preliminary inspection■Inflatable boat that does not require a license or boat inspection if equipped with a 2 horsepower outboard motor.
■The transom is 50mm higher than usual, which increases speed even with the same horsepower.
■One bench mat that can be used to decorate an aluminum bench is included.
*The color of the bucket in the product image is for illustrative purposes only, so you cannot specify the color.

[Boat specifications]
■Material: PVC
■Capacity: 4 people ■Loading capacity: 500kg
■Full length x full width x tube diameter: 300 x 150 x 42cm
■Inboard length: 182cm
■Inner width: 73cm
■Total weight: 34kg
■Bottom type: High pressure air floor ■Maximum horsepower: 10HP
■1 year warranty included

[Standard accessories] 7-piece set aluminum oars x 2 (pair),
carry case,
foot pump,
Aluminum bench (seat board) x 2,
Bench mat x 1,
SAVIVE original bucket,
repair kit

[Note regarding the outboard motor stand]
*The hull air stand requires assembly.
*The plate color of the transom holder varies depending on the arrival time. Please note.

Very convenient for maintenance and storage of outboard motors.
When not in use, it can be folded and stored compactly.

●Material: Steel (black paint)
●Applicable horsepower: Up to 5 horsepower class of 4st outboard motor

●Size: width 540 x depth 640 x height 1000mm
●Outboard motor fixing plate dimensions: width 46 x height 11.5 x thickness 3.5cm
●Height from the top of the outboard motor fixing plate to the ground: Approximately 89.5cm
●Body weight: Approximately 6.0kg

【please note】
*This product requires assembly.
*The plate color of the transom holder varies depending on the arrival time. Please note.

■Model without preliminary inspection ■Inflatable boat that requires no license or boat inspection if equipped with a 2 horsepower outboard motor.
■The transom is 50mm higher than usual, which increases speed even with the same horsepower.
■One bench mat that can be used to decorate an aluminum bench is included.
*The color of the bucket in the product image is for illustrative purposes only, so you cannot specify the color.

[Boat specifications]
■Material: PVC
■Capacity: 4 people ■Loading capacity: 500kg
■Full length x full width x tube diameter: 300 x 150 x 42cm
■Inboard length: 182cm
■Inner width: 73cm
■Total weight: 34kg
■Bottom type: High pressure air floor ■Maximum horsepower: 10HP
■1 year warranty included

[Standard accessories] 7-piece set aluminum oars x 2 (pair),
carry case,
foot pump,
Aluminum bench (seat board) x 2,
Bench mat x 1,
SAVIVE original bucket,
repair kit

■Advance Plus/Entry Set

【set content】
・3m inflatable boat (SV-IBA300)

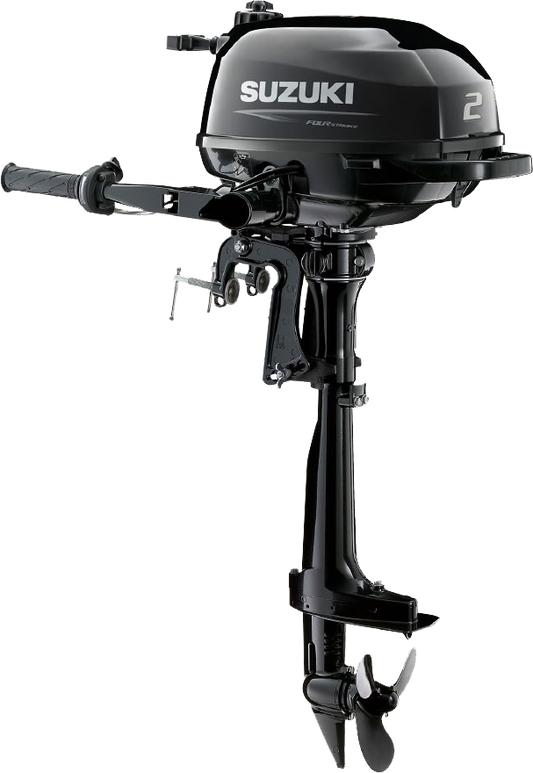

・SUZUKI 2 horsepower outboard motor (DF2S)
・SUZUKI engine oil 1L (99000-22B60-4T1)
・Outboard motor stand (JP-HR001)

■Model without preliminary inspection ■Inflatable boat that requires no license or boat inspection if equipped with a 2 horsepower outboard motor.
■The transom is 50mm higher than usual, which increases speed even with the same horsepower.
■One bench mat that can be used to decorate an aluminum bench is included.
*The color of the bucket in the product image is for illustrative purposes only, so you cannot specify the color.

[Boat specifications]
■Material: PVC
■Capacity: 4 people ■Loading capacity: 500kg
■Full length x full width x tube diameter: 300 x 150 x 42cm
■Inboard length: 182cm
■Inner width: 73cm
■Total weight: 34kg
■Bottom type: High pressure air floor ■Maximum horsepower: 10HP
■1 year warranty included

[Standard accessories] 7-piece set aluminum oars x 2 (pair),
carry case,
foot pump,
Aluminum bench (seat board) x 2,
Bench mat x 1,
SAVIVE original bucket,
repair kit

[Note regarding the outboard motor stand]
*The hull air stand requires assembly.
*The plate color of the transom holder varies depending on the arrival time. Please note.

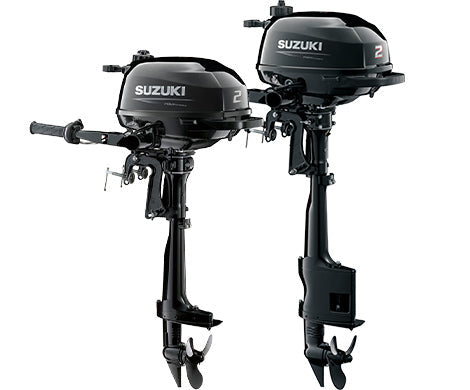

●Equipped with a built-in fuel tank with a capacity of 1 liter. Compact and lightweight (14kg), it is easy to handle, transport, and store. High functionality and maneuverability are condensed into a compact body, including the adoption of a water cooling system with high cooling efficiency, a twist grip type throttle, and a large carrying handle.

●Equipped with a highly efficient single-cylinder OHV 4-stroke engine. The 1.49kW (2PS) of power delivered from the 68cm3 displacement is useful for powering small inflatable boats and tender boats. It boasts a high level of functionality, including the adoption of a highly reliable water cooling system, smooth and quiet rotation, a built-in 1 liter fuel tank that can run at full throttle for about an hour with a full tank, and a recoil starting system that does not require a battery. Masu.

●A twist-grip type throttle is used, as well as 360-degree full-turn steering and FN (forward-neutral) shifting, allowing for precise control. In addition, the emergency stop switch, which stops the engine when the cord tied around the wrist is pulled out of the switch on the main body, is attached to the handle so that the cord does not get in the way when rotating the main body to maneuver the vessel.

●Equipped with a large integrated carrying handle that is easy to grip. Easy to tilt up and carry. Additionally, you can easily check the oil level with the oil level indicator located on the side of the engine.

*Outboard motors are shipped from the factory without engine oil. Before using your outboard motor, be sure to fill it with engine oil.
*Recommended engine oil: Suzuki genuine "Exter Oil" 0.38L (up to the upper limit level) API classification: SG, SH, SJ, SL / SAE standard: 10W-40

■Total length x width x height: 437 x 262 x 962mm
■Transom height: 435mm (Transom: S)
■Weight: 14kg
■Engine type: 4-stroke single cylinder
■Maximum output: 1.49kW[2ps]/5000rpm
■Full-open rotation range: 4500 to 5500 rpm
■Number of cylinders x inner diameter x stroke: 1 x 48mm x 38mm
■Total displacement: 68 cubic centimeters
■Exhaust method: Underwater exhaust
■Cooling method: Direct water cooling (rubber impeller)
■Lubrication method: Forced lubrication (using oil pump)
■Starting method: Recoil starter (manual)
■Ignition method: Digital CDI
■Specified amount of gear oil: 70 cubic centimeters (70cc)
■Fuel used: Unleaded regular gasoline
■Fuel tank capacity: 0.9L (overhead tank)

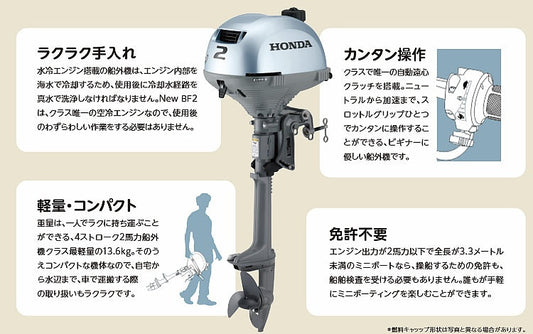

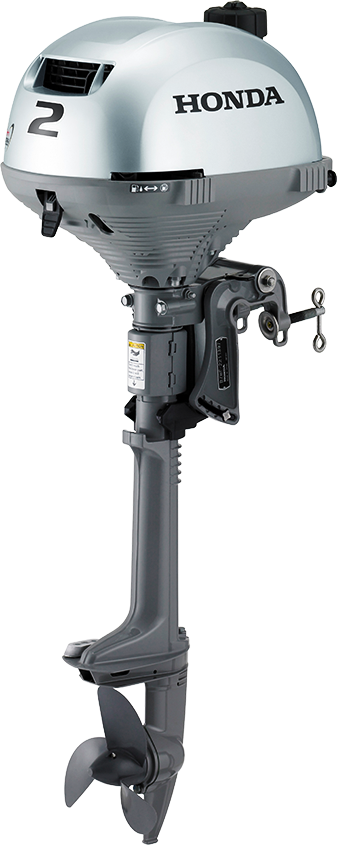

●Lightweight, compact and easy to handle. Equipped with the only air-cooled engine in its class, cleaning up is easy.

●Honda's unique air cooling system that does not require washing the inside of the engine.

●Lightweight and compact, top level in its class.

●Using the only automatic centrifugal clutch in its class, the boat can be maneuvered from neutral to acceleration without shifting.

●Equipped with a 1.1L fuel tank, the largest capacity in its class. Allows for comfortable cruising.

[Main specifications]
●Institution name: BF2DH
●Type: SCHJ
●Engine type: Air-cooled 4-stroke OHV single cylinder
●Total displacement: 57cm3
●Bore x straw: 45 x 36mm
●Rated output: 1.47kW (2PS)/6,000rpm
●Steering method: short tiller handle
●Starting method: manual
●Tilt method: Manual
-Total length x width x height: 412 x 285 x 956mm
●Dry weight (including propeller): 13.6kg

[Important]
*Engine oil is not included in the shipping state.
*Be sure to fill with engine oil before use.
*Use Honda genuine Ultra U general purpose (SAE10W-30) or SAE10-30 oil equivalent to SF/SG class in API classification.
*Engine oil capacity: Upper limit is 250ml, lower limit is 200ml.
