ホンダ船外機の純正部品です。
エンジンオイル交換時に併せて交換を推奨しています。

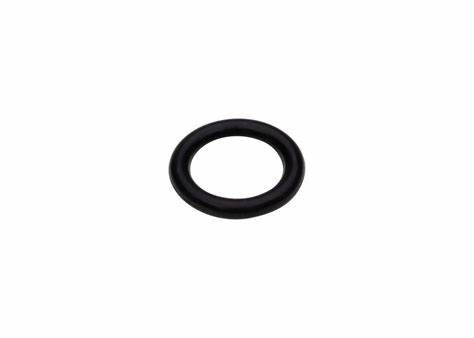

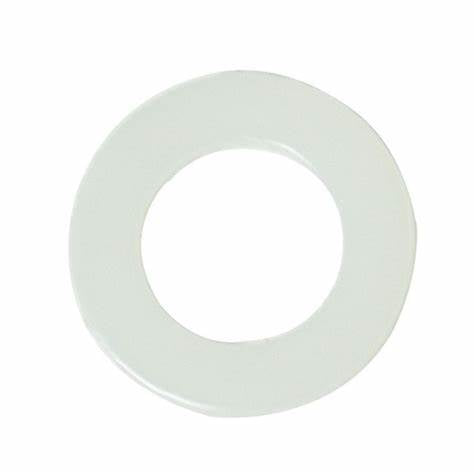

ホンダ船外機の純正部品です。
ギヤオイル交換時に併せて交換を推奨しています。

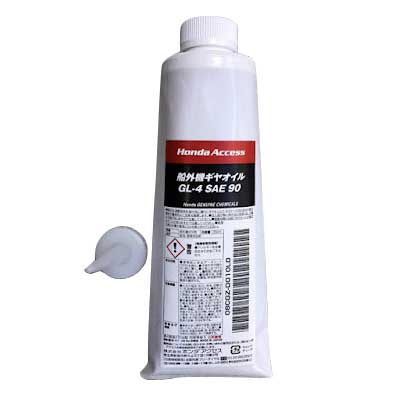

HONDA純正ギヤオイル

■第4類第4石油類
■危険等級3
■API分類：GL-4
■SAE 90

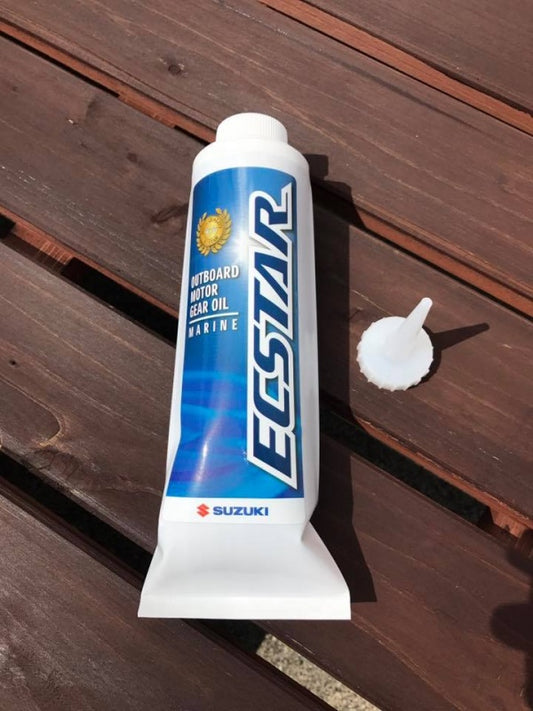

●SUZUKI outboard motor high bond gear oil 400ml 99000-22B22

●Special gear oil made for Suzuki outboard motors.

●It has good extreme pressure properties, high oil film strength, excellent water decomposition properties, and water resistance, and is effective in preventing abnormal wear and abnormal noise of various gears in the gear case.

●Class 4 petroleum

●Danger level 3

●Viscosity: SAE90

●API classification: GL-5

*Please note that the packaging may vary depending on the arrival time.

[Compatibility] Gear oil standard capacity
DF2: 70ml
DF5/5A/6A: 190ml
DF8A/9.9A: 250ml
DF9.9/15: 170ml
DF9.9B/15A/20A: 250ml
DF25(V2): 420ml
DF25A/30A: 330ml
DF25/30 (3 cylinders): 230mlL
DF40/50/40A/50A/60A: 610ml
DF60AV/60/70: 1050ml
DF70A/80A/90A: 850ml
DF90/100/100A/115/115A/140/140A: 1050ml
DF150/150TG/175/175TG/200A/200AP/200/225/250/250AP/300/300AP: 1100ml

●Lightweight, compact and easy to handle. Equipped with the only air-cooled engine in its class, cleaning up is easy.

●Honda's unique air cooling system that does not require washing the inside of the engine.

●Lightweight and compact, top level in its class.

●Using the only automatic centrifugal clutch in its class, the boat can be maneuvered from neutral to acceleration without shifting.

●Equipped with a 1.1L fuel tank, the largest capacity in its class. Allows for comfortable cruising.

[Main specifications]
●Institution name: BF2DH
●Type: SCHJ
●Engine type: Air-cooled 4-stroke OHV single cylinder
●Total displacement: 57cm3
●Bore x straw: 45 x 36mm
●Rated output: 1.47kW (2PS)/6,000rpm
●Steering method: short tiller handle
●Starting method: manual
●Tilt method: Manual
-Total length x width x height: 412 x 285 x 956mm
●Dry weight (including propeller): 13.6kg

[Important]
*Engine oil is not included in the shipping state.
*Be sure to fill with engine oil before use.
*Use Honda genuine Ultra U general purpose (SAE10W-30) or SAE10-30 oil equivalent to SF/SG class in API classification.
*Engine oil capacity: Upper limit is 250ml, lower limit is 200ml.

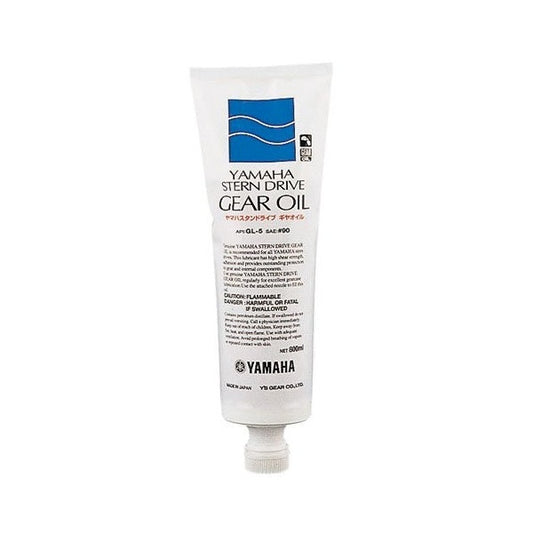

Gear oil ideal for stand drive gears that transmit high power.
Demonstrates excellent effectiveness in suppressing pitching that occurs in gear parts when used for long periods of time.
Enables longer gear life.

■Grade: GL-5 #90
■Danger class 3, class 4 petroleum

■Capacity: 800ml

[Contents] 800ml x 1
[Grade] GL-4 #90 High Point Oil
[Included] Tapered nozzle for oil injection

Effective in preventing abnormal wear and abnormal noise of each gear in the gear case.

Effective in preventing abnormal wear and abnormal noise of each gear in the gear case.

[Contents] 350ml x 1
[Included] Tapered nozzle for oil injection

■Category 4 Petroleum ■Danger class 3
■Viscosity: SAE90 ■Viscosity index: 100
■API classification: GL-4 ■Flash point 216℃
■Pour point -22.5℃
■Heavy viscosity 40℃/176.1, 100℃/16.75
■Hypoid oil

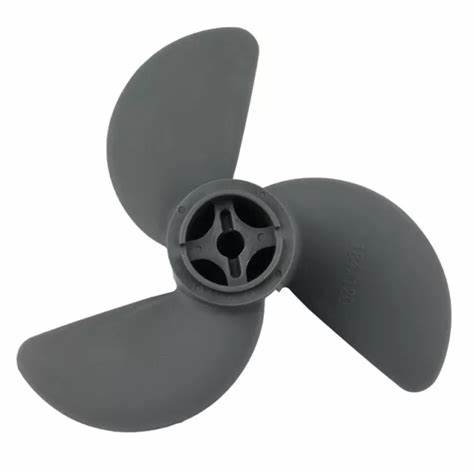

ホンダ船外機の純正部品です。
プロペラ交換時等に交換を推奨しています。

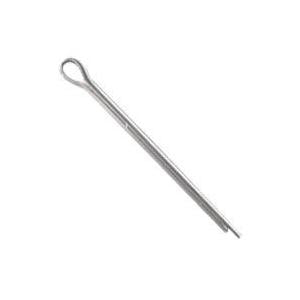

※シャーピン(58131-ZV0-000)・割りピン(94201-30402)は付属しません。

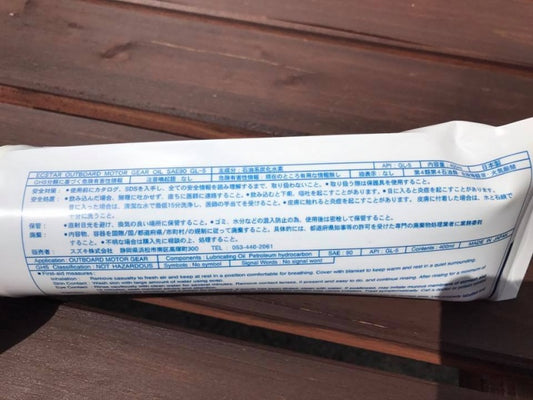

●SUZUKI outboard motor high bond gear oil 400ml 99000-22B22

●Special gear oil made for Suzuki outboard motors.

●It has good extreme pressure properties, high oil film strength, excellent water decomposition properties, and water resistance, and is effective in preventing abnormal wear and abnormal noise of various gears in the gear case.

●Class 4 petroleum

●Danger level 3

●Viscosity: SAE90

●API classification: GL-5

*Please note that the packaging may vary depending on the arrival time.

[Compatibility] Gear oil standard capacity
DF2: 70ml
DF5/5A/6A: 190ml
DF8A/9.9A: 250ml
DF9.9/15: 170ml
DF9.9B/15A/20A: 250ml
DF25(V2): 420ml
DF25A/30A: 330ml
DF25/30 (3 cylinders): 230mlL
DF40/50/40A/50A/60A: 610ml
DF60AV/60/70: 1050ml
DF70A/80A/90A: 850ml
DF90/100/100A/115/115A/140/140A: 1050ml
DF150/150TG/175/175TG/200A/200AP/200/225/250/250AP/300/300AP: 1100ml
