Collection: Anchor chain connector roller

Material: SCS13 (equivalent to SUS304) Spring, pin, latch = SUS304

Size: d=8 L=120 B=62 S=18 D=29

Weight = 180g

Working load = 100Kg

[Product specifications]
◆Material: SUS304

◆Weight=88g

*The price is for one piece.

Material: Main body = SUS304

Size: d=10 L=80 L1=60 B=44 B1=24 S=18

Weight: 100g

Working load: 70Kg

Material: Main body = SUS304

Size: L=72 L1=55 B=39 B1=22 S=18 T=7

Weight: 60g

Working load: 50Kg

Material: SCS14 (equivalent to SUS316)

Size: L=100 B=16 P=30 H=24 Hole diameter 5mm

Weight: 120g

[Product specifications]
◆Material: SCS13 (equivalent to SUS304)

◆Size: d=11.5 d1=5.8 L=120 L1=50 B=13.5 S=47.5 D=72 Weight=142g

*The price is for one piece.

Material: Main body = SCS13 (equivalent to SUS304)

Size: d=8 L=56 L1=40 B=32 B1=16 B2=28 T=8 D=16

Thread diameter: W5/16

Weight: 80g

Working load: 220kg

Material: Main body = SCS13 (equivalent to SUS304)

Size: d=12 L=84 L1=60 B=48 B1=24 B2=42 T=12 D=24

Thread diameter: W1/2

Weight: 250g

Working load: 400kg

Material: Main body = SUS304

Size: d=10 L=110 L1=90 B=48 B1=28 S=13

Weight: 140g

Working load: 150Kg

[Product specifications]
◆Material: SUS304

◆Length: 30m

◆Size: 6 d=6 L=43 B=21 Weight 20.1kg Reference working load=270Kg

◆It is a stainless steel anchor chain that is resistant to rust.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 15m
■Wire diameter: 8mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 15m
■Wire diameter: 6mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 10m
■Wire diameter: 8mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 10m
■Wire diameter: 6mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 2m
■Wire diameter: 11mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 2m
■Wire diameter: 8mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material: Steel (galvanized)
■Total length: 2m
■Wire diameter: 6mm
...
■Attachments:
Both ends: round link x 1 each
One side: Steel galvanized shackle x 1 piece

Anchor chain made of galvanized steel.

[Product specifications]
■Material
Body: Aluminum
Roller: vinyl chloride
■Size: Width 312x Depth 157x Height 141mm

A roller that smoothes the movement of ropes and chains when raising and lowering the anchor, and also prevents damage to the hull.
It has rollers in the horizontal and vertical directions, so it can be raised and lowered stably and smoothly even if the rope swings from side to side.
Weather resistance has been strengthened by adding titanium to AC7A aluminum, which is resistant to corrosion and rust.

[Product specifications]
■Material
Body: Aluminum
Roller: vinyl chloride
■Size: Width 265x Depth 141x Height 119mm

A roller that smoothes the movement of ropes and chains when raising and lowering the anchor, and also prevents damage to the hull.
It has rollers in the horizontal and vertical directions, so it can be raised and lowered stably and smoothly even if the rope swings from side to side.
Weather resistance has been strengthened by adding titanium to AC7A aluminum, which is resistant to corrosion and rust.

[Product specifications]
■Material
Body: Aluminum
Roller: vinyl chloride
■Size: Width 210x Depth 114x Height 99mm

A roller that smoothes the movement of ropes and chains when raising and lowering the anchor, and also prevents damage to the hull.
It has rollers in the horizontal and vertical directions, so it can be raised and lowered stably and smoothly even if the rope swings from side to side.
Weather resistance has been strengthened by adding titanium to AC7A aluminum, which is resistant to corrosion and rust.

[Product specifications]
■Material
Body: Aluminum
Roller: vinyl chloride
■Size: Width 158x Depth 87x Height 98mm

A roller that smoothes the movement of ropes and chains when raising and lowering the anchor, and also prevents damage to the hull.
It has rollers in the horizontal and vertical directions, so it can be raised and lowered stably and smoothly even if the rope swings from side to side.
Weather resistance has been strengthened by adding titanium to AC7A aluminum, which is resistant to corrosion and rust.

[Product specifications]
■Material: Stainless steel
■Total length: 2m
■Wire diameter: 11mm
■Chain inner diameter: 43 x 14mm
...
■Accessories: Stainless steel shackle x 2

A stainless steel anchor chain that is rust resistant and has a beautiful luster.

[Product specifications]
■Material: Stainless steel
■Total length: 2m
■Wire diameter: 8mm
■Chain inner diameter: 38 x 13mm
...
■Accessories: Stainless steel shackle x 2

A stainless steel anchor chain that is rust resistant and has a beautiful luster.

[Product specifications]
■Material: Stainless steel
■Total length: 2m
■Wire diameter: 6mm
■Chain inner diameter: 30 x 10mm
...
■Accessories: Stainless steel shackle x 2

A stainless steel anchor chain that is rust resistant and has a beautiful luster.

[Product specifications]
■Material: Stainless steel
■Compatible with: Wire diameter 6-8mm chain

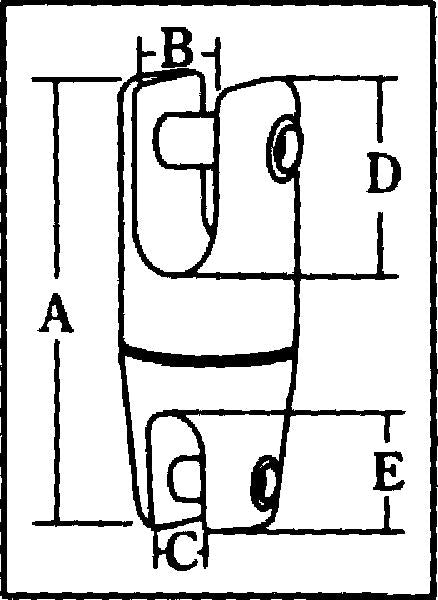

■Size (see image 2):
A:84mm B:15mm C:8mm D:36mm E:24mm

■Load capacity: 850kg
■Swiveling structure

Used instead of a shackle when connecting the anchor and chain.
Especially when using an anchor roller, etc., the anchor can be rolled up smoothly.
Prevents chains and ropes from twisting.

[Product specifications]
■Material
Body: Aluminum
Roller: vinyl chloride
■Size: Width 140x Depth 69x Height 71mm

A roller that smoothes the movement of ropes and chains when raising and lowering the anchor, and also prevents damage to the hull.
It has rollers in the horizontal and vertical directions, so it can be raised and lowered stably and smoothly even if the rope swings from side to side.
Weather resistance has been strengthened by adding titanium to AC7A aluminum, which is resistant to corrosion and rust.
