Collection: Sliding rail/rear ladder

It is sold cut into 1m lengths considering the maximum shipping size.
If you paste it on the bank of a trailer, you can load and unload jets, boats, etc. by sliding it.

[Same color/size] Length approx. 1m x width 45mm (top side 40)mm x 4 pieces

As this is an overseas manufactured product, color unevenness and texture may vary depending on arrival time and individual differences. Small scratches occur during the manufacturing and transportation process, and are not subject to product complaints.
Due to the shape of the product, it cannot be bundled with other products.
Up to 2 sets (8 pieces) of the same item can be shipped in one package.

When attached to the bank of a trailer, it can be easily slid to load and unload jets and boats.

■Material: Polyethylene ■Total length: 13300mm
■Full width: 29mm

■Set contents Blue rail 133cm x 4 pieces

[Notes about the product]
●As this is an overseas manufactured product, the color and texture may differ depending on the time of arrival and the individual product.
●Please note that small scratches occur during the manufacturing process and are not eligible for return or exchange.

[Kit contents]

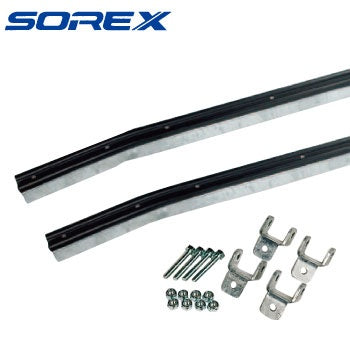

2 steel banks for SOREX, 4 mounting brackets ●Drilling is required for installation.

[Request when ordering]
Regarding product arrangement, the following will be required.
Please enter the following information in the requests/remarks column when ordering.
●Trailer model name ●Trailer year ●Stamp number (number stamped on the front of the trailer)
Example: Notation like [Oka] ~ [Oka]←

[Information regarding delivery]
-Due to the shape of the product, it cannot be bundled with other products.
・Cash on delivery is not possible as this item is shipped directly from the manufacturer.
・Items are 1 piece.

[Payment] Advance transfer/card payment only

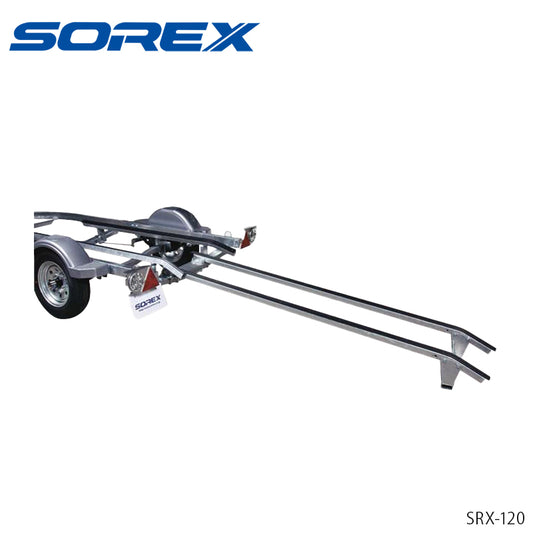

●Steel slide retractable slope rail. When not in use, it can be easily stored inside the bank.

●Loading and unloading of PWC is possible without submerging the trailer in water. It can reduce corrosion of trailer tail lights, etc., and damage to undercarriage parts, such as hubs.

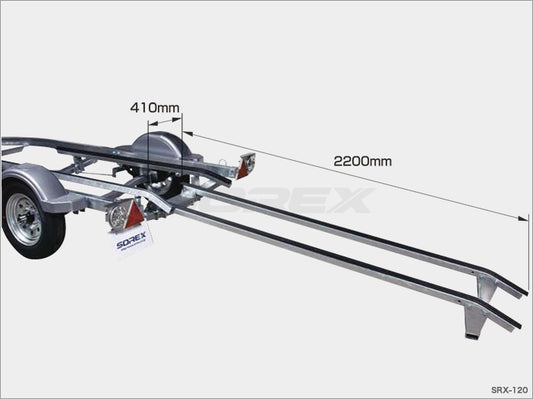

■Rail height 2,200mm, width 410mm
■Maximum load 500kg
*It may not be possible to install depending on the vehicle model.

[Information regarding delivery]
-Due to the shape of the product, it cannot be bundled with other products.
・Cash on delivery is not possible as this item is shipped directly from the manufacturer.
・Shipping fee is for 1 piece.

Trailer slope rail, compatible with rail width 350 mm (rail center to center)

By installing a trailer slope rail, the JET can be raised and lowered smoothly, and the tail lamp, hose, etc. are not submerged in water, which prevents damage to the trailer and makes it last longer.
When not in use, it can be stored between the trailer and the PWC body.
To install, simply attach the rail guide (included) to the trailer body.

●By installing a trailer slope rail, you can smoothly raise and lower the boat, and the tail light, axle, etc., will not be submerged in water, preventing damage to the trailer and extending its life.
●Made of durable steel (iron galvanized) and 50 x 50 square pipe, so you don't have to worry about pulling it up with a winch.
(Please have 2 to 3 people support you when pulling it up. If you force it up using only the winch, it may cause damage to the winch.)
●When not in use, it can be easily stored between the trailer and the PWC body.
(Please note that depending on the boat or trailer, it may not be possible to store it, and depending on the boat, the bottom may hit the rail guide part when loading it.)
A safe stainless steel round pipe is used for the handle.
●For processing on the trailer side, simply attach the rail guide to the rear frame of the trailer using U bolts. (There is an installation confirmation at the end of the page)
*Please note that if the frame on the trailer side to be installed is low, the rear end of the slope rail will be close to the ground, which is dangerous.

Q. Is it possible for the "Rail Guide Section" to fit between the trailer's bank rails and be attached to the rear end frame?
The rail guide part size is 420 mm in total horizontal length.
The U bolt size for installation is 112 mm effective width and 76 mm depth.
Especially if the R shape is quite deep on the rear end frame, the U bolt may not fit.
In that case, it is possible if you prepare a larger U-bolt etc. separately.
*If installed on a frame with a tight radius, the bottom of the boat may hit the rail guide.
In that case, raise the bank rail and adjust. We recommend that you check the size of the rail guide parts using a dummy in advance.
*If there is a license plate etc. on the mounting part, it is necessary to move the plate etc. (Other than public roads)
*Depending on the compatibility of the boat and trailer, it may not be possible to store the rail.
The space for the rail to pass through after installation requires a gap of approximately 85 mm in height and 71 mm in width.

[About payment and packaging]
For products shipped directly from the manufacturer
●Prepayment (bank transfer) only. (Cash on delivery not available)
●Cannot be bundled

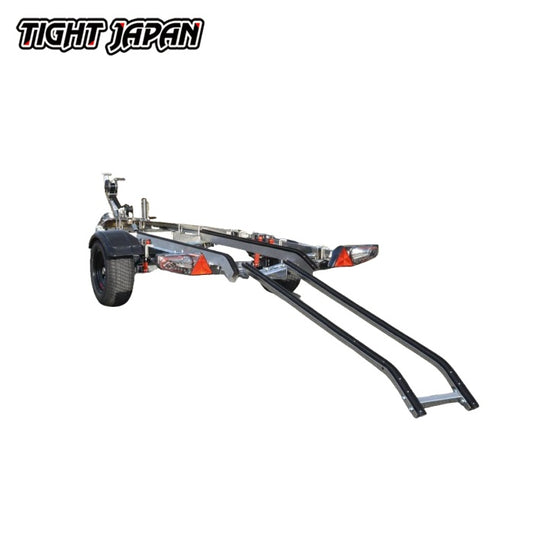

You can easily load and unload the important parts of the trailer, such as the axles and electrical components, without submerging them in water. The newly designed mount part for Lopros uses resin parts to improve operability when sliding, and is lightweight and compact, allowing for a wide variety of customization combinations.

After the rear ladder is stored, the rear part is secured with a pin for safety.

■Common for light and Lopros ■Made of steel ■Designed exclusively for Max trailers

【please note】
■Cannot be installed on 2-boat and regular cars.
■Adjustment may be required for wood rail specifications.

[Information regarding delivery]
・Due to the shape of the product, it cannot be bundled with other products. ・Cash on delivery is not possible as it is shipped directly from the manufacturer. ・Shipping fee is for each item.

●A bracket for adjusting the bank angle on flat rails.
●Material: Stainless steel
*1 set (for 1 boat: 4 locations) Mounting bolts included

●A bracket for adjusting the bank angle on flat rails.
●Material: Steel
*1 set (for 1 boat: 4 locations) Mounting bolts included

Due to the large size of the item, the following "area shipping fee" will be charged separately.

[Product specifications]
■For small cars only ■Sales unit: 1 piece ■Total length: 2000mm
■Accessories: Mounting bolts

[Information regarding delivery]
-Due to the shape of the product, it cannot be bundled with other products.
・Cash on delivery is not possible as this item is shipped directly from the manufacturer.
・Shipping charges are for each item.

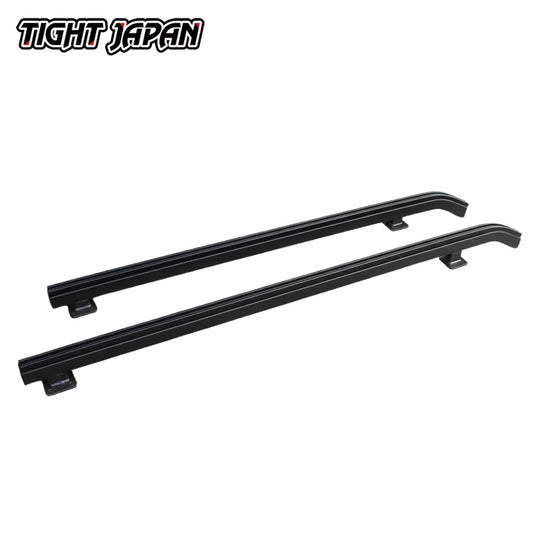

[Product specifications]
■Sold in units of one.
■Total length: 2000mm
■Mounting hole pitch: 1500mm
■Accessories: Mounting bolts

[Information regarding delivery]
-Due to the shape of the product, it cannot be bundled with other products.
・Cash on delivery is not possible as this item is shipped directly from the manufacturer.
・Shipping charges are for each item.

Due to the large size of the item, shipping charges will be incurred.

[Product specifications]

■Sold in units of one.
■Total length: 1830mm
■Mounting hole pitch: 1290mm
■Accessories: Mounting bolts

[Information regarding delivery]
・Due to the shape of the product, it cannot be bundled with other products. ・Cash on delivery is not possible as it is shipped directly from the manufacturer. ・Shipping charges are for each item.
*Due to large items, shipping charges will be incurred.

[Product Specifications]

■Sold in units of one bottle.
■ Total length: 2000mm
■ Mounting hole pitch: 1500mm
■Accessories: Mounting bolts

[Disclaimer]
The color of the color rail may change depending on the arrival time.

[Shipping Information]
・Due to the shape of the product, it cannot be bundled with other products. ・As this is a product shipped directly from the manufacturer, cash on delivery is not available.

[Product specifications]

■Sold in units of one.
■Total length: 1830mm
■Mounting hole pitch: 1290mm
■Accessories: Mounting bolts

[Information regarding delivery]
-Due to the shape of the product, it cannot be bundled with other products.
・Cash on delivery is not possible as this item is shipped directly from the manufacturer.
・Up to 2 items can be shipped at once.
