Collection: wiring parts

Product name: Wiring kit
Product number: SRX-006

This is a wiring kit for lights on the tow vehicle side.

[Kit contents]
■Wiring socket ■Wiring ■Connection tap x 6 pieces

●Tight Japan MAX TRAILER 7-pole harness connector.
●Many types of connectors can be replaced with one touch.
■Material: Aluminum

■Towing vehicle side 7-pin type wiring connector kit for lights

■The wiring is a little longer than the conventional kit, and a wiring cover is included.

[Kit contents]
Wiring socket, 2m wiring, 7 connection taps, wiring cover

4Pin
The terminal in the photo is a set of 4 pins each for male and female.
This is the same type of coupler used by KAWASAKI and YAMAHA.

●Tight Japan MAX TRAILER 7-pole harness connector.
●Many types of connectors can be replaced with one touch.
■Material: Aluminum

■6-core electrical wiring
■Please use it for wiring hitch members, etc.
■Type: 6 poles
■Total length: 2m

■6-core electrical wiring
■Please use it for wiring hitch members, etc.
■Type: 6 poles
■Total length: 2m

●Tight Japan MAX TRAILER 7-pole harness connector.
●Many types of connectors can be replaced with one touch.
■Material: Aluminum

Product name: Wiring socket (single item)
Product number: SRX-007

This is a single wiring socket for the towing vehicle side lights.
*Wires and relay connectors are not included.

Product name: Wiring for wiring kit (single item)
Product number: SRX-006-H

This is a single item for wiring and relay connector for towing vehicle side lights .
*Wiring socket is not included.

■Wiring ■Connection tap x 6 pieces

This is a relay kit for both 12V and 24V that can respond to problems with the towing vehicle's lights when connecting a trailer.

*We may not be able to respond depending on the type of towed vehicle or the condition.

【please note】
・This product does not come with connection terminals or extension wiring. Please prepare connection terminals, wiring, etc. separately.
- When extending the wiring, be sure to use a wire that is 0.75 square millimeters or larger.

Used when installing electrical equipment or changing wiring.
Superior waterproofness compared to conventional products.

[Quantity] Male/female x 10 each

5 sets each of male and female pins.

This is the same waterproof coupler pin used by KAWASAKI, YAMAHA, etc.

[Quantity] 2 pieces
This is a pin blind seal.

6Pin
The terminal in the photo is a set of 6 male and female pins.
This is the same type of coupler used by KAWASAKI and YAMAHA.

3Pin
The terminal is a set of 3 male and female pins each.
This is the same type of coupler used by KAWASAKI and YAMAHA. *

Specifications: 3Pin
Color: black triangle

The terminal in the photo is a set of 3 male and 3 female pins.
This is the same type of coupler used by KAWASAKI and YAMAHA.

3Pin

The terminal in the photo is a set of 3 male and 3 female pins.
This is the same type of coupler used by KAWASAKI and YAMAHA.

2Pin

The terminal in the photo is a set of 2 male and 2 female pins.
This is the same type of coupler used by KAWASAKI and YAMAHA.

This is the same type of connector used for genuine wiring such as KAWASAKI.

■Coupler: 1 set of female and male
■Pins: 4 each

This is the same type of connector used for genuine wiring such as KAWASAKI.

[Quantity] Male, female x 10 each set

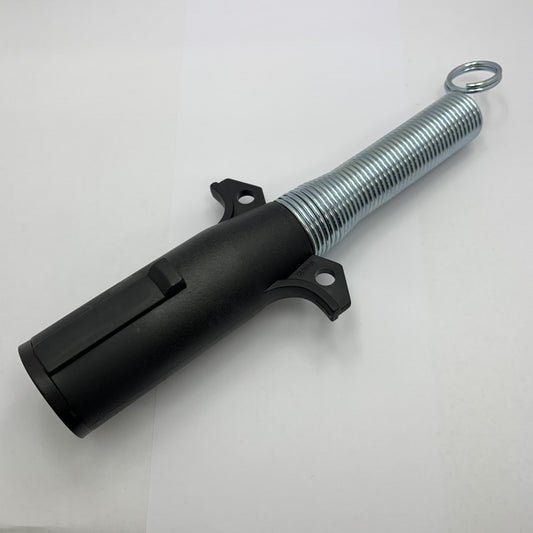

■7-pin type wiring socket for lights on the towing vehicle side

■This item is made of durable reinforced plastic instead of the conventional aluminum part.

■Made of reinforced plastic, it is inexpensive but has sufficient strength and is also extremely lightweight.

■Material (body): Reinforced plastic

■Compatible with: TIGHTJAPAN, SOREX, SUNTREX

*Wiring sold separately

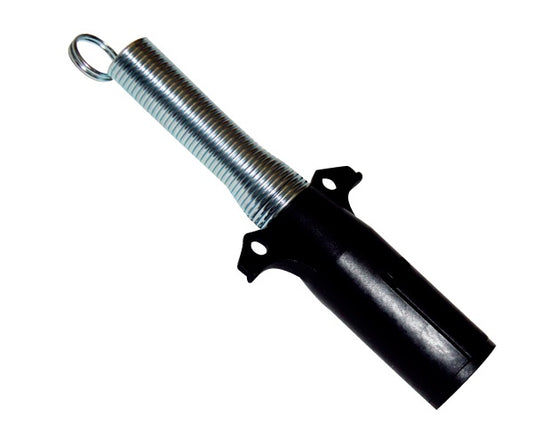

■Trailer side 7-pin type wiring socket for lights

■This item is made of durable reinforced plastic instead of the conventional aluminum part.

■Made of reinforced plastic, it is inexpensive but has sufficient strength and is also extremely lightweight.

■Material (body): Reinforced plastic

■Compatible with: TIGHTJAPAN, SOREX, SUNTREX

*Wiring sold separately

■6-core electrical wiring set
■Please use it for wiring hitch members, etc.

【set content】
6-pole wiring 2m x 1
Single line 2m x 1
Interrupt terminal x 6

■6-core electrical wiring
■Please use it for trailer wiring, etc.
■Type: 6 poles
■Total length: 10m

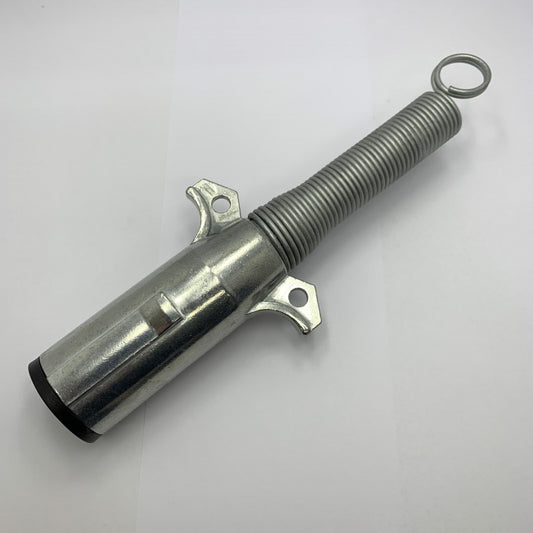

■7-pin type wiring socket for lights on the towing vehicle side

■Material: Aluminum die-cast

■Compatible with: TIGHTJAPAN, SOREX, SUNTREX

*Wiring sold separately

■Trailer side 7-pin type wiring socket for lights

■Material: Aluminum die-cast

■Compatible with: TIGHTJAPAN, SOREX, SUNTREX

*Wiring sold separately

●Tight Japan MAX TRAILER 7-pole harness connector.
●The wiring is in a call shape, making it very easy to use.
■Material: Aluminum

●Tight Japan MAX TRAILER 7-pole harness connector (for EX).
●The wiring is in a call shape, making it very easy to use.
●The wiring is made longer than 0106-07.
■Material: Aluminum

When setting it in the connector, ensure that it is installed on the screw to prevent non-electricity.

[Quantity] 6 pieces 1 set

When setting it in the connector, ensure that it is installed on the screw to prevent non-electricity.

[Quantity] 6 pieces 1 set

■6-core electrical wiring
■Please use it for wiring hitch members, etc.
■Type: 6 poles
■Total length: 2m

●Tight Japan genuine product.

■Material: Black resin

●Tight Japan genuine product.

■Material: Aluminum
