Collection: Bilge pump/switch/surhull

●Machined aluminum
●Cord length: 3m

It can be installed anywhere within reach from the handle grip.
When used in conjunction with UNLIMITED light tension lever (product number: UL001, UL039, UL33001), ON/OFF operation can be performed while operating the throttle.

[Disclaimer] Please note that the color of the switch may vary depending on the shipping date.

UL015SL Silver
UL015BK Black
UL015GR Green
UL015BL Blue

●A freely bendable bellows hose that connects the bilge pump and the Suruhal.

●Lightweight corrugated hose that does not collapse even when bent when handling.

●Can be easily cut with a cutter.

[Product specifications]
■Material: Polyethylene
■Full length: approx. 100cm
■Hose diameter: 19.0mm

●This is Seaflo's manual bilge pump.

●Can be activated using a switch panel or float switch (sold separately).

●Equipped with a removable strainer, so there is no chance of sucking in large particles. Also, cleaning the pump is easy by removing the strainer part.

●Flow rate: 1100GPH (69.3 liters/min)

●Power supply: DC12V/5.0A

●Compatible with 1-1/8" (28.5mm) inner diameter hose

[Compatible models] YAMAHA 700SJ ('96~)
*For RULE bilge pump only

[Accessories] 8 rivets

[01689]:500[97033]:800[01608]1100 Stay when installing bilge pump.
Two bilge pumps can be installed.
Bilge pump holder [12-1116] can be installed in 45 degree increments.

●Draining water from boats without power sources, such as canoes and rubber boats,
It can also be used to drain water from pools and cages.

●A cordless pump that can be used with seawater or fresh water and uses batteries.

●Since it uses batteries (3 AA batteries), no wiring is required.

●Maximum discharge rate 12.6L/min
●Pumping height: 100cm
● Can be used continuously for about 5 hours (when using alkaline batteries)
●Dimensions: Height approx. 16.2x Diameter approx. 13.3cm
●Weight: Approximately 900g
●Hose length: 1m

[Product specifications]
■Type: White
■Material: Plastic
■Flange diameter: 55mm
■Maximum thickness when inserting flange: 31mm
■Total length: 65mm
■Compatible with hose inner diameter 28.5mm

●This is a through hole for discharging the bilge pump overboard.
●Made of plastic
*Sold as one Suruhal Straight. Hoses etc. are not included.

[Product specifications]
■Type: White
■Material: Plastic
■Flange diameter: 39mm
■Maximum thickness when inserting flange: 23mm
■Effective length of hose insertion part: 30mm
■Compatible with hose inner diameter 19mm

●This is a through hole for discharging the bilge pump overboard.
●Made of plastic
*Sold as one Suruhal L-type elbow. Hoses etc. are not included.

[Product specifications]
■Type: White
■Material: Plastic
■Flange diameter: 49mm
■Maximum thickness when inserting flange: 35mm
■Total length: 83mm
■Compatible with hose inner diameter 19mm

●This is a through hole for discharging the bilge pump overboard.
●Made of plastic

*Sold as one Suruhal Straight. Hoses etc. are not included.

[Product specifications]
■Material: Polyethylene
■Total length: approx. 60cm
■Hose diameter: 28.5mm

A freely bendable bellows hose that connects the bilge pump and the Suruhal.
A lightweight corrugated hose that won't collapse even when bent during handling.
It can be easily cut with a cutter.
The parts that can be cut and tightened with hose bands etc. are set every 30 cm.

[Product specifications]
■Material: Polyethylene
■Total length: approx. 60cm
■Hose diameter: 19.0mm

A freely bendable bellows hose that connects the bilge pump and the Suruhal.
A lightweight corrugated hose that won't collapse even when bent during handling.
It can be easily cut with a cutter.
The parts that can be cut and tightened with hose bands etc. are set every 30 cm.

[Product specifications]
■Type: Chrome
■Material: Plastic
■Flange diameter: 42mm
■Maximum thickness when inserting flange: 33mm
■Total length: 76mm
■Compatible with hose inner diameter 19mm

●This is a through hole for discharging the bilge pump overboard.
●The ABS resin has been treated with 5 layers of surface treatment to create a chrome finish that is scratch resistant and hard to peel off.
●Although the material is plastic, it looks like stainless steel and has a luxurious feel.

[Product specifications]
■Type: Chrome
■Material: Plastic
■Flange diameter: 48mm
■Maximum thickness when inserting flange: 32mm
■Total length: 84mm
■Compatible with hose inner diameter 28.5mm

●This is a through hole for discharging the bilge pump overboard.
●The ABS resin has been treated with 5 layers of surface treatment to create a chrome finish that is scratch resistant and hard to peel off.
●Although the material is plastic, it looks like stainless steel and has a luxurious feel.

[Product specifications]
■Type: White
■Material: Plastic
■Flange diameter: 61mm
■Maximum thickness when inserting flange: 43mm
■Effective length of hose insertion part: 37mm
■Compatible with hose inner diameter 28.5mm

●This is a through hole for discharging the bilge pump overboard.
●Made of plastic

*Sold as one Suruhal L-type elbow. Hoses etc. are not included.

[Product specifications]
■Material: Polyethylene
■Full length: approx. 1380cm
■Hose diameter: 28.5mm

A freely bendable bellows hose that connects the bilge pump and the Suruhal.
A lightweight corrugated hose that won't collapse even when bent during handling.
It can be easily cut with a cutter.
The parts that can be cut and tightened with hose bands etc. are set every 30cm.

【please note】
*Suruharu in the photo is not included.

[Product specifications]
■Material: Polyethylene
■Full length: approx. 1380cm
■Hose diameter: 19mm

A freely bendable bellows hose that connects the bilge pump and the Suruhal.
A lightweight corrugated hose that won't collapse even when bent during handling.
It can be easily cut with a cutter.
The parts that can be cut and tightened with hose bands etc. are set every 30 cm.

【please note】
*Suruharu in the photo is not included.

[Product specifications]
●Voltage: 12V
●Current: 3.4A
-External dimensions: 74 x 64 x height 111mm (dimensions in image)
●Drainage volume 50 liters/min
●Compatible with hose diameter 19.0mm
[Adaptation] Ideal for PWC (personal watercraft) and small boats

●Since it is a completely waterproof submersible pump, it is a convenient product for circulating and draining water while on board or during maintenance.
●When wiring, insert a 7.5A fuse (*) on the + cord side.
(*Fuse is not included with this product and must be purchased separately)

[Product specifications]
●Voltage: 12V
●Current: 1.6A
-External dimensions: 74 x 64 x height 99mm (dimensions in image)
●Displacement volume 31 liters/min
●Compatible with hose diameter 19.0mm
[Adaptation] Ideal for PWC (personal watercraft) and small boats

●Since it is a completely waterproof submersible pump, it is a convenient product for circulating and draining water while on board or during maintenance.
●When wiring, insert a 4A fuse (*) on the + cord side.
(*Fuse is not included with this product and must be purchased separately)

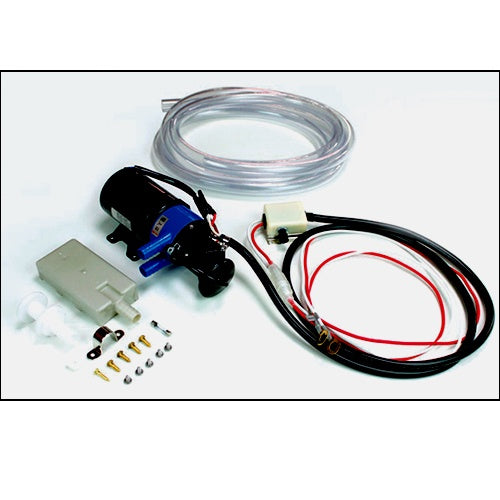

●Press the start switch for 2 to 4 seconds to automatically start suction and drainage, and when drainage is complete, the motor will automatically stop, so there is no need to worry about dry running.

●Voltage: 24V

●Press the start switch for 2 to 4 seconds to automatically start suction and drainage, and when drainage is complete, the motor will automatically stop, so there is no need to worry about dry running.

●Voltage: 12V

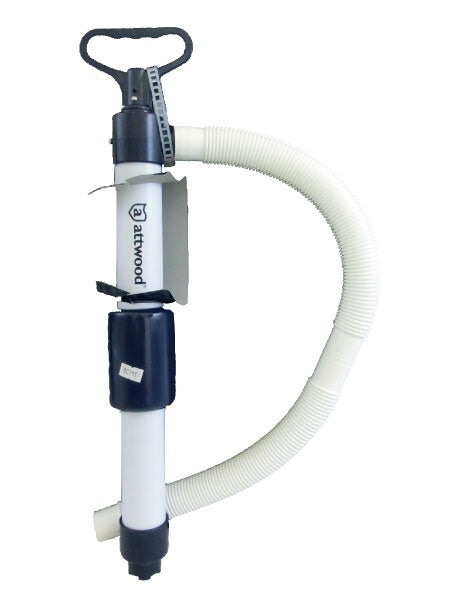

■Material (pump): ABS resin
■Size:
Total length: Approximately 53cm (including grip)
Pump body: approx. 44φmm
Hose length: approx. 60cm

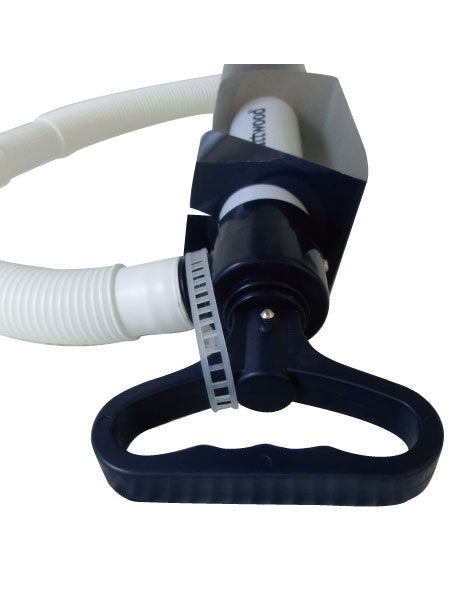

●It is a hand pump type bilge pump.
●Since it does not require electricity, it can be used anywhere.
●It is also effective for replacing water in aquariums such as tropical fish.

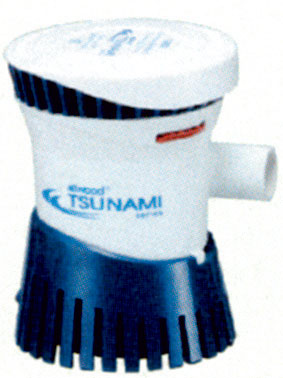

●This is a bilge pump made by ATTWOOD and has the feature of easy maintenance.

●During operation, water always flows around the motor and drains. This keeps the motor constantly cooled and increases its durability.

●This pump is designed to suppress the heat generated by the motor.

●The main body can be fixed by simply pushing it into the base filter, and can be easily removed while pressing the push button. Convenient for cleaning filters in narrow spaces.

●The motor is a cartridge type and can be easily removed by simply twisting the top, making it convenient for cleaning and other maintenance.

●Since the included cord is long (90 cm), there is no need to add parts that are easily corroded by soaking in water, reducing trouble.

●Power source: DC 12v, current: 3.5A, maximum pumping capacity: height 3.3m, lifting capacity: 75L (0m/min)

●Size: Base diameter 84φx Overall height 111x Discharge port diameter 28φmm

*[Note] Be sure to insert a 5A fuse (sold separately) between the pump and the power supply.

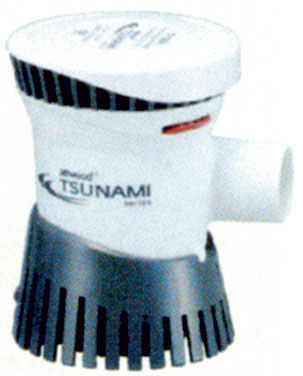

●This is a bilge pump made by ATTWOOD and has the feature of easy maintenance.
●This pump is designed to suppress the heat generated by the motor.
●During operation, water always flows around the motor and drains. This keeps the motor constantly cooled and increases its durability.

●The main body can be fixed by simply pushing it into the base filter, and can be easily removed while pressing the push button.
Convenient for cleaning filters in narrow spaces.

●The motor is a cartridge type and can be easily removed by simply twisting the top, making it convenient for cleaning and other maintenance.

●Since the included cord is long (90 cm), there is no need to add parts that are easily corroded by soaking in water, reducing trouble.

●Power source: DC 24v, current: 1.3A, maximum pumping capacity: height 4.2m, lifting capacity: 50L (0m/min)
●Size: Base diameter 84φx Overall height 111x Discharge port diameter 19φmm

【please note】
Be sure to insert a 2A fuse (sold separately) between the pump and the power supply.

●This is a bilge pump made by ATTWOOD and has the feature of easy maintenance.

●During operation, water always flows around the motor and drains. This keeps the motor constantly cooled and increases its durability.

●This pump is designed to suppress the heat generated by the motor.

●The main body can be fixed by simply pushing it into the base filter, and can be easily removed while pressing the push button. Convenient for cleaning filters in narrow spaces.

●The motor is a cartridge type and can be easily removed by simply twisting the top, making it convenient for cleaning and other maintenance.

●Since the included cord is long (90 cm), there is no need to add parts that are easily corroded by soaking in water, reducing trouble.

●Power source: DC 12v, current: 3.0A, maximum pumping capacity: height 4.2m, lifting capacity: 50L (0m/min)

●Size: Base diameter 84φx Overall height 111x Discharge port diameter 19φmm

*[Note] Be sure to insert a 4A fuse (sold separately) between the pump and the power supply.

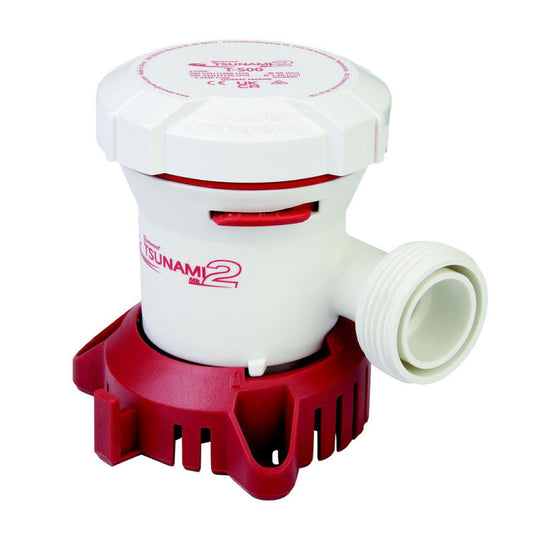

●Made by ATTWOOD

●The patented X-Air impeller's performance forces air bubbles trapped under the hose and pump out of the piping, preventing seizures caused by the pump running dry.
●This manual bilge pump is the easiest to install and maintain.
●40% more protection against water ingress and electrolysis compared to the previous model TSUNAMI.
●You can use the mount as is with this model even with pumps from other companies.

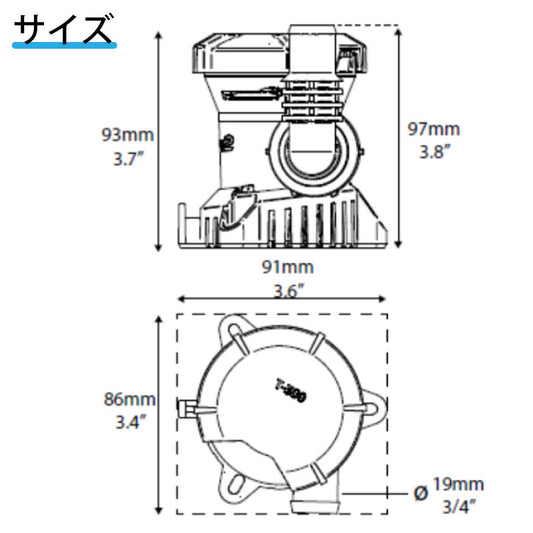

【specification】
・T500 12V
・Maximum discharge/min: 18.2 liters ・Fuse used: 3Amp
・Hose diameter: 19mm (3/4 inch)
・Recommended boat length: ~18ft

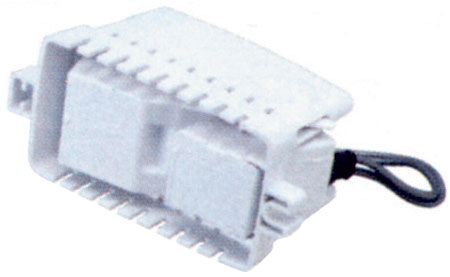

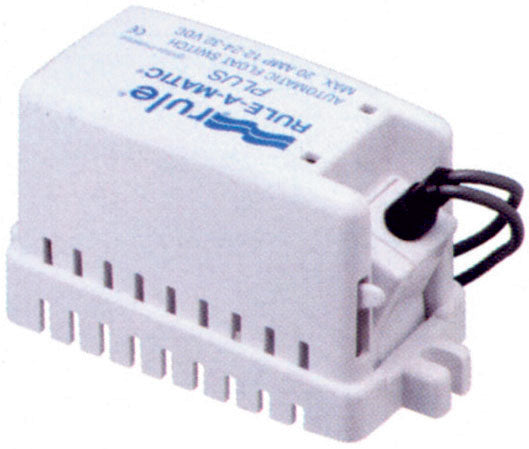

●The float type switch for the bilge pump is now equipped with a guard to prevent malfunction due to dirt, etc.

●When the water level is high, the float floats and conducts, and when the water level drops, it automatically disconnects.

●With lever for operation text

●Compatible with bilge pumps with DC12 to 32V and up to 20Amp.

-Base size 64x133mm, total height 73mm

[Product specifications]
■Type: Chrome
■Material: Plastic
■Flange diameter: 48mm
■Maximum thickness when inserting flange: 39mm
■Effective length of hose insertion part: 34mm
■Compatible with hose inner diameter 28.5mm

●This is a through hole for discharging the bilge pump overboard.
●The ABS resin has been treated with 5 layers of surface treatment to create a chrome finish that is scratch resistant and hard to peel off.
●Although the material is plastic, it looks like stainless steel and has a luxurious feel.

[Product specifications]
■Type: Chrome
■Material: Plastic
■Flange diameter: 42mm
■Maximum thickness when inserting flange: 30mm
■Effective length of hose insertion part: 30mm
■Compatible with hose inner diameter 19mm

●This is a through hole for discharging the bilge pump overboard.
●The ABS resin has been treated with 5 layers of surface treatment to create a chrome finish that is scratch resistant and hard to peel off.
●Although the material is plastic, it looks like stainless steel and has a luxurious feel.
