Collection: battery

[Compatible models]
KAWASAKI Jet Ski ALL Model
YAMAHA Marine Jet ALL model
SEADOO 4-stroke model (2018 or later) / SPARK(※)
*'18 -'20 RXP-X / '18-20: Not compatible with all GTI, GTR / '16-'17 SD models.
*Please use 30 for 4-stroke models up to 2015.

【compatibility】
■Yuasa:
YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW,
YTX20H, YTX20HL, YTX20HL-PW,
YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2,
YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX,
GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL,YTX20L-BS,YB16CL-B
■DEKA: ETX16, ETX16L, ETX20, ETX20L
■ODYSSEY: PC535, PC625

【Product Specifications】
MBTX20U
■Size (mm): L:175 W:87 H:155
■Spacer (mm): Bottom: 20mm Side: 13mm
■Voltage (V): 12V
■Cold cranking ampere (CCA): 310 A
■Capacity (10HR) 21 Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

[PWC compatible model] SEA-DOO 4-stroke (~2015) *SPARK excluded

【compatibility】
■Yuasa:
Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A,
YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW,
YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030,YB30CL-B
■DEKA: ETX30L, ETX30LA, ETX30
■ODYSSEY: PC925 (Side Mounted)

【Product Specifications】
MBTX30U
■Size (mm): L:166 W:126 H:175
■Spacer (mm): Bottom 17mm
■Voltage (V): 12 V
■Cold cranking ampere (CCA): 385A
■Capacity (10HR): 32Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

■Shipping to Okinawa Prefecture and remote islands in each prefecture is not possible.

[Compatible models]
KAWASAKI KAWASAKI *Excluding 550/650(-96) and 800X-2
SEA-DOO 4 stroke (16-) SPARK Spark

■Ready-to-use battery
■If the product is at low temperatures or has not been used for a long period of time, please charge it for 1 to 2 hours before using it.
*You can use it for a long time by constantly maintaining it so that it does not fall below 12.3V.
*For model compatibility, please refer to [Click here for compatibility table] below the image.

■Maintenance-free battery, no need to replenish fluid.
■Size: Width 175 x Height 88 x Height 155mm
■Voltage: 12V ■10 hour rate capacity: 18Ah ■Charging current: 1.8A
■Weight: 6.1KG ■Charged type
■Country of origin: China

[Features]
●Excellent self-discharge performance, long life, and startability
By making the electrolyte gel-like, we were able to improve the basic performance that is important for batteries.
It is a battery with high recovery ability and little natural discharge that occurs when left unused.
●It will not leak even if it falls sideways!
Since it is a sealed gel battery, there is no need to worry about fluid leaking even if it is placed on its side.
●Maintenance free
Since the product is sealed from the time of purchase, there is no need to inject/replenish battery fluid, so there is no need for hassle.
However, be careful about the charging current. "

*Initial charging time 1-2 hours
*Charging is required during low temperatures in winter or when the engine is insufficient to start because it has been manufactured for a long time.

[Compatible models]
KAWASAKI Jet Ski ALL Model
YAMAHA Marine Jet ALL model
BRP SEADOO 4-stroke model (2018 or later) / SPARK(※)
*Not compatible with all '18 -'20 RXP-X / '18: GTI, GTR / '16-'17 SD models.
*Please use 30 for 4-stroke models up to 2015.

【set content】
1.MOTOBATT battery (MBTX20U)
2.Battery charger (MBPDCWB)

【compatibility】
■Yuasa:
YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW,
YTX20H, YTX20HL, YTX20HL-PW,
YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2,
YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX,
GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL,YTX20L-BS,YB16CL-B
■DEKA: ETX16, ETX16L, ETX20, ETX20L
■ODYSSEY: PC535, PC625

【Product Specifications】
MBTX20U
■Size (mm): L:175 W:87 H:155
■Spacer (mm): Bottom: 20mm Side: 13mm
■Voltage (V): 12V
■Cold cranking ampere (CCA): 310 A
■Capacity (10HR) 21 Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

[PWC compatible model] SEA-DOO 4-stroke (~2015) *SPARK excluded

【compatibility】
■Yuasa:
Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A,
YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW,
YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030,YB30CL-B
■DEKA: ETX30L, ETX30LA, ETX30
■ODYSSEY: PC925 (Side Mounted)

【Product Specifications】
MBTX30U
■Size (mm): L:166 W:126 H:175
■Spacer (mm): Bottom 17mm
■Voltage (V): 12 V
■Cold cranking ampere (CCA): 385A
■Capacity (10HR): 32Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

■Shipping to Okinawa Prefecture and remote islands in each prefecture is not possible.

[Compatible models]
KAWASAKI KAWASAKI *Excluding 550/650(-96) and 800X-2

SEA-DOO 4 stroke (16-) SPARK Spark

■Since it is a ready-to-use battery, it can be used for about 30 minutes after injecting electrolyte.
■If the product is at low temperatures or has not been used for a long period of time, please charge it for 1 to 2 hours before using it.
*You can use it for a long time by constantly maintaining it so that it does not fall below 12.3V.
*For model compatibility, please refer to [Click here for compatibility table] below the image.

●Maintenance-free battery, no need to replenish fluid.
●Calcium battery ■Size: Width 175 x Height 88 x Height 155mm

[Compatible models]
YAMAHA / SEA-DOO PWC (excluding 4-stroke models)

■Since it is a ready-to-use battery, it can be used for about 30 minutes after injecting electrolyte.
■If the product is at low temperatures or has not been used for a long period of time, please charge it for 1 to 2 hours before using it.

*We recommend supplementary charging after purchase.
When replenishing battery fluid, be sure to use distilled water or a special replenisher, as tap water may cause problems.

[Adaptation]
Compatible with 16CLB and 20LBS.

●It has been praised for its excellent ability and durability with a self-discharge rate of approximately 1/7 or less, as well as its high safety.
●It is called the ultimate deep cycle battery because it is ultra-compact and ultra-light, and it provides 100% of the performance of vehicles and boats.
It is possible to withdraw it.
※※In order to fit this ultra-small and ultra-light battery into the battery case of the hull, several types of foam pads of different sizes are also included, so you can adjust and install it.

[Size] Width 166 x Height 86 x Height 155 (mm)
[Weight] 1,640g

●A 5-pin BMS port is used exclusively for LFX lithium ferrite batteries, which monitors and diagnoses each cell during charging to always maintain the best balance. It also has an optimal storage mode that allows you to use the LFX until the end of its life.

【specification】
◆Charging current: 2A peak Maximum output: 30W
◆Input voltage: 100V.250V, 50/60Hz, AC single phase Charging type: CC/CV Voltage: 14.4V terminal
◆Size: Height 11.4 x Width 11.4 x Height 3.8 (cm)
◆Weight: 720g (excluding cable)

【set content】
Shorai BMS01-JP charger body, AC input cord (for Japan), long cable for battery charging (12V), short cable for charging extension (12V), user guide

[Compatible models]
KAWASAKI KAWASAKI *Excluding 550/650(-96) and 800X-2

SEA-DOO 4 stroke (16-) SPARK Spark

■Since it is a ready-to-use battery, it can be used for about 30 minutes after injecting electrolyte.
■If the product is at low temperatures or has not been used for a long period of time, please charge it for 1 to 2 hours before using it.
*You can use it for a long time by constantly maintaining it so that it does not fall below 12.3V.
*For model compatibility, please refer to [Click here for compatibility table] below the image.

●Maintenance-free battery, no need to replenish fluid.
●Calcium battery ■Size: Width 175 x Height 88 x Height 155mm

[Compatible models]
KAWASAKI Jet Ski ALL Model
YAMAHA Marine Jet ALL model
SEADOO 4-stroke model (2016 or later) / SPARK(※)
*Please use 30 for 4-stroke models up to 2015.

[Compatibility] ■Yuasa
YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW,
YTX20H, YTX20HL, YTX20HL-PW,
YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2,
YB16LB, YB16LB2, YB16CB, YB16CLB

【Product Specifications】
MHTX20
■Size (mm): L:175 W:87 H:155
■Spacer (mm): Bottom: 20mm Side: 13mm
■Voltage (V): 12V
■Cold cranking ampere (CCA): 550A
■Capacity (10HR): 15Ah

Next-generation battery that follows the benefits of lithium-ion AGM batteries
Embedded PCB board inside, overcharge protection,
Over-discharge protection, cell balance, and temperature adjustment implemented in the battery itself

●Outstanding cranking power
●Excellent life cycle
●Cranking amperage that is not affected by the weather
●Uses quad terminal
*Since the main use is racing, please use it in an environment/model that can withstand high current.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

【compatibility】
■Yuasa: YTX9-BS, YT12A-BS, YTZ12S, YTZ14S
■DEKA: ETX9

[Product specifications] MBTX9U
■Size (mm): L:151 W:87 H:105
■Spacer (mm): Bottom 5mm
■Voltage (V): 12V
■Cold cranking ampere (CCA): 160A
■Capacity (10HR): 10.5Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

[Compatibility] Yuasa: YTX7L-BS, YTZ8V

[Product specifications] MBTX7U
■Size (mm): L:114 W:70 H:128
■Voltage (V): 12V
■Cold cranking ampere (CCA): 115A
■Capacity (10HR): 8Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

★Compatible car models
This is for reference only and does not guarantee compatibility. Please check the installed battery carefully before purchasing. Others are compatible.
■Honda (car name/model)
Gyro canopy / TA02
Cabiner 50 stand UP / AF33
Spacey 125 / BC-JF04
Cabina 90 / HF06
Broad 90 / HF06
CBX125F Custom / JC-11,12
NX125/JD09
XLR125/JD16
Jade(/S) / MC23
Nighthawk / MC26
Rebel CA250 / MC13
Hornet / MC31
XL Degree / MC31
Zerbis / MC25
AX-1/MD21
CBR250RR/MC22
CBR250R/MC19
GB250 Clubman / MC10
SPADA VT250/MC20
VTR250/MC33
V-twin Magna / MC29
V25 Magna S/MC29
REBEL / MC13
CBR400RR /NC29
HORNET(CB600)

■YAMAHA (Vehicle name/model)
Sero XT225/3RW
Sero XT225W / 3RW5,4JG1,4JG2
Serrow 225S/2RW3

■KAWASAKI (car name/model)
BALIUS / ZR250A
D-Tracker / KLX250-J
D-Tracker / LX250E
GPZ250R/EX250F
KLE250 Aned / KLE250-A/A1A
KLE250ES / KLE250ES
KLX250ES/LX250G,F
KLX250/LX250E
KR250(S) / KR250A<> Super Sherper / KL250G,H
ZZ-R250/EX250H5
Balios II/ZR250B

■SUZUKI (car name/model)
Glass Tracker / NJ48A
Jebel 250 / SJ44A
Intruder LC250 / VJ51A
Marauder 250/NJ48A
ST250Etype/NJ4AA
ST250/NJ4AA
DR250S SHEM,SHEN / SJ44A
Jebel 200/SH42A
WOLF200/NH11A
RG200 Gamma / NH11A
DF200E/SH42A
Bang Bang 200 / BA-NH41A
DJEBEL200 (Jovel) / SH42A
Marauder 125 / NF48A
Jebel 125 / SF44A

[PWC compatible model] SEA-DOO 4-stroke (~2015) *SPARK excluded

【set content】
1.MOTOBATT battery (MBTX30U)
2.Battery charger (MBPDCWB)

【compatibility】
■Yuasa:
Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A,
YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW,
YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030,YB30CL-B
■DEKA: ETX30L, ETX30LA, ETX30
■ODYSSEY: PC925 (Side Mounted)

【Product Specifications】
MBTX30U
■Size (mm): L:166 W:126 H:175
■Spacer (mm): Bottom 17mm
■Voltage (V): 12 V
■Cold cranking ampere (CCA): 385A
■Capacity (10HR): 32Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

【compatibility】
■Yuasa:
YB12BB2, YTX12BS, YTX12, YTX14BS, YTX14, YTX14L, YTX14H, YTX14HBS,
YTX14LBS, KMX14BS, YTX15, YTX15L, YTX15LBS
■DEKA: ETX12
■ODYSSEY: PC545

[Product specifications] MBTX12U
■Size (mm): L:151 W:87 H:130
■Spacer (mm): Bottom 5mm+10mm
■Voltage (V): 12V
■Cold cranking ampere (CCA): 200A
■Capacity (10HR): 14Ah

●Patent: Quad flex terminal
Innovative terminal arrangement allows for flexibility in connecting aftermarket accessories.

●Innovative power balance
Batteries in the powersports market continue to face three problems.
1.Big vibration
2. High load at start-up
3.Load due to additional accessories
MOTOBATT's innovative power balance design overcomes these problems.
By reviewing the conventional cranking power (CCA) and emphasizing ampere hour (Ah),
Quick power recovery allows you to cope with repeated startups with extra power.

●AGM (absorbed glass mat) design
Classified as a dry type battery designed by AGM, it has a long life and there is no need to worry about leakage, so it can be used in harsh environments.
The plates inside the battery are encased in a glass mat soaked with electrolyte, so the contact surface is always maximized and protected from vibrations.
The self-discharge rate is much lower than that of the wet type, and deeper discharge is also possible.
Even if the battery runs out, charging will restore it without reducing performance.
80% of initial battery failures are due to incorrect injection of electrolyte.
MOTOBATT is optimally adjusted at the factory and can be installed right out of the box.

【Guidance】
Some MOTOBATT products include
A "spacer" is included, so please use it as necessary.

■Compatibility: 12V battery, AGM, lead acid battery, gel battery
■IN: Automatic switching 120-240VAC - 50/60 Hz
■OUT: 12VDC 1.0A
■MAX CHARGE: 1.0A
■MAX VOLT: 14.8V
■Cap: Charging: 2-33Ah, Maintenance: ~80Ah

・Highly waterproof charger with IP68 rating
・9-step algorithm charging technology
・Overcharge protection
・Reverse polarity protection
・Spark prevention
・Maintain full charge

■Compatibility: 12V battery, lithium ion, AGM, lead acid battery, gel battery
■IN: Automatic switching 120-240VAC - 50/60 Hz
■OUT: 12VDC 2.0A
■MAX CHARGE: 2.0A
■MAX VOLT: 14.9V
■Cap: Charging: 2-100Ah, Maintenance: All sizes

・9-step algorithm charging technology
・Overcharge protection
・Reverse polarity protection
・Spark prevention
・Maintain full charge

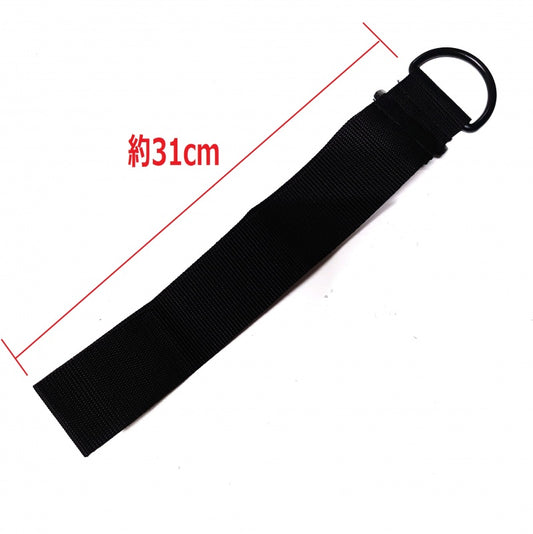

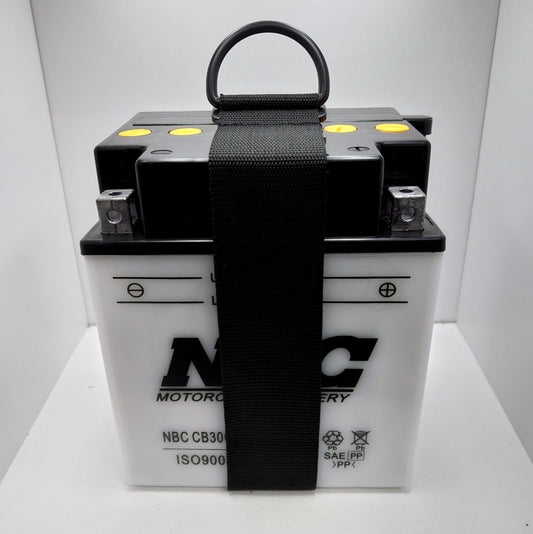

Convenient when removing the battery.

-Size: Belt width: approx. 5cm, total length (circumference): approx. 62cm, diameter: approx. 31cm

[Product specifications]
●12V power can be easily extracted from the cigarette lighter socket and terminal.

●Compatible with taking out electric power! This is a new type of battery BOX whose main terminal has a 60A circuit breaker.

●In accordance with modern needs, it is also equipped with a USB charger socket.

●Equipped with a battery level gauge, so you can conveniently check the remaining battery level with the touch of a button without having to open the lid.

●Socket type: Cigarette lighter (1 burner), USB (2 burners)
●USB socket specifications: Output voltage (DC5V)/Output current (2.1A)
●Built-in breaker: 10A (cigar socket)/60A (main terminal)
●Breaker type: manual reset
●Compatible battery: For 105A or less
-External dimensions: W420 x D230 x H335mm
-Inner dimensions: W340 x D190 x H225mm
(There is a protrusion on the back of the lid to hold the battery in place.)

*If more than the specified current flows, the breaker will operate and shut down the current.
After tripping the breaker, wait a sufficient amount of time before pressing the reset button.
