Product details
■The MINI battery switch is ideal for outboard boats and boats equipped with small diesel engines.

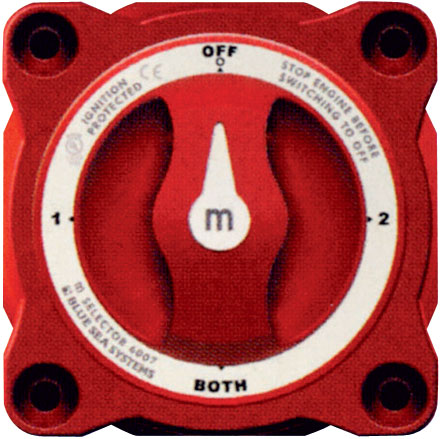

■Battery switch that supplies two systems from two batteries. [Switch position] The following four positions are available.
1. Battery 1 → Connect/cut off the power to the two devices.
2. Battery 2 → Connect/cut off the power to the two devices.
3. Battery 1 + 2 → Connect/cut off the power to the two devices.
4. Shut off all batteries 1+2.
[Product use]
●Continuous withstand current: 300Amp
●Momentary withstand current: 1500Amp (2.5 seconds)
●Maximum voltage: 48V
●Size: 68.9x68.9mm
●Terminal stud: 9.5mm
■Installation method: Compatible with mounting methods such as embedded in the wall or stationary.
■Six types of stickers (``ENGINE'', ``ENGINE1'', ``ENGINE2'', ``GENERATOR'', ``HOUSE'', and ``INVERTER'') can be attached to the knob section depending on the purpose.

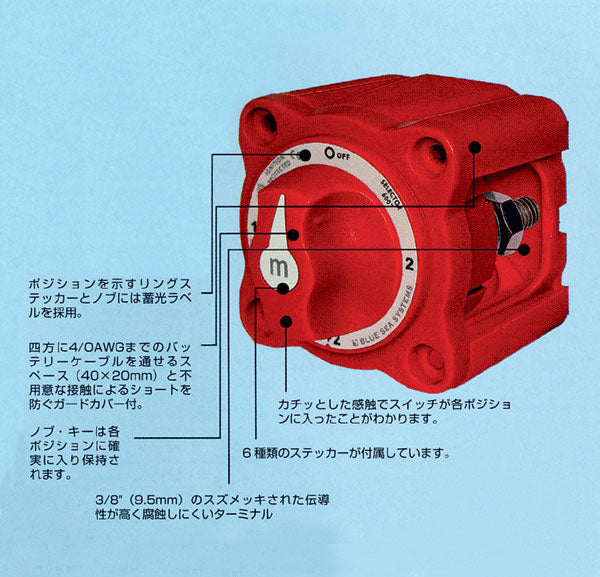

■■■■■Main features■■■■■
●Highly conductive copper is used for the connection terminal, and the corrosion-resistant tin plating coating ensures reliable wiring!
●The ring sticker and knob that indicate the switch position use luminescent labels. You can operate it without any mistakes even in dark places.
●You can tell that the knob is firmly in each position by a firm "click" response.
