Product details

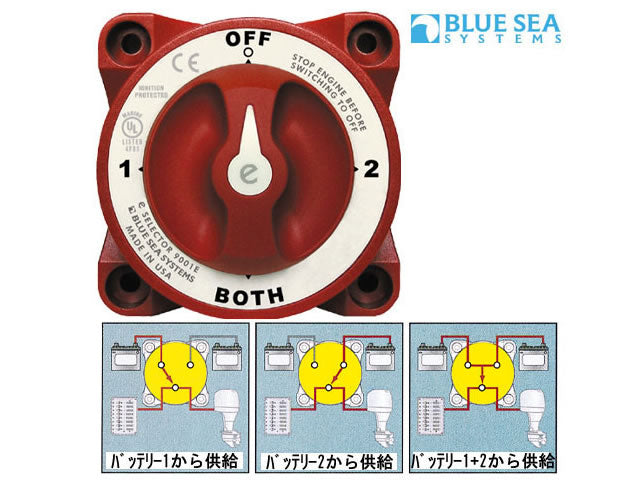

●A battery switch that supplies two systems from two batteries; the switch position is from battery 1 to connect/cut off power to two devices. Battery 2 → Connect/cut off power to two devices. Battery 1+2 → Connect/cut off power to two devices. All batteries 1+2 are cut off. It has 4 ways.
●The e-series is ideal for boats equipped with small to medium-sized diesel engines.
●Manufactured by BLUE SEA, which boasts a top market share in the United States for electrical wiring parts related to RVs and boats, and is recommended by many builders.
●Continuous withstand current: 350Amp
●Momentary withstand current: 1750Amp (2.5 seconds)
●Maximum voltage: 48V
●Size: 97.8×97.8mm
●Terminal stud: 9.5mm
◆◆◆Main features◆◆◆
●The connection terminal uses highly conductive copper and is coated with corrosion-resistant tin plating. Achieved reliable wiring.
●The ring sticker and knob that indicate the switch position use luminescent labels. You can operate it without any mistakes even in dark places.
●You can tell that the knob is firmly in each position by a firm "click" response.
●There are two installation methods. Compatible with wall mounting and stationary mounting methods.
