  • 4% OFFHONDEX 5-inch Wide LCD Portable Chart Plotter Fish Finder PS-611CNII-BM Battery Set
    HONDEX

    HONDEX 5-inch Wide LCD Portable Chart Plotter Fish Finder PS-611CNII-BM Battery Set

    HONDEX by HONDA ELECTRONICS

    5-inch wide LCD portable plotter fish finder PS-611CNⅡ-BM
    No. 45665 BMO Battery Set

    ● Output: 100W Frequency: 200kHz (Deep specification 50/200kHz)
    ● Dimensions: W173 x D191 x H173mm Weight: Approx. 0.7kg
    ● Continuous use time: Approx. 8 hours with 8 AA batteries
    ● The Deep model allows selection between 50kHz and 200kHz, enabling display of deeper water. *Only when using TD25



    HONDEX PS Series: Fun and easy way to start using a fish finder!

    The PS series is a series of fish finders that are compact, affordable, and easy to operate, making them ideal for first-time users.

    Portable style with integrated battery box

    It operates on 8 AA batteries, giving you flexibility in installation. Plus, the stand and front cover can be folded, making it easy to carry. Perfect for small boats!
    *Approx. 8 hours of continuous use (may vary depending on usage environment).

    New Feature! Deep Mode

    The unit's mode can be switched depending on the depth of water being used. When the fish finder mode is set to "Deep" and the TD25 transducer is connected, you can select between 50kHz and 200kHz fish finder frequencies. 50kHz has the characteristic of reaching even deeper water than 200kHz, which is very useful for fishing in areas where 200kHz cannot reach.
    *TD25 is required to use Deep mode.

    deepモード

    Easy frequency switching with one-touch key

    ワンタッチキー操作

    In Deep mode, the fish finder frequency can be switched between 50kHz and 200kHz. You can quickly switch between 50kHz/200kHz with a single press of the left/right keys.
    *Only when Deep mode is set / TD25 is connected / fish finder screen is displayed

    Ultra-compact with built-in GPS antenna and nationwide map!

    A compact design that incorporates a 5-inch wide LCD into the conventional model's casing.
    With a built-in GPS antenna, no antenna wiring is required. It features a nationwide map, allowing simultaneous display of the plotter and fish finder screens. You can mark points of interest while observing the fish finder's reactions. With abundant information and color display, it clearly navigates you to your destination. The map/fish finder screens can be easily switched with a single touch.

    全国詳細地図

    Excellent visibility with a clear screen! Features a bonded LCD!

    ボンディング液晶採用

    Features a bonded LCD for excellent visibility even in direct sunlight!
    By bonding the LCD display and cover glass with special technology, visibility has been improved.

    Compatible with polarized sunglasses!

    Even when wearing polarized sunglasses, there is no color shift, providing a clear screen display from any angle.

    Extensive fish finder and plotter functions!

    Fish finder auto function

    The auto fish finder function is equipped for immediate use even by beginners. With auto range (depth) and auto gain (sensitivity), it operates fully automatically, requiring no specific manual operation. The ON/OFF status of the auto function is displayed on the left side of the fish finder screen.
    Auto range automatically switches the fish finder's depth (display range) so that the seabed is always visible. Auto gain automatically adjusts sensitivity so that the seabed reaction is always constant. (Auto range and auto gain are designed to be turned ON/OFF simultaneously.)

    Fish mark display

    Fish responses are shown with fish marks.
    This function is ideal for first-time fishfinder users or those not yet accustomed to fishfinder displays, as it allows for intuitive checking of responses.
    It also includes a fish alarm function that identifies fish responses and notifies you with an alarm.
    You'll be aware of responses even when you're not looking at the fishfinder.

    Expanded Screen Display

    The area near the seabed can be magnified by 2x/4x/8x, making it possible to clearly see bottom-dwelling fish schools, changes in terrain, and fish school density.

    You can save marks and tracks! You can set destinations!

    You can mark and save fishing spots or points of interest. You can also save your boat's track, making it clear where you've been and convenient for future trips. When you set a destination, a straight line connects your current position to the destination, and you can see the approximate distance and time to reach it.

    Front Wide

    By switching to front wide mode, you can display a wider map in the direction of travel.

    Display Date/Time and Depth at Marked Locations

    When you hover over a registered mark, you can view the registered date, time, and depth data (if an optional water temperature sensor is installed, water temperature can also be displayed).

    Bottom composition identification function makes changes in bottom quality obvious!

    The hardness of the seabed is displayed as a number (0-20) and a graph. A higher number indicates a higher probability of a hard seabed. The graph display also allows you to grasp approximate changes in bottom composition.

    < Precautions regarding the GPS antenna of PS-611CNⅡ>
    ※ Please use the main unit in as vertical a position as possible. It may not receive signals if tilted more than 30 degrees.
    ※ Reception may not be possible depending on the installation location of the main unit. Please check the following before installation:
    (1) Sufficiently far from other electronic equipment (radios, fishfinders, radars)
    (2) Sufficiently far from equipment using motors such as rotary windows and wipers
    (3) Sufficiently far from the engine
    (4) In a location free of obstacles (metals, damp wood, etc.) overhead

    You can register fish names (species)! You can search for them!

    おさかな登録画面

    The "Fish Data Function" allows you to register fish names (species) when registering a point.
    You can also search for registered fish data.

    Specifications

    Display Unit Type 5-inch wide LCD
    Display Screen Vertical
    Display Dot Count 272×480
    Power Voltage DC11～14V
    Power Consumption/Current Approx. 4W　Approx. 0.3A/12V
    Main Unit Dimensions (mm) W173×D191×H173
    Main Unit Weight Approx. 0.7kg
    Fish Finder Frequency

    200kHz
    (Deep specification 50/200kHz)
    Output 100W
    Display Range *1 Normal mode: Max: 0～300m　Min: 0～2m
    Deep mode: Max: 0～500m　Min: 0～2m
    Background Color 4 colors
    Color Scheme 8 types
    Auto Range Max Depth OFF/30m/50m/100m/150m/300m
    Auto Gain OFF/Standard/High
    Magnification OFF/Bottom Lock/Auto/Manual
    Magnification Ratio 2x/4x/8x
    Plotter Scale Size 0.005～150NM（km)
    Plot Interval (Time) 1, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20 minutes
    Memory Points Track: 16,000 points
    Mark: 1,000 points
    Antenna *2 *3 Built-in GPS

    *1 The display range does not indicate sounding capability.
    *2 Reception may not be possible depending on the installation location.
    *3 External antennas cannot be connected to PS series models.

    Compatible Options (Sold Separately)

    Transducer TD28 (8m-3P), TD04C (6m-3P), TD08 (2m-3P)
    Power Cable DC06 (2m)
    Water Temperature Sensor TC01C (6m), TC01G (3m)
    TC03-05 (5m), TC03-10 (10m)
    Mounting Bracket Set TKS01
    Multi-purpose Pipe BP05, BP10
    *When using TD28, end fitting SK05 is required.
    *When using TD08, end fitting SK06 is required.
    USB Power Cable UD01, UD02
    Sun Visor Hood SF10
    45665
    $700.70 USD $671.00
    $671.00
    (Tax incl.)
    Sale
  • 4% OFFHONDEX 5-inch Wide LCD Portable Plotter Fish Finder PS-611CNⅡ HONDEX 43727
    HONDEX

    HONDEX 5-inch Wide LCD Portable Plotter Fish Finder PS-611CNⅡ HONDEX 43727

    HONDEX by HONDA ELECTRONICS

    5-inch wide LCD portable plotter fishfinder PS-611CNⅡ
    No.43727 Standard Built-in TD04A

    ● Output: 100W Frequency: 200kHz (Deep specification 50/200kHz)
    ● Dimensions: W173 x D191 x H173mm Weight: Approx. 0.7kg
    ● Continuous operating time: Approx. 8 hours when using 8 AA batteries
    ● The Deep specification model can select between 50kHz and 200kHz, allowing it to display at deeper water depths. *Only when using TD25



    Start using a fishfinder easily and enjoyably! HONDEX PS Series.

    The PS series offers compact size, reasonable price, and user-friendly operation, making it a series that even first-time fishfinder users can confidently use.

    Portable style with integrated battery box

    It can be used with 8 AA batteries, so you can install it anywhere. In addition, the base and front protective cover can be folded, making it easy to carry. Perfect for small boats!
    *Approx. 8 hours of continuous use (varies depending on usage environment).

    New feature! Equipped with Deep mode

    The unit's mode can be switched depending on the water depth to be used. When the fishfinder mode is set to "Deep" and the TD25 transducer is connected, you can select between 50kHz and 200kHz fishfinder frequencies. 50kHz has the characteristic of reaching even deeper water depths than 200kHz, which is very useful for fishing in areas where 200kHz does not reach.
    *TD25 is required to use Deep mode.

    deepモード

    Easy frequency switching with one-touch keys

    ワンタッチキー操作

    In Deep mode, the fishfinder frequency can be switched between 50kHz and 200kHz. Pressing the left/right keys allows for quick one-touch switching between 50kHz/200kHz.
    *Only when Deep mode is set / TD25 is connected / fishfinder screen is displayed

    Ultra-compact with built-in GPS antenna & preloaded national map!

    Compact design with a 5-inch wide LCD in the conventional model's casing.
    With a built-in GPS antenna, no antenna wiring is required. It comes with a preloaded national map, allowing simultaneous display of the plotter and fishfinder screens. You can mark points of interest while observing the fishfinder's reactions. With abundant information and color display, it navigates to your destination clearly. The map/fishfinder screens can be easily switched with a single touch.

    全国詳細地図

    Excellent visibility with a clear screen! Features bonded LCD!

    ボンディング液晶採用

    Bonded LCD is used for clear visibility even in direct sunlight!
    Visibility has been improved by bonding the LCD display and cover glass with special technology.

    Compatible with polarized sunglasses!

    There is no color shift even when wearing polarized sunglasses, achieving a clear screen display from any angle.

    Full-featured fishfinder & plotter functions!

    Fishfinder Auto Function

    The fishfinder auto function is included so that even beginners can use it immediately. By using auto range (depth) and auto gain (sensitivity), it operates fully automatically, so no special operation is required. The ON/OFF status of the auto function is displayed on the left side of the fishfinder screen.
    Auto range automatically switches the fishfinder's depth (display range) so that the seabed is always displayed. Auto gain automatically adjusts the sensitivity so that the seabed response is always constant. (Auto range and auto gain are designed to be turned ON/OFF simultaneously.)

    Fish Mark Display

    Fish echoes are displayed with fish marks.
    This is an ideal feature for those using a fish finder for the first time or who are not yet familiar with fish finder displays, as it allows you to intuitively confirm echoes.
    It also has a fish alarm function that identifies fish echoes and alerts you with an alarm.
    You'll know when there's a fish echo even when you're not looking at the fish finder.

    Magnified Display

    The area near the seabed can be magnified by 2x, 4x, or 8x, clarifying bottom-dwelling fish schools, undulations, and the density of fish schools.

    Mark and track points! Set destinations!

    You can mark and save fishing spots or points of interest. You can also save your tracks, so you know where you've been, which is convenient for future trips. When you set a destination, a straight line connects your current position to the destination, showing you the approximate distance and time to reach it.

    Front Wide

    Front Wide allows you to display a wider map in the direction of travel.

    Display of date, time, and depth at marked locations

    Hovering over a registered mark displays the registered date, time, and depth data (if an optional water temperature sensor is installed, water temperature can also be displayed).

    Seabed discrimination function shows changes in seabed composition at a glance!

    The hardness of the seabed is displayed as a number (0-20) and a graph. A higher number indicates a higher probability of a hard seabed. The graph display also allows you to grasp approximate changes in seabed composition.

    <Precautions regarding the PS-611CNⅡ's GPS antenna>
    *Please use the unit in as vertical a position as possible. It may not receive signals if tilted more than 30 degrees.
    *Reception may not be possible depending on the installation location of the unit. Please install it after checking the following:
    (1) Sufficiently far from other electronic equipment (radios, fish finders, radar)
    (2) Sufficiently far from equipment using motors such as rotating windows and wipers
    (3) Sufficiently far from the engine
    (4) In a location free of obstacles (metals, damp wood, etc.) overhead

    You can register and search for fish names (species)!

    おさかな登録画面

    The "Fish Data Function" allows you to register fish names (species) when registering a point.
    You can also search for registered fish data.

    Specifications

    Display Type 5-inch wide LCD
    Display Screen Vertical
    Display Pixels 272×480
    Power Voltage DC11～14V
    Power Consumption/Current Approx. 4W　Approx. 0.3A/12V
    Unit Dimensions (mm) W173×D191×H173
    Unit Weight Approx. 0.7kg
    Fish Finder Frequency

    200kHz
    (Deep specification　50/200kHz)
    Output 100W
    Display Range　*1 Normal mode: Max: 0～300m　Min: 0～2m
    Deep mode: Max: 0～500m　Min: 0～2m
    Background Color 4 colors
    Color Scheme 8 types
    Auto Range Max Depth OFF/30m/50m/100m/150m/300m
    Auto Gain OFF/Standard/High
    Magnification OFF/Bottom fixed/Auto/Manual
    Magnification Ratio 2x/4x/8x
    Plotter Scale Size 0.005～150NM（km)
    Plot Interval (Time) 1, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20 minutes
    Memory Points Tracks: 16,000 points
    Marks: 1,000 points
    Antenna *2 *3 Built-in GPS

    *1 The display range does not indicate the depth measurement capability.
    *2 Reception may not be possible depending on the installation location.
    *3 PS series units cannot connect to an external antenna.

    Compatible Options (Sold Separately)

    Transducer TD28 (8m-3P), TD04C (6m-3P), TD08 (2m-3P)
    Power Cable DC06 (2m)
    Water Temperature Sensor TC01C (6m), TC01G (3m)
    TC03-05 (5m), TC03-10 (10m)
    Mounting Bracket Set TKS01
    Universal Pipe BP05, BP10
    *SK05 tip fitting is required when using TD28.
    *SK06 tip fitting is required when using TD08.
    USB Power Cable UD01, UD02
    Sun Visor Hood SF10
    43727
    $574.20 USD $551.10
    $551.10
    (Tax incl.)
    Sale
  • 4% OFFHONDEX 5-inch Wide LCD Portable Fish Finder PS-610CⅡ BMO Battery Set HONDEX 45664
    HONDEX

    HONDEX 5-inch Wide LCD Portable Fish Finder PS-610CⅡ BMO Battery Set HONDEX 45664

    HONDEX by HONDA ELECTRONICS

    5-inch wide LCD portable fish finder PS-610CⅡ-BM
    No.45664 BMO Battery Set

    ●Output: 100W Frequency: 200kHz
    ●Main unit dimensions: W173 x D191 x H173mm Approx. 0.7kg
    ●Main unit voltage/power consumption/current: DC11~14V Approx. 3W Approx. 0.3A/12V



    HONDEX PS series: fun and easy for first-time fish finder users!

    The PS series offers compact size, reasonable pricing, and user-friendly operation, making it ideal for first-time fish finder users.

    Portable style with integrated battery box

    Operates on 8 AA batteries, offering flexible installation. The stand and front cover can be folded for easy portability. Perfect for small boats!
    *Approx. 10 hours of continuous use (may vary depending on operating conditions).

    High-quality display, unexpectedly good for a portable device!

    A compact body features a 5-inch wide LED-backlit high-brightness LCD (850 candelas). This ensures excellent visibility even in bright outdoor sunlight.

    Excellent visibility with a clear screen! Features bonded LCD!

    ボンディング液晶採用

    Features bonded LCD for better visibility even in direct sunlight!
    Visibility has been enhanced by adhering the LCD and cover glass using special technology.

    Compatible with polarized sunglasses!

    No color shifting when wearing polarized sunglasses, ensuring a clear screen display from any angle.

    Fish finder functions include fish marks and bottom discrimination!

    Fish Finder Auto Function

    Equipped with an auto function for fish finders, making it easy for beginners to use immediately.
    When Auto Range (depth) and Auto Gain (sensitivity) are used, it operates fully automatically, requiring no special operation.
    : Auto Range
    Automatically switches the fish finder's depth (water depth display range) so that the seabed is always displayed.
    [AUTO] is displayed in the lower right of the screen when ON.
    : Auto Gain
    Automatically adjusts sensitivity so that the seabed echo is always constant. [AUTO] is displayed in the upper left of the screen when ON.

    Enlarged Screen Display

    The seabed area can be magnified by 2x, 4x, or 8x, clarifying bottom-dwelling fish schools, undulations, and fish school density.

    Water Temperature Graph

    The water temperature graph can be displayed full screen or on the fish finder screen.
    Understanding changes in water temperature through the graph helps identify currents, which is useful for finding fishing spots.
    It is convenient for trolling and other activities where water temperature changes are crucial.

    High-Speed Ultrasonic Transmission

    Clearly captures underwater information and reliably detects echoes.

    Fish Mark Display

    Fish echoes are displayed as fish marks.
    This feature allows intuitive confirmation of echoes, making it ideal for first-time fish finder users or those still getting accustomed to fish finder displays.
    It also includes a fish alarm function that identifies fish echoes and alerts you with an alarm.
    You'll be aware of echoes even when you're not looking at the fish finder.

    Large Font Water Depth Display

    The size of the digital water depth display can be easily set from the menu.
    There are "Large, Medium, and Small" options, with "Large" being easily visible even from a distance.

    Bottom Quality Discrimination Function: Changes in bottom quality are immediately apparent

    The hardness of the seabed is displayed with numbers (0-20) and a graph. A larger number indicates a higher probability of a hard seabed.
    In addition, the graph display allows you to grasp approximate changes in bottom quality.

    Main Specifications

    Display Unit Type 5-inch wide LCD
    Display Screen Vertical
    Display Dots 272×480
    Power Voltage DC 11~14V
    Power Consumption/Current Approx. 3W Approx. 0.3A/12V
    Unit Dimensions (mm) W173×D191×H173
    Unit Weight Approx. 0.7kg
    Fish Finder Frequency 200kHz
    Output 100W
    Display Range *1 Max: 0~300m Min: 0~3m
    Background Color 3 colors
    Color Scheme 6 types
    Auto Depth Off/On
    Auto Sensitivity Off/Low/Medium/High
    Magnification OFF/Bottom Lock/Auto/Manual
    Magnification Ratio 2x/4x/8x

    *1 The display range does not indicate depth measurement capability.

    Compatible Options (Sold Separately)

    Transducer TD04C(3P-6m), TD08(3P-2m)
    Power Cable DC06(2m)
    Water Temperature Sensor (Transom) TC01C(6m), TC01G(3m), TC03-05(5m), TC03-10(10m)
    Mounting Base Set TKS01
    Sun Cover SF10
    Universal Pipe BP05, BP10 *For TD08, use tip metal fitting SK06
    USB Power Cable UD01, UD02
    45664
    $552.20 USD $529.10
    $529.10
    (Tax incl.)
    Sale
  • 4% OFFHONDEX 5-inch Wide LCD Portable Fish Finder PS-610CⅡ HONDEX 44505
    HONDEX

    HONDEX 5-inch Wide LCD Portable Fish Finder PS-610CⅡ HONDEX 44505

    HONDEX by HONDA ELECTRONICS

    5-inch wide LCD portable fishfinder PS-610CⅡ
    No.44505

    ●Output: 100W Frequency: 200kHz
    ●Dimensions: W173 x D191 x H173mm Approx. 0.7kg
    ●Unit Voltage/Power Consumption/Current: DC11~14V Approx. 3W Approx. 0.3A/12V



    Start using a fishfinder easily and enjoyably! HONDEX PS Series.

    The PS series offers compact size, reasonable price, and user-friendly operation, making it a reliable choice for first-time fishfinder users.

    Portable style with integrated battery box

    It operates on 8 AA batteries, so you can install it anywhere. Plus, the stand and front cover can be folded, making it easy to carry. Perfect for small boats!
    *Approx. 10 hours of continuous use (may vary depending on usage environment).

    High-quality display, unexpected for a portable device!

    Despite its compact body, it features a 5-inch wide LED-backlit high-brightness LCD (850 cd/m²). This ensures excellent visibility even in bright, sunny outdoor conditions.

    Clear, highly visible screen! Features a bonded LCD!

    ボンディング液晶採用

    Features a bonded LCD for excellent visibility even in direct sunlight!
    By bonding the LCD display and cover glass with special technology, visibility has been improved.

    Compatible with polarized sunglasses!

    No color shift occurs even when wearing polarized sunglasses, ensuring a clear screen display from any angle.

    Full-featured fishfinder with fish marks and bottom discrimination!

    Fishfinder Auto Function

    The fishfinder auto function is installed so that even beginners can use it immediately.
    If you use auto range (depth) and auto gain (sensitivity), it operates fully automatically, so there is no need for any special operations.
    : Auto Range
    Automatically switches the fishfinder's depth (water depth display range) so that the seabed is always displayed.
    [AUTO] is displayed at the bottom right of the screen when ON.
    : Auto Gain
    Automatically adjusts sensitivity so that the seabed response is always constant. [AUTO] is displayed at the top left of the screen when ON.

    Enlarged screen display

    The area near the seabed can be magnified 2, 4, or 8 times, clearly showing rooted fish schools, undulations, and fish school density.

    Water temperature graph

    The water temperature graph can be displayed on the full screen or on the fishfinder screen.
    By understanding changes in water temperature from the graph, you can identify tidal currents, which is useful when searching for fishing spots.
    This is convenient for trolling and other activities where changes in water temperature are important.

    High-speed ultrasonic emission

    It clearly captures information in the water and accurately detects responses.

    Fish mark display

    Displays fish responses with fish marks.
    This feature is ideal for first-time fishfinder users or those not yet accustomed to fishfinder displays, as it allows for intuitive confirmation of responses.
    It also includes a fish alarm function that identifies fish responses and alerts you with an alarm.
    You'll know about responses even when you're not looking at the fishfinder.

    Large display of water depth

    The size of the digital water depth display can be easily set from the menu.
    There are "large, medium, and small" options, with "large" being easy to read even from a distance from the fish finder.

    Bottom sediment changes at a glance, bottom sediment discrimination function

    The hardness of the seabed is displayed as a number (0-20) and a graph. The higher the number, the harder the seabed is likely to be.
    The graph also allows you to grasp approximate changes in bottom sediment.

    Main Specifications

    Display Unit Type 5-inch Wide LCD
    Display Screen Vertical
    Display Pixels 272×480
    Power Voltage DC 11~14V
    Power Consumption/Current Approx. 3W Approx. 0.3A/12V
    Main Unit Dimensions (mm) W173×D191×H173
    Main Unit Weight Approx. 0.7kg
    Fish Finder Frequency 200kHz
    Output 100W
    Display Range *1 Max: 0~300m Min: 0~3m
    Background Color 3 colors
    Color Scheme 6 types
    Auto Depth Off/On
    Auto Sensitivity Off/Low/Mid/High
    Zoom OFF/Bottom Lock/Auto/Manual
    Zoom Magnification 2x/4x/8x

    *1 The display range does not represent sounding capability.

    Compatible Options (Sold Separately)

    Transducer TD04C (3P-6m), TD08 (3P-2m)
    Power Cable DC06 (2m)
    Water Temperature Sensor (Transom) TC01C (6m), TC01G (3m), TC03-05 (5m), TC03-10 (10m)
    Mounting Bracket Set TKS01
    Sun Cover SF10
    All-Purpose Pipe BP05, BP10 *For TD08, use tip metal fitting SK06
    USB Power Cable UD01, UD02
    44505
    $425.70 USD $407.00
    $407.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 8.4-inch Plotter Digital Fish Finder 8.4-inch HE-8SⅡ with Built-in Antenna TD25 HONDEX 45649
    HONDEX

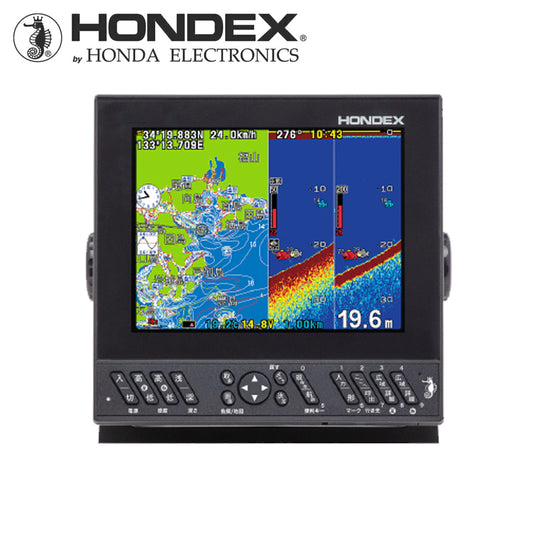

    HONDEX 8.4-inch Plotter Digital Fish Finder 8.4-inch HE-8SⅡ with Built-in Antenna TD25 HONDEX 45649

    HONDEX by HONDA ELECTRONICS

    8.4-inch Plotter Digital Fish Finder 8.4-inch HE-8SⅡ
    No.45649 Built-in GPS (TD25)

    ●Output 600W Frequency 50/200kHz
    ●Dimensions/Mass: W248×D97×H216 Approx. 2kg
    ●Power Voltage/Power Consumption/Current: DC11~30V/Approx. 12W/Approx. 1A/12V
    ●Built-in detailed national map
    ●Equipped with Depth Mapping function



    Easy navigation with intuitive operation!

    With an easy-to-read and easy-to-use control panel and a simple, clear menu screen, even beginners can operate it easily without getting lost.
    ●Large Buttons
    Large buttons reduce operational errors due to mis-pressing.
    ●Large Text Display
    Large, easy-to-read Japanese text allows for smooth operation.
    ●Ergonomic Button Layout
    Clearly demarcated areas for fish finder operation buttons and plotter operation buttons enable stress-free operation.

    Equipped with Depth Mapping® function!

    2685_file

    This function uses depth information from the fish finder and GPS position information to display seafloor topography on the screen's map. When the seafloor undulations not shown on standard maps are depicted, excellent fishing spots become even clearer*. Based on the acquired depth data, the seafloor topography is displayed in different colors.

    [NEW] From products shipped on or after April 1, 2025, the Depth Mapping® function's operable depth has increased from a maximum of 150m to a maximum of 300m.

    *The Depth Mapping® function infers and displays seafloor topography based on depth measurements taken while navigating. It may differ from the actual topography.

    ■ Approximately 50 hours of data can be stored internally (※1)
    (※1): When the recording distance interval is about 5m and boat speed is about 5 knots. Recording time may vary depending on settings and conditions such as boat speed. The shortest duration is approximately 18 hours.
    ■ 30 blocks of 1 block (approx. 50 hours) each can be stored in the internal map memory.
    **Only 1 block can be displayed on the plotter screen.

    【Depth Mapping® PV】

    Built-in GPS antenna

    The HE-8SII has a built-in GPS antenna.
    *When using the built-in antenna, reception may not be possible depending on the installation location and method (when an external antenna is used, the external antenna takes priority).

    Bright bonded LCD screen with a wide viewing angle!

    The display dot count is an extremely high-definition 640 x 480, allowing even subtle reactions and characters to be seen clearly.
    In addition, the adoption of a high-brightness LCD (1000 candelas) provides excellent visibility even in bright conditions such as direct sunlight.
    Furthermore, the use of a bonded LCD improves LCD visibility and prevents condensation.

    Displays rich information at high speed! Standard equipped with an easy-to-read national detailed map.

    Equipped with a high-performance CPU, map drawing speed is top-class in the industry! It smoothly displays coastlines even during high-speed navigation.
    Place names and other information are displayed in large, easy-to-read Japanese text.

    HONDEX's Di series, equipped with top-class fish finder performance!

    HONDEX's Di-Digital series introduces new technology that directly converts weak received signals into digital.
    Optimal filtering is possible according to the situation, displaying the optimal image according to the depth.
    Latest digital technology realizes high-quality image expression with less noise.

    －I wanted these features! A variety of digital-exclusive features－

    Fish size display

    The digital series has added a size display to the popular fish character function.
    Sizes from 1 to 99 can be determined, and a "display/hide" one-touch function and a dual-screen display with the normal screen have been adopted to instantly check reactions in real-time images.
    *This function can be used within a 100m range.
    *The numerical values of the size display may vary due to various factors. Please consider them as reference values only.

    Fish depth display

    The fish character display now includes the height from the seabed and the depth from the water surface (unit: meters).
    *This function is available within the 100m range.
    *The depth display values may vary due to various factors. Please consider them as reference values only.

    Two-screen display on the same frequency

    The fishfinder image for the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    Full-screen sensitivity adjustment

    With conventional fishfinders, sensitivity changed from the moment it was adjusted, but with digital fishfinders, it is now possible to change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while looking at the entire screen (past records), allowing even beginners to manually set clear images.

    Heading sensor HD03 can be connected!

    The heading sensor HD03 can be connected! You can ascertain the bow direction even when the boat is stopped, making it ideal for drift fishing!

    3071_file

    [NEW] Register and search fish names!

    おさかな登録画面

    The "Fish Data Function" which allows you to register fish names (species) when registering points will be installed in shipments from April 1, 2025 onwards. It will also be possible to search registered fish data.

    Main Specifications

    Display Type 8.4-inch LCD
    Display Screen Landscape
    Display Dot Count 640×480
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 12W, Approx. 1A/12V
    Main Unit Dimensions (mm) W248×D97×H216
    Main Unit Weight Approx. 2kg
    Fishfinder Frequency 50/200kHz
    Output 600W
    Display Range *1 Max: 0～1000m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Auto Function In menu
    Depth Alarm ON/OFF
    Magnification OFF/Auto/Manual/Bottom Lock
    Magnification Ratio 2x/4x/8x
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval (Time) 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Memory Points Tracks: 32,000 points
    Marks: 24,000 points
    Track Display Color 7 colors
    Drawing Function ○
    Map Fill/Rotate ○
    Map Data Detailed national map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS

    *1 The display range does not indicate sounding capability.
    *2 Due to the built-in antenna, reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)


    Water Temperature Sensor     		Thru-hull type TC02CS(15m)+TCK01
    Transom type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Universal Pipe + Bracket BP05+SK05, BP10+SK05
    External GPS Antenna GP-16H(L) (10m)
    GPS Antenna with Built-in Heading Sensor GP-16HD (10m)
    Heading Sensor HD03 (10m)
    In-dash Mounting Bracket 〇

    45649
    $2,355.10 USD $1,758.90
    $1,758.90
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 8.4-inch Plotter Digital Fishfinder 8.4-inch HE-8SⅡ with Built-in Antenna TD28 HONDEX 45648
    HONDEX

    HONDEX 8.4-inch Plotter Digital Fishfinder 8.4-inch HE-8SⅡ with Built-in Antenna TD28 HONDEX 45648

    HONDEX by HONDA ELECTRONICS

    8.4-inch Plotter Digital Fish Finder HE-8SⅡ
    No.45648 Built-in GPS (TD28)

    ●Output 600W Frequency 50/200kHz
    ●Dimensions/Weight: W248×D97×H216 mm / approx. 2kg
    ●Power supply voltage/power consumption/current: DC11~30V/approx. 12W/approx. 1A/12V
    ●Built-in detailed national map
    ●Equipped with Depth Mapping function



    Easy navigation with intuitive operation!

    With an easy-to-see and easy-to-use control panel and a clear, simple menu screen, even beginners can operate it easily without getting lost.
    ●Large Buttons
    Large buttons reduce operational errors due to mis-pressing.
    ●Large Text Display
    Large, easy-to-read Japanese text allows for smooth operation.
    ●Easy-to-Operate Button Layout
    The areas for fish finder operation buttons and plotter operation buttons are clearly defined, enabling stress-free operation.

    Equipped with Depth Mapping® function!

    2685_file

    This function uses depth information from the fish finder and GPS position information to draw seabed topography on the map displayed on the screen. When seabed undulations not shown on standard maps are depicted, prime fishing spots become clearer *. It displays the seabed topography in different colors based on the acquired depth data.

    [NEW] For shipments starting April 1, 2025, the operating depth for the Depth Mapping® function has increased from a maximum of 150m to a maximum of 300m.

    *The Depth Mapping® function infers and displays seabed topography based on depth measurements taken while navigating. Actual topography may differ.

    ■ Approximately 50 hours of data can be stored internally (※1)
    (※1): When recording distance interval is approx. 5m and boat speed is approx. 5kn. Recording time may vary depending on settings, boat speed, and other conditions. The shortest recording time is approx. 18 hours.
    ■ 30 blocks of data (approx. 50 hours each) can be stored in the map memory area of the main unit.
    **Only one block can be displayed on the plotter screen at a time.

    [Depth Mapping® PV]

    Built-in GPS Antenna

    The HE-8SII has a built-in GPS antenna.
    ※When using the built-in antenna, reception may not be possible depending on the installation location/method (when an external antenna is used, the external antenna takes precedence).

    Bright, wide-angle bonded LCD screen!

    The display boasts a very high resolution of 640x480 dots, allowing for clear visibility of subtle reactions and text.
    Furthermore, the adoption of a high-brightness LCD (1000 candela) ensures excellent visibility even in bright conditions such as direct sunlight.
    Additionally, the bonded LCD improves screen visibility and prevents condensation.

    Displays rich information at high speed! Equipped with easy-to-view detailed national map as standard.

    Equipped with a high-performance CPU, the map drawing speed is top-class in the industry! It smoothly displays coastlines even while traveling at high speeds.
    Place names are clearly displayed in large, easy-to-read Japanese text.

    HONDEX Di Series: The Ultimate in Fish Finder Performance!

    The HONDEX Di-Digital Series introduces new technology that directly converts weak received signals into digital.
    Optimal filtering according to the situation is possible, displaying the optimal image according to water depth.
    The latest digital technology has achieved high-quality image representation with less noise.

    －Exactly what you wanted! Diverse features unique to digital－

    Fish Size Display

    The digital series adds size display to the popular fish character function.
    It can be judged by sizes 1 to 99, and a one-touch function for "display/hide" and a two-screen display with the normal screen are adopted to instantly confirm reactions in actual images.
    *This function can be used within a 100m range.
    *The numerical values for size display may vary due to various factors. Please consider them as reference values only.

    Fish Depth Display

    Height from the seabed and depth from the sea surface (unit: m) have been added to the fish character display.
    *This function can be used within a 100m range.
    *The numerical values for depth display may vary due to various factors. Please consider them as reference values only.

    Dual-Screen Display on the Same Frequency

    You can split the fishfinder image of the same frequency into two screens and adjust the sensitivity of each.
    By comparing the two screens, you can set the optimal sensitivity.

    Full-Screen Sensitivity Adjustment

    With previous fish finders, changing the sensitivity would take effect from that point on. However, digital fish finders now allow you to change the sensitivity on the screen (past records).
    With this feature, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set up clear images.

    Can connect to Heading Sensor HD03!

    The Heading Sensor HD03 can be connected! You can ascertain the bow direction even when stopped, which is perfect for drift fishing!

    3071_file

    [NEW] Register and search fish names!

    おさかな登録画面

    The "Fish Data Function", which allows you to register fish names (species) when registering points, is scheduled to be installed in shipments starting April 1, 2025. It is also possible to search for registered fish data.

    Main Specifications

    Display Unit Type 8.4 inch LCD
    Display Screen Horizontal
    Display Dot Count 640×480
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 12W Approx. 1A/12V
    Dimensions (mm) W248×D97×H216
    Weight Approx. 2kg
    Fish Finder Frequency 50/200kHz
    Output 600W
    Display Range *1 Max: 0～1000m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Auto Function Within menu
    Depth Alarm ON/OFF
    Magnification OFF/Auto/Manual/Bottom Lock
    Magnification Ratio 2x/4x/8x
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval (Time) 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Memory Points Tracks: 32,000 points
    Marks: 24,000 points
    Track Display Color 7 colors
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed national map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 GPS built-in

    *1 The display range does not indicate the depth measurement capability.
    *2 Since the antenna is built-in, reception may not be possible depending on the mounting location.

    Compatible Options (Sold Separately)


    Water Temperature Sensor     		Thru-hull type TC02CS(15m)+TCK01
    Transom type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Multipurpose Pipe + Transducer Mounting Bracket BP05+SK05, BP10+SK05
    External GPS Antenna GP-16H(L) (10m)
    Heading Sensor Built-in GPS Antenna
    		 GP-16HD (10m)
    Heading Sensor HD03 (10m)
    In-dash Mounting Bracket 〇

    45648
    $2,296.80 USD $1,716.00
    $1,716.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 5-inch Wide Chartplotter Fish Finder HE-601GPⅢ GPS Color LCD Fish Finder HONDEX 44163
    HONDEX

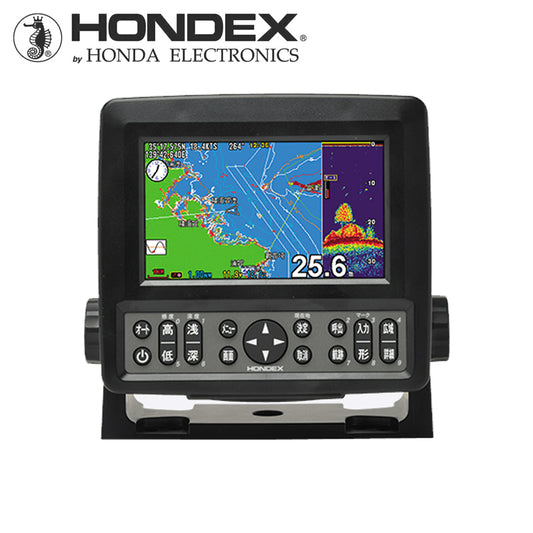

    HONDEX 5-inch Wide Chartplotter Fish Finder HE-601GPⅢ GPS Color LCD Fish Finder HONDEX 44163

    HONDEX by HONDA ELECTRONICS

    5-inch wide plotter fish finder HE-601GPⅢ
    No. 44163 with built-in GPS

    ● This is a lightweight, portable, stationary model of the Easy Navi series.
    ● The HE-601GPⅢ is only available with a built-in GPS antenna. If reception is not possible depending on the installation location, please purchase the external antenna No. 26799.
    ● Output: 300W Frequency: 200kHz
    ● Dimensions: W178×D80×H164mm Weight: Approx. 0.7kg
    ● Power supply voltage/power consumption/power: DC11~15V/Approx. 4W/Approx. 0.3A/12V



    Easy Navi for intuitive operation!

    With easy-to-understand Japanese display and a neatly arranged control panel, even first-time users can operate it easily and comfortably.
    Fish finder auto function can also be switched with a single touch!

    Built-in GPS antenna

    Sleek design with built-in GPS antenna. No antenna wiring is required, making installation easy.
    *The HE-601GPⅢ is only available with a built-in GPS antenna.
    If reception is not possible depending on the installation location, you can connect an external antenna (optional).

    Excellent visibility with a clear screen! Features a bonded LCD!

    Features a bonded LCD for excellent visibility even in sunlight!
    Visibility has been improved by bonding the LCD display and cover glass with a special technique.

    Lightweight and compact design

    The main unit weighs approximately 0.7 kg and has compact dimensions of W178 × D80 × H164 mm.

    Displays rich information at high speed! Comes standard with easy-to-read detailed national maps.

    Equipped with a high-performance CPU, the map drawing speed is top class in the industry! It smoothly displays coastlines even while driving at high speeds.
    Place names are displayed in large, easy-to-read Japanese text.

    You can register and search for fish names (species)!

    おさかな登録画面

    Equipped with the "Fish Data Function" that allows you to register fish names (species) when registering points.
    You can also search the registered fish data.

    Main Specifications

    Display Unit Type 5-inch wide LCD
    Display Screen Horizontal
    Display Dots 480×272
    Power Voltage DC11～15V
    Power Consumption/Current Approx. 4W　Approx. 0.3A/12V
    Main Unit Dimensions (mm) W178×D80×H164
    Main Unit Weight Approx. 0.7kg
    Fishfinder Frequency 200kHz
    Output 300W
    Display Range*1 Max: 0～300m
    Min: 0～3m
    Background Color 4 colors
    Color Scheme 6 types
    Auto Function One-touch
    Depth Alarm ON/OFF
    Zoom ON/Auto/Bottom Lock
    Zoom Magnification 2x/4x/8x
    Plotter Scale Size 0.005～200NM (km)
    Plot Interval (Time) 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Memory Points Tracks: 16,000 points
    Marks: 12,000 points
    Track Display Color 7 colors
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Built-in detailed national map
    Tide Graph ○
    Weather Information Display Not supported
    NMEA Output Not supported (input only)
    Antenna *2 Built-in GPS

    *1 The display range does not indicate the depth sounding capability.
    *2 Due to the built-in antenna, reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Transom Type TC01C(6m), TC01G(3m),
    TC03-05(5m), TC03-10(10m)
    Multipurpose Pipe + End Fitting BP05+SK01, BP10+SK01
    External Antenna GP-16H(L)
    USB Power Cord UD01, UD02
    Power Cord with Alligator Clips for Lithium Battery
    (14.4~14.8V, up to 16.8V max)    		 DC06W
    BMO Battery Adapter BA01, BA01B


    44163
    $953.70 USD $712.80
    $712.80
    (Tax incl.)
    Sale
  • 10% OFFHONDEX 9-inch Wide Color LCD Plotter Fish Finder HE-9000
    HONDEX

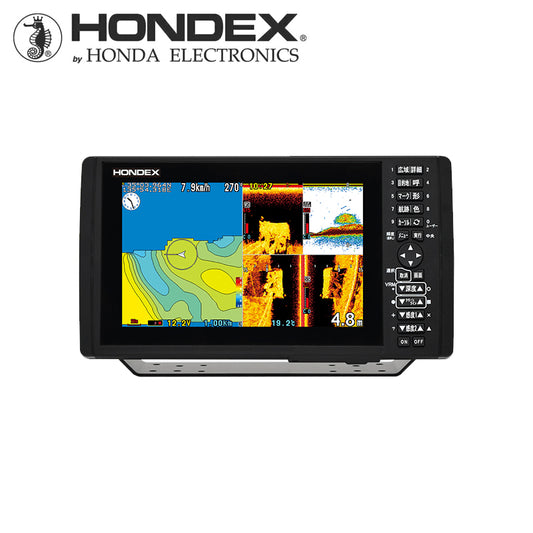

    HONDEX 9-inch Wide Color LCD Plotter Fish Finder HE-9000

    HONDEX by HONDA ELECTRONICS

    9-inch Wide Color LCD Plotter Fishfinder HE-9000
    No.40552 HE-9000

    ●Output: 200W
    ●Unit Dimensions: W315×D111×H180mm Approx. 2.2kg
    ●Power Voltage: DC11~30V Approx. 10W Approx. 0.8A/12V
    ●TD802: 200kHz+400kHz (Side Scan, Wide Scan)
    ※Optionally, TD02 (107kHz) or TD03 (200kHz) and TD43 (400kHz) can be connected in addition to TD802 (Side Scan (400kHz) or Wide Scan (400kHz) and TD43 (400kHz) cannot be used simultaneously. Switching is required via menu or key operation. Also, both TD02 (107kHz) and TD03 (200kHz) cannot be connected simultaneously.)
    ●New all-around model equipped with all functions in one unit
    ●Newly designed 9-inch wide LCD model
    ●Adopts the new "Smart Ducer® TD802" transducer, enabling side scan, wide scan, fishfinder, and water temperature sensor functions with a single unit.
    ●Allows simultaneous display of multiple functions, and can be set to the preferred screen layout.
    ●The new "Depth Mapping® function" is a convenient feature that creates a color-coded seabed topographic map based on depth data measured by your own boat, allowing fishing spots to be understood at a glance.



    The HE-9000 features the versatile transducer "Smart Ducer® TD802" newly developed by HONDEX, allowing the use of side scan, wide scan, fishfinder, and water temperature sensor functions with a single unit. It supports not only single-screen display but also simultaneous display of multiple functions, and can be set to the preferred screen layout.

    2684_file

    ・Side Scan: Emits wide, horizontally narrow beams to the left and right, scanning a wide area in fine detail.
    ・Wide Scan: Scans in fine detail with very narrow, front-to-back wide beams, and wide left-to-right beams.
    ※For both Side Scan and Wide Scan, a clear, underwater photograph-like image can be obtained by driving the boat slowly and straight.

    ・The HE-9000 can connect to standalone transducers other than the "Smart Ducer® TD802."

    Slim design with high-brightness bonding LCD and built-in GPS antenna!

    The HE-9000 features a 9-inch wide LCD with a display dot count of 800×480 dots, providing extremely high definition that clearly shows fine responses and text.
    The high-brightness LCD (1000 candelas) ensures visibility even in bright conditions such as direct sunlight. The adoption of a bonding LCD, which adheres the liquid crystal display and cover glass with a special resin to eliminate air layers, improves visibility and prevents condensation.
    With a slim design and built-in GPS antenna, installation location is flexible.
    ※If the unit is installed at an angle of 25° or more, reception may be difficult, requiring an external antenna.

    Clear screen view with polarized sunglasses!

    When wearing polarized sunglasses, conventional LCDs show color shift depending on the angle. However, the bonding LCDs in our bass fishing models do not exhibit color shift, providing a clear screen display from any angle.

    High-speed display of rich information! Standard equipped with easy-to-view detailed national maps.

    With a high-performance CPU, map drawing speed is top-class in the industry! Shorelines are smoothly displayed even during high-speed navigation. Place names are clearly and prominently displayed in Japanese. Data for lakes, marshes, rivers, and dams nationwide are also included.

    Full range of features useful for bass fishing!

    Equipped with Depth Mapping® function!

    This function uses fishfinder depth information and GPS position information to draw seabed topography on the screen map. It visualizes seabed undulations and artificial reefs that are not represented on standard maps, making prime fishing spots easier to identify. (※1)
    Based on the acquired data, it displays up to 50m of depth, color-coded at 50cm intervals. Depth and position information can be recorded for approximately 50 hours in the unit's internal memory. (※2)
    Data that does not fit into the unit can be moved and saved to the internal map card or optional memory card KD05-C. The map card or memory card can save 30 blocks of data, with each block being the data from the unit's internal memory. (※3)
    Additionally, by connecting two units with the optional link cable XC-133H, created depth mapping data can be transferred. (※4)

    2419_file

    As your boat moves, the seabed is drawn.

    2420_file

    A uniform course yields a clear image.

    (※1): The Depth Mapping® function infers and displays seabed topography based on depth measured while cruising. Actual topography may differ.
    (※2): At a recording distance interval of approximately 5m and boat speed of approximately 7km/h. Recording time may increase or decrease depending on settings and boat speed. The shortest recording time is approximately 18 hours.
    (※3): Only data from the internal memory can be displayed on the screen. To display data saved on a map card or memory card, the data must be loaded into the unit's internal memory. Loading will overwrite existing data in the unit, so please back up data to a map card or memory card as needed.
    (※4): Any of the following combinations of two units are possible: ①HE-9000 and HE-9000, ②HE-8000 and HE-8000, ③HE-9000 and HE-8000.

    Dual Map Display

    : Utilizing the large screen, the plotter screen can be split horizontally or vertically to simultaneously display two maps with different scales.

    Fishfinder Cursor Function

    : You can easily return to good spots on the fishfinder screen.

    Marked Position Date/Time, Depth, and Water Temperature Display

    : When you hover the cursor over a registered point, you can view the date, time, depth, and water temperature at which it was registered.

    Clean Line Function

    : This function makes the bottom line stand out, making it easier to distinguish between fish schools or weeds near the bottom and the bottom itself.

    Bottom Level Function

    : By displaying the hard bottom level with numerical values from 0 to 20 and a graph, you can easily determine the bottom sediment type.

    Fishfinder A-mode Display

    : Displayed between the fishfinder image and the depth scale, the width changes according to the intensity of the sound wave reflection signal.
    ※ A-mode cannot be set for Side Scan or Wide Scan.

    Fishfinder Zoom Function

    : The display used for regular fishfinding is magnified, making it easier to see seabed contours and fish school density.
    ※ Side scan and wide scan displays cannot be magnified.

    High-Speed Mode for High-Speed Cruising

    : Maximizes the number of ultrasonic emissions (up to 2400 times/minute) to display detailed bottom conditions.

    Main Specifications

    Display Unit Type 9-inch wide LCD (Bonding/Polarized Sunglasses compatible LCD)
    Display Screen Horizontal
    Display Dot Count 800×480
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 10W Approx. 0.8A/12V
    Main Unit Dimensions (mm) 315(W)×111(D)×180(H)
    Main Unit Weight Approx. 2.2kg
    Water Temperature Sensor *1 Standard equipment on Smart Transducer TD802
    Fishfinder Frequency *2 TD802: 200kHz + 400kHz (Side Scan/Wide Scan)
    ...Optional connection of TD02 (107kHz) or TD03 (200kHz) and
    TD43 (400kHz) in addition to TD802 is possible
    Output (Common) 200W
    Display Range *3 Deepest: 0～150m
    Shallowest: 0～2m
    Background Color 4 colors
    Color Array 7 types
    Scroll Speed 4 levels
    Auto Depth/Sensitivity 3 levels/3 levels
    Clean Line 50 levels
    Fish Alarm OFF/Small/Large
    Zoom OFF/Bottom Lock/Auto Zoom/Manual Zoom
    Zoom Magnification 2x/4x/8x
    Hard Bottom Level OFF/ON
    Plotter Scale Size 5m～500km or 0.005～500NM
    Memory Points Track: 32,000 points
    Mark: 24,000 points
    Destination: 1,000 points
    Drawing Function 4,000 points
    Map Data National detailed map
    GPS Antenna *4 Built-in GPS

    *1: Optional water temperature sensors cannot be used when using TD802. If TD802 and an optional water temperature sensor are used simultaneously, normal values will not be displayed.
    *2: Side Scan (400kHz) or Wide Scan (400kHz) and TD43 (400kHz) cannot be used simultaneously.
    Switching via menu or key operations is required. Also, both TD02 (107kHz) and TD03 (200kHz) cannot be connected.
    *3: The display range does not indicate depth measurement capability.
    *4: When using the built-in antenna, reception may not be possible depending on the installation location. (When an external antenna is connected, the external antenna takes precedence.)

    Compatible Options (Sold Separately)

    Heading Sensor Built-in GPS Antenna GP-16HD (Cable length: 10m)
    Heading Sensor HD03 (Cable length: 10m)
    GPS Antenna GP-16H(L) (Cable length: 10m)
    Water Temperature Sensor TC01C (6m), TC01G (3m), TC03-05 (5m), TC03-10 (10m)
    Link Cable XC-133H
    Memory Card KD05-C
    Transducer ・TD03 (6m-3P): 200kHz
    ・TD02 (6m-3P): 107kHz
    ・TD43 (6m-3P): 400kHz
    2022 Bus Model Options
    40552
    $2,296.80 USD $2,058.10
    $2,058.10
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C External GPS 600W HONDEX 45647
    HONDEX

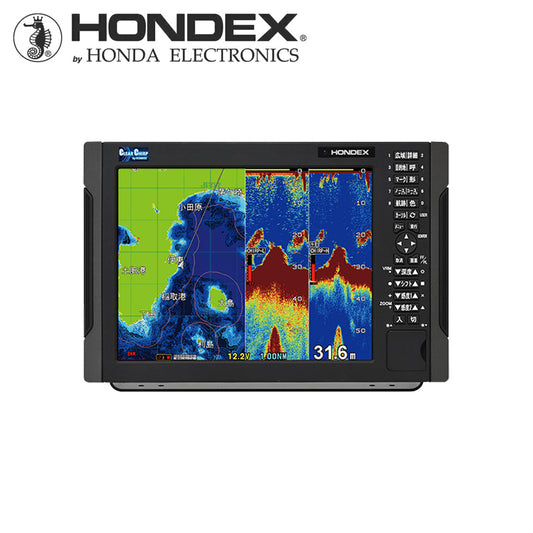

    HONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C External GPS 600W HONDEX 45647

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No.45647 External GPS Model M:90~140kHz

    *M: Mid CHIRP, L: Low CHIRP, H: High CHIRP
    ●Unit dimensions: W358×D146×H242mm approx. 3.5kg
    ●Unit voltage/power consumption/current: DC11~30V approx. 27W approx. 2.2A/12V
    ●Accessories: Unit & mount, power cord, transducer, hard cover
    ●Equipped with wideband mode



    Exclusively developed! Equipped with HONDEX Clear CHIRP™ Fish Finder!

    Conventional fish finders emit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, CHIRP fish finders emit sound waves while gradually changing the frequency and display the received signals as images after special processing.
    This significantly improves resolution and allows fish to be clearly displayed.

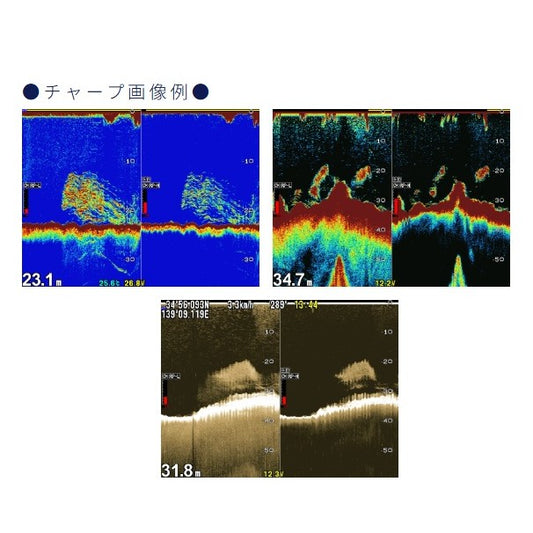

    ●CHIRP image examples●

    3114_file
    3115_file
    3116_file

    Furthermore, to realize this CHIRP technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and produce highly detailed images.

    Wideband Transducer for Clear CHIRP™ Fish Finders

    You can choose from TD320/TD340/TD361/TD380 for Clear CHIRP™ wideband transducers.
    The frequencies are 90kHz to 140kHz for mid CHIRP, 38kHz to 70kHz for low CHIRP, and 130kHz to 220kHz for high CHIRP.

    ●CHIRP Wideband Transducer●

    HDX_TD

    HDX-12C also features Wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low frequencies and 10kHz steps for mid and high frequencies. By selecting and changing the optimal frequency according to the fishing ground and target fish species, it is also effective in reducing interference from other ships' fish finders and noise.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line function

    Highlights the seabed boundary with a white line.
    The display level can be set, so you can adjust how the seabed appears according to the fishing spot and target.
    It makes it easy to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping® function storage capacity increased tenfold

    Storage capacity has increased tenfold, allowing for 1000 hours of recording internally.
    You can now save even more "personal spots," further enhancing your fishing enjoyment.
    *Scheduled to be implemented from shipments in April 2026

    Depth Mapping® PV

    NEW: GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to prepare them separately.
    For details, please contact your nearest dealer.
    *Scheduled to be supported from products shipped in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Maximum of 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    The image displayed on the main unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file
    For more information on compatible devices (smartphones/tablets) with HDX series, please see below.
    Operation may be unstable due to communication conditions.
    For iOS, it may not operate depending on the OS version and Safari version.

    Large Capacity Memory

    Compared to conventional models, track and mark storage capacity has been greatly increased.

    Smooth Map Drawing

    Compared to conventional models, smoother map drawing is now possible. *GPS reception frequency: 5 times/second

    USB Port for Data Storage

    Equipped with a USB port, you can transfer and save mark data and images from the main unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.
    *USB memory is not included.
    *Operation is not guaranteed for all USB memory devices. Some types may not function properly.

    Main Fishfinder Functions of HDX-12C

    The HDX-12C is equipped with a variety of functions unique to HONDEX fishfinders.

    Fish Size Display

    The digital series adds a size display to the popular fish character function.
    You can determine the size from 1 to 99, and to instantly check reactions and other information on the actual image, a one-touch "display/hide" function and a two-screen display with the normal screen have been adopted.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    Fish Depth Display

    The fish character display now includes the height from the seabed and the depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    Dual Frequency Display

    You can split the fishfinder image of the same frequency into two screens and adjust the sensitivity of each.
    By comparing the two screens, you can set the optimal sensitivity.

    Full Screen Sensitivity Adjustment

    With previous fish finders, sensitivity changed from the moment it was adjusted, but with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    This feature allows sensitivity adjustment while viewing the entire screen (past records), enabling even beginners to manually set up clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display has a very high resolution of 800 x 600 dots, clearly showing even subtle responses and text.
    Additionally, the adoption of a high-brightness LCD (1000 candela) ensures excellent visibility even in bright conditions such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the mounting location and method.
    Additionally, the HDX-12C can be connected to a monitor (no modification costs required), allowing the same screen to be displayed in remote locations on the boat.

    Specifications

    Display Type 12.1-inch color LCD
    Display screen Landscape
    Display dots 800×600
    Power supply voltage DC11～30V
    Power consumption/current Approx. 27W Approx. 2.2A/12V
    Dimensions (mm) W358×D146×H242
    Weight Approx. 3.5kg
    Fish Finder Frequency output See price list (below)
    Display range *1 Max: 0～1500m
    Min: 0～5m
    Background color 4 colors
    Color arrangement 5 types
    Plotter Scale size 0.005～500NM (km)
    Plot interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory points Track: 64,000 points Mark: 48,000 points Destination: 2,000 points
    Track display color 7 colors
    Route navigation 40 routes
    Drawing function ○
    Map fill/rotation ○
    Map data Nationwide detailed map
    Tide graph ○
    NMEA output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the mounting location.

    Compatible options (sold separately)

    Water Temperature Sensor Thru-hull type TC02CS (15m) + TCK01
    Transom type TC01C (6m), TC01G (3m), TC02ES (15m) + TCT01,
    TC03-05 (5m), TC03-10 (10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    Heading Sensor Built-in GPS Antenna GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    45647
    $6,374.50 USD $4,761.90
    $4,761.90
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C with External TD380 HONDEX 43531
    HONDEX

    HONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C with External TD380 HONDEX 43531

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No. 43531 External GPS type L:3kW・38~70kHz H:1kW・130~220kHz

    *M: Mid Chirp, L: Low Chirp, H: High Chirp
    ●Unit dimensions: W358×D146×H242mm Approx. 3.5kg
    ●Unit voltage/power consumption/current: DC11~30V Approx. 27W Approx. 2.2A/12V
    ●Accessories: Unit & bracket, power cord, transducer, hard cover
    ●Wideband mode included



    Our own development! Equipped with HONDEX Clear Chirp™ Fish Finder!

    Conventional fish finders output sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method outputs sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●Chirp Image Examples●

    3114_file
    3115_file
    3116_file

    Furthermore, to achieve this chirp technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and highly detailed images.

    Wideband Transducer for Clear Chirp™ Fish Finders

    You can choose from TD320/TD340/TD361/TD380 for the Clear Chirp™ wideband transducer.
    Frequencies are 90kHz-140kHz for mid chirp, 38kHz-70kHz for low chirp, and 130kHz-220kHz for high chirp.

    ●Wideband Transducers for Chirp●

    HDX_TD

    The HDX-12C also features a wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low, and 10kHz steps for mid and high. By selecting and changing the optimal frequency according to the fishing ground and target species, it is also effective in reducing interference and noise from other boats' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Feature Included

    Highlights the seabed boundary with a white line.
    The display level can be adjusted to suit the fishing spot and target.
    This makes it easier to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Depth Mapping® function included!

    depthmap_2026

    【NEW】Depth Mapping® function storage capacity increased tenfold

    The storage capacity has increased tenfold from the conventional model, allowing 1000 hours of data to be recorded internally.
    You can now save more of your "personal spots," further expanding the enjoyment of fishing.
    *Scheduled to be available from shipments in April 2026

    Depth Mapping® PV

    NEW: GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to prepare them separately.
    For more details, please contact your nearest dealer.
    *Scheduled to be compatible with products shipped from April 2026.
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    The image displayed on the unit can be cast to your smartphone or tablet.
    You can also perform basic operations from your smartphone or tablet.

    3112_file
    For detailed information on devices (smartphones/tablets) whose operation has been confirmed with the HDX series, please see below.
    Operation may become unstable depending on communication conditions.
    For iOS, it may not work depending on the OS version and Safari version.

    Large Capacity Storage Memory

    The memory capacity for tracks and marks is larger compared to conventional models.

    Smooth Map Rendering

    Compared to conventional models, smoother map rendering is now possible. *GPS reception frequency: 5 times/1 second

    USB Port for Data Storage

    The unit is equipped with a USB port, allowing you to transfer and save mark data and images from the unit to a commercially available USB flash drive (32GB or less) without the need for an optional memory card.
    *USB flash drive is not included.
    *Operation of all USB flash drives is not guaranteed. Some types may not operate normally.

    Main Fishfinder Functions of HDX-12C

    The HDX-12C is equipped with a variety of unique HONDEX fishfinder functions.

    Fish Size Display

    In the digital series, we have added a size display to the popular fish character function.
    You can determine the size from 1 to 99, and for instant confirmation of reactions and other details with actual images, we have adopted a one-touch "display/hide" function and a two-screen display with the normal screen.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    Fish Depth Display

    We have added the height from the seabed and the depth from the sea surface (unit: m) to the fish character display.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    Same Frequency Two-Screen Display

    You can display two fishfinder images of the same frequency side-by-side and adjust their sensitivities independently.
    By comparing the two screens, you can set the optimal sensitivity more effectively.

    Full Screen Sensitivity Adjustment

    With previous fish finders, changing the sensitivity would take effect from that point forward, but with digital fish finders, it's now possible to change the sensitivity on the screen (past records).
    With this feature, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set up clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display has a very high resolution of 800x600 dots, so even subtle reactions and text are clearly visible.
    In addition, the use of a high-brightness LCD (1000 candelas) provides excellent visibility in bright conditions, such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *Reception may not be possible depending on the mounting location and method when using the built-in antenna.
    In addition, the HDX-12C can be connected to a monitor (no modification cost required), allowing the same screen to be displayed at a remote location on the ship.

    Specifications

    Display Unit Type 12.1-inch Color LCD
    Display Screen Horizontal
    Display Dot Count 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W Approx. 2.2A/12V
    Unit Dimensions (mm) W358×D146×H242
    Unit Weight Approx. 3.5kg
    Fish Finder Frequency Output Refer to Price List (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～500NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Tracks: 64,000 points Marks: 48,000 points Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed National Map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate depth measurement capability.
    *2 Reception may not be possible depending on the mounting location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    Heading Sensor Built-in GPS Antenna GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H(2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    43531
    $8,671.30 USD $6,477.90
    $6,477.90
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C with External TD361 (HONDEX 43530)
    HONDEX

    HONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C with External TD361 (HONDEX 43530)

    HONDEX by HONDA ELECTRONICS

    12.1-inch plotter digital fish finder HDX-12C
    No.43530 External GPS type L: 2kW・38~70kHz H: 1kW・130~220kHz

    *M: Mid Chirp, L: Low Chirp, H: High Chirp
    ●Unit dimensions: W358×D146×H242mm approx. 3.5kg
    ●Unit voltage/power consumption/current: DC11~30V approx. 27W approx. 2.2A/12V
    ●Accessories: Unit & stand, power cord, transducer, hard cover
    ●Equipped with wideband mode



    Our own development! Equipped with HONDEX ClearChirp™ Fish Finder!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution, enabling clear imaging of fish.

    ●Chirp image example●

    3114_file
    3115_file
    3116_file

    Moreover, to realize this chirp technology, a dedicated broadband transducer capable of outputting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we can achieve optimal settings and produce detailed images.

    Broadband Transducer for ClearChirp™ Fish Finder

    The broadband transducers for ClearChirp™ are available from TD320/TD340/TD361/TD380.
    The frequencies are 90kHz to 140kHz for mid-chirp, 38kHz to 70kHz for low-chirp, and 130kHz to 220kHz for high-chirp.

    ●Chirp-compatible broadband transducer●

    HDX_TD

    The HDX-12C also features a wideband mode! You can select the frequency.

    In wideband mode, by connecting a broadband transducer, you can select frequencies in 5kHz steps for low frequencies and 10kHz steps for mid and high frequencies. By selecting and changing the optimal frequency according to the fishing ground and fish species, it is also effective in reducing interference and noise from other boats' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Function Installed

    Highlights the seabed boundary with a white line.
    The display level can be set, allowing you to adjust how the seabed appears according to the fishing ground and target.
    It makes it easy to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be available from shipments in April 2026.

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping® Function's Storage Capacity Increased Tenfold

    The storage capacity has been increased tenfold, allowing for 1000 hours of recording within the unit.
    This allows you to save even more of "your own spots," further expanding the enjoyment of fishing.
    *Scheduled to be installed from shipments in April 2026.

    Depth Mapping® PV

    New: GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to prepare them separately.
    Please contact your nearest dealer for more details.
    *Planned to be available from products shipped in April 2026.
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Maximum of 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    You can display the image shown on the unit on your smartphone or tablet.
    You can also perform basic operations from your smartphone or tablet.

    3112_file
    For detailed information on devices (smartphones/tablets) confirmed to work with the HDX series, please see below.
    Operation may be unstable depending on communication conditions.
    For iOS, operation may not be possible depending on the OS version and Safari version.

    Large-capacity Memory

    Compared to conventional models, the memory capacity for tracks and marks is larger.

    Smooth Map Rendering

    Compared to conventional models, smoother map rendering is now possible. *GPS reception rate: 5 times/1 second

    USB Port for Data Storage

    The unit is equipped with a USB port, allowing you to transfer and save mark data and images from the unit to a commercially available USB memory stick (32GB or less) without the need for an optional memory card.
    *USB memory stick is not included.
    *Operation of all USB memory sticks is not guaranteed. Some types may not operate normally.

    Main Fishfinder Functions of HDX-12C

    The HDX-12C is equipped with various functions unique to HONDEX fishfinders.

    Fish Size Display

    In the digital series, we have added a size display to the popular fish character function.
    You can determine the size from 1 to 99, and we have adopted a one-touch "display/hide" function and a two-screen display with the normal screen so that you can instantly check the reaction and other details on the actual image.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    Fish Depth Display

    We have added a display of the height from the seabed and the depth from the sea surface (unit: m) to the fish character display.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    Same Frequency Dual Screen Display

    You can split the fishfinder image of the same frequency into two screens and adjust the sensitivity of each.
    By comparing the two screens, you can set the optimal sensitivity.

    Full Screen Sensitivity Adjustment

    In previous fish finders, sensitivity changed from the moment it was adjusted, but with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    With this feature, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set up clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display has a very high resolution of 800 x 600 dots, allowing for clear viewing of fine details and text.
    In addition, the use of a high-brightness LCD (1000 candelas) ensures excellent visibility even in bright conditions such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *Reception may not be possible depending on the mounting location and method when using the built-in antenna.
    The HDX-12C can also be connected to a monitor (no modification costs required), allowing the same screen to be displayed at a remote location on the ship.

    Specifications

    Display Unit Type 12.1-inch Color LCD
    Display Screen Horizontal
    Display Resolution 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W Approx. 2.2A/12V
    Main Unit Dimensions (mm) W358×D146×H242
    Main Unit Weight Approx. 3.5kg
    Fishfinder Frequency Output Refer to Price List (below)
    Display Range *1 Maximum: 0～1500m
    Minimum: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～500NM (km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) interval
    Memory Points Tracks: 64,000 points Marks: 48,000 points Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed National Map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all models)

    *1 The display range does not indicate depth sounding capability.
    *2 Reception may not be possible depending on the mounting location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    Heading Sensor Built-in GPS Antenna GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H(2m)
    HDX-12S/12C Dedicated Multiscan Box HE-773BB



    43530
    $7,981.60 USD $5,963.10
    $5,963.10
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C with TD340 External Transducer (HONDEX 43529)
    HONDEX

    HONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C with TD340 External Transducer (HONDEX 43529)

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No. 43529 External GPS type L: 1kW・38~70kHz H: 1kW・130~220kHz

    *M: Mid Chirp, L: Low Chirp, H: High Chirp
    ●Main unit dimensions: W358 x D146 x H242mm, approx. 3.5kg
    ●Main unit voltage/power consumption/current: DC11~30V, approx. 27W, approx. 2.2A/12V
    ●Accessories: Main unit & stand, power cord, transducer, hard cover
    ●Equipped with wideband mode



    Developed In-house! Equipped with HONDEX ClearChirp™ Fish Finder!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●Chirp Image Examples●

    3114_file
    3115_file
    3116_file

    To realize this chirp technology, a dedicated wideband transducer capable of transmitting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and deliver precise images.

    Wideband Transducers Compatible with ClearChirp™ Fish Finder

    You can choose from TD320/TD340/TD361/TD380 for ClearChirp™ wideband transducers.
    The frequencies are 90kHz to 140kHz for mid-chirp, 38kHz to 70kHz for low-chirp, and 130kHz to 220kHz for high-chirp.

    ●Chirp Wideband Transducers●

    HDX_TD

    HDX-12C Also Features Wideband Mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low, and 10kHz steps for mid and high. Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line Function

    Highlights the boundary of the seabed with a white line.
    The display level can be set, so you can adjust how the seabed appears to suit your fishing spot and target.
    It makes it easier to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be supported from shipments starting April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® Function!

    depthmap_2026

    【NEW】Depth Mapping® Function Storage Capacity Increased 10-fold

    Storage capacity has been increased 10-fold compared to previous models, allowing 1000 hours of data to be recorded internally.
    You can now save even more of your "own points," further expanding your fishing enjoyment.
    *Scheduled to be installed from shipments starting April 2026

    [Depth Mapping® PV]

    [NEW] GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers need to prepare them separately.
    For more details, please contact your nearest dealer.
    *Scheduled to be supported for shipments from April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatible

    The image displayed on the main unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file
    *For more information on terminals (smartphones/tablets) confirmed to operate with the HDX series, please see below.
    *Operation may become unstable due to communication conditions.
    *For iOS, it may not operate depending on the OS version and Safari version.

    Large capacity storage memory

    Compared to conventional models, the memory capacity for tracks and marks is larger.

    Smooth map drawing

    Compared to conventional models, smoother map drawing is now possible. *GPS reception frequency: 5 times/1 second

    USB port for data saving

    The main unit is equipped with a USB port, so you can move and save mark data and images from the main unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.
    *USB memory is not included.
    *Operation of all USB memories is not guaranteed. Some types may not operate normally.

    Main fishfinder functions of HDX-12C

    The HDX-12C is equipped with a variety of functions unique to HONDEX fishfinders.

    Fish Size Display

    The digital series now includes a size display feature for the popular fish character function.
    You can determine the size from 1 to 99, and also use a one-touch "display/hide" function and a two-screen display with the normal screen to instantly check reactions in actual images.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values for size display may have errors due to various factors. Please consider them as reference values only.

    Fish Depth Display

    The fish character display now includes the height from the seabed and the depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values for depth display may have errors due to various factors. Please consider them as reference values only.

    Same Frequency Two-Screen Display

    The fishfinder images of the same frequency can be divided into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    Full Screen Sensitivity Adjustment

    With previous fish finders, changing the sensitivity would take effect from that point on, but with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    With this feature, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set up clear images.

    Bright screen with wide viewing angle & bonded LCD adopted

    The display has a very high resolution of 800x600 dots, so even small reactions and characters are clearly visible.
    In addition, the adoption of a high-brightness LCD (1000 candela) ensures excellent visibility even in bright places such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    In addition, the HDX-12C can be connected to a monitor (no modification cost required), allowing the same screen to be displayed in a remote location on the ship.

    Specifications

    Display Unit Type 12.1-inch Color LCD
    Display Screen Landscape
    Display Dots 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W Approx. 2.2A/12V
    Dimensions (mm) W358×D146×H242
    Weight Approx. 3.5kg
    Fish Finder Frequency Output See Price List (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～500NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Tracks: 64,000 points, Marks: 48,000 points, Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed National Map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all models)

    *1 The display range does not indicate the sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H(2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    43529
    $7,293.00 USD $5,448.30
    $5,448.30
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1" Plotter Digital Fish Finder HDX-12C Built-in TD380 HONDEX 43528
    HONDEX

    HONDEX 12.1" Plotter Digital Fish Finder HDX-12C Built-in TD380 HONDEX 43528

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No.43528 Built-in L:3kW·38~70kHz H:1kW·130~220kHz

    *M: Mid-CHIRP, L: Low-CHIRP, H: High-CHIRP
    ●Unit dimensions: W358×D146×H242mm Approx. 3.5kg
    ●Unit voltage/power consumption/current: DC11~30V Approx. 27W Approx. 2.2A/12V
    ●Accessories: Unit & bracket, power cord, transducer, hard cover
    ●Equipped with wideband mode



    Our original development! Equipped with HONDEX Clear CHIRP™ fish finder!

    Conventional fish finders output sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the CHIRP method outputs sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows for clearer imaging of fish.

    ●CHIRP Image Examples●

    3114_file
    3115_file
    3116_file

    In addition, to realize this CHIRP technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and realize precise images.

    Wideband Transducers Compatible with Clear CHIRP™ Fish Finders

    You can choose from TD320/TD340/TD361/TD380 for Clear CHIRP™ wideband transducers.
    The frequencies are 90kHz to 140kHz for Mid-CHIRP, 38kHz to 70kHz for Low-CHIRP, and 130kHz to 220kHz for High-CHIRP.

    ●Wideband transducer for CHIRP●

    HDX_TD

    HDX-12C also features wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low frequencies and 10kHz steps for mid and high frequencies. Selecting and changing the optimal frequency according to fishing grounds and target fish is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line Function

    Emphasizes the boundary of the seabed with a white line.
    The display level can be set, allowing you to adjust how the seabed appears according to the fishing spot and target.
    It makes it easier to distinguish between fish and the seabed, ideal for fishing targeting fish schools near the bottom.
    *Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping® Function Storage Capacity Increased 10x

    Storage capacity has increased 10-fold, allowing the unit to record 1000 hours of data internally.
    You can save even more of "your own points", further expanding your enjoyment of fishing.
    *Scheduled to be installed from shipments in April 2026

    [Depth MappingⓇPV]

    [NEW] GPS buoy display function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so you will need to prepare one separately.
    Please contact your nearest dealer for details.
    *Scheduled to be supported from shipments in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatible

    The image displayed on the unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file
    *For detailed information on devices (smartphones/tablets) whose operation has been confirmed in connection with the HDX series, please see below.
    *Operation may become unstable depending on communication conditions.
    *For iOS, it may not operate depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, the memory capacity for tracks and marks is much larger.

    Smooth map drawing

    Compared to conventional models, smoother map drawing is now possible. *GPS reception frequency: 5 times/1 second

    USB port for data storage

    Equipped with a USB port, you can move and save mark data and images from the unit to a commercially available USB memory stick (32GB or less) without the need for an optional memory card.
    *USB memory stick is not included.
    *Operation of all USB memory sticks is not guaranteed. Some types may not operate normally.

    Main Fishfinder Functions of HDX-12C

    The HDX-12C is equipped with a variety of functions unique to HONDEX fishfinders.

    Fish Size Display

    The digital series has added a size display to the popular fish character function.
    You can determine the size from 1 to 99, and also quickly check reactions with actual images using the one-touch "display/hide" function and two-screen display with the normal screen.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical value of the size display may vary due to various factors. Please consider it as a reference value only.

    Fish Depth Display

    The fish character display now includes the height from the seabed and the depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical value of the depth display may vary due to various factors. Please consider it as a reference value only.

    Same Frequency Two-Screen Display

    The fishfinder images of the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    Full Screen Sensitivity Adjustment

    With previous fish finders, changing the sensitivity would take effect from that point forward, but with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    With this feature, you can adjust the sensitivity while looking at the entire screen (past records), allowing even beginners to manually set up clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display has a very high resolution of 800x600 dots, so even subtle reactions and characters are clearly visible.
    In addition, the use of a high-brightness LCD (1000 candelas) provides excellent visibility in bright conditions such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the mounting location and method.
    In addition, the HDX-12C can be connected to a monitor (no modification cost required), allowing the same screen to be displayed in remote locations on the ship.

    Specifications

    Display Unit Type 12.1-inch Color LCD
    Display Screen Landscape
    Display Resolution 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W　Approx. 2.2A/12V
    Unit Dimensions (mm) W358×D146×H242
    Unit Weight Approx. 3.5kg
    Fish Finder Frequency Output See price list (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Colors 4 colors
    Color Palettes 5 types
    Plotter Scale Size 0.005～500NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Tracks: 64,000 points Markers: 48,000 points Destinations: 2,000 points
    Track Display Colors 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed national map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1　Display range does not indicate depth capability.
    *2　Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Splitter Box XB-300H(2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    43528
    $8,097.10 USD $6,048.90
    $6,048.90
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C Built-in 600W HONDEX 45646
    HONDEX

    HONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C Built-in 600W HONDEX 45646

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No.45646 Built-in type M: 90~140kHz

    *M: Mid-Chirp, L: Low-Chirp, H: High-Chirp
    ●Unit Dimensions: W358×D146×H242mm Approx. 3.5kg
    ●Unit Voltage/Power Consumption/Current: DC11~30V Approx. 27W Approx. 2.2A/12V
    ●Accessories: Unit & Cradle, Power Cable, Transducer, Hard Cover
    ●Equipped with Wide Band Mode



    Our Own Development! Equipped with HONDEX ClearChirp™ Fish Finder!

    Conventional fish finders emit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method emits sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be clearly displayed.

    ●Chirp image examples●

    3114_file
    3115_file
    3116_file

    Furthermore, to realize this chirp technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and realize precise images.

    Wideband Transducer for ClearChirp™ Fish Finder

    The wideband transducer for ClearChirp™ is available in TD320/TD340/TD361/TD380.
    The frequencies are 90kHz to 140kHz for mid-chirp, 38kHz to 70kHz for low-chirp, and 130kHz to 220kHz for high-chirp.

    ●Chirp Wideband Transducer●

    HDX_TD

    The HDX-12C also features Wideband Mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, frequencies can be selected in 5kHz steps for low, and 10kHz steps for mid and high. Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line function

    Highlights the seabed boundary with a white line.
    The display level can be set, allowing you to adjust how the seabed appears to suit your fishing spot and target.
    It makes it easy to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping® function storage capacity increased 10x!

    Storage capacity has increased tenfold, allowing for 1000 hours of recording internally.
    You can now save more of "your own points," further expanding the enjoyment of fishing.
    *Scheduled to be installed from shipments in April 2026

    [Depth Mapping PV]

    [NEW] GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to prepare them separately.
    For details, please contact your nearest dealer.
    *Scheduled to be supported from shipments in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    The image displayed on the main unit can be mirrored on a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file
    For more information on the HDX series compatible devices (smartphones/tablets) that have been confirmed to work, please see below.
    Operation may become unstable due to communication conditions.
    *For iOS, it may not work depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, the memory capacity for tracks and marks is larger.

    Smooth Map Drawing

    Compared to conventional models, smoother map drawing is now possible. *GPS reception rate: 5 times/1 second

    USB port for data saving

    The main unit is equipped with a USB port, so you can transfer and save mark data and images from the main unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.
    *USB memory is not included.
    *Operation of all USB memories is not guaranteed. Normal operation may not be possible depending on the type.

    Main fishfinder functions of HDX-12C

    The HDX-12C is equipped with a variety of functions unique to HONDEX fishfinders.

    Fish size display

    In the digital series, we have added a size display to the popular fish character function.
    You can determine the size from 1 to 99, and to instantly confirm reactions on the actual image, we have adopted a one-touch "display/hide" function and a two-screen display with the normal screen.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    Fish depth display

    The fish character display now includes the height from the seabed and the depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    Same frequency two-screen display

    The fishfinder image of the same frequency can be split and displayed on two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    Full screen sensitivity adjustment

    With previous fish finders, sensitivity changed from the moment it was adjusted, but with digital fish finders, sensitivity on the screen (past records) can now be changed.
    This function allows sensitivity to be adjusted while viewing the entire screen (past records), enabling even beginners to manually set clear images.

    Bright screen with wide viewing angle & bonded LCD adopted

    The display boasts a high resolution of 800x600 dots, ensuring fine details and text are clearly visible.
    Furthermore, the adoption of a high-brightness LCD (1000 candelas) provides excellent visibility even in bright conditions such as direct sunlight.
    The bonded LCD further enhances visibility and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-12C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the mounting location and method.
    Additionally, the HDX-12C can be connected to a monitor (no modification costs required), allowing the same screen to be displayed in a remote location on the vessel.

    Specifications

    Display Unit Type 12.1-inch color LCD
    Display Screen Landscape
    Display Unit Dots 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W Approx. 2.2A/12V
    Main Unit Dimensions (mm) W358×D146×H242
    Main Unit Weight Approx. 3.5kg
    Fish Finder Frequency Output Refer to Price List (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～500NM(km)
    Plotting Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Tracks: 64,000 points Marks: 48,000 points Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data National detailed map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate depth capability.
    *2 Reception may not be possible depending on the mounting location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H(2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    45646
    $5,800.30 USD $4,332.90
    $4,332.90
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1" Plotter Digital Fish Finder HDX-12C Built-in Type TD361 HONDEX 43527
    HONDEX

    HONDEX 12.1" Plotter Digital Fish Finder HDX-12C Built-in Type TD361 HONDEX 43527

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No.43527 Built-in L:2kW·38~70kHz H:1kW·130~220kHz

    *M: Mid CHIRP, L: Low CHIRP, H: High CHIRP
    ●Unit dimensions: W358×D146×H242mm Approx. 3.5kg
    ●Unit voltage/power consumption/current: DC11~30V Approx. 27W Approx. 2.2A/12V
    ●Accessories: Main unit & stand, power cord, transducer, hard cover
    ●Equipped with wideband mode



    Uniquely Developed! HONDEX Clear CHIRP™ Fish Finder Equipped!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the CHIRP method transmits sound waves while gradually changing the frequency, and processes the received signals with special algorithms to display images.
    This significantly improves resolution, allowing for clearer display of fish.

    ●CHIRP image examples●

    3114_file
    3115_file
    3116_file

    Furthermore, to realize this CHIRP technology, a dedicated broadband transducer capable of transmitting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and highly detailed images.

    Broadband Transducers Compatible with Clear CHIRP™ Fish Finders

    Broadband transducers for Clear CHIRP™ are available from TD320/TD340/TD361/TD380.
    The frequencies are 90kHz to 140kHz for mid-CHIRP, 38kHz to 70kHz for low-CHIRP, and 130kHz to 220kHz for high-CHIRP.

    ●CHIRP broadband transducers●

    HDX_TD

    The HDX-12C also features a wideband mode! You can select the frequency.

    In wideband mode, by connecting a broadband transducer, you can select frequencies in 5kHz steps for low, and 10kHz steps for mid and high. By selecting and changing the optimal frequency according to the fishing ground and fish species, it is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Feature Added

    Highlights the seabed boundary with a white line.
    The display level can be set, allowing you to adjust how the seabed appears according to the fishing spot and target.
    It makes it easy to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be supported starting with shipments in April 2026

    ホワイトライン機能

    Depth Mapping® Function Equipped!

    depthmap_2026

    【NEW】Depth Mapping® Function's Memory Capacity Increased 10-fold

    Memory capacity has increased 10-fold compared to conventional models, allowing 1000 hours of data to be recorded internally.
    You can now save even more "personal spots", further expanding your fishing enjoyment.
    *Scheduled to be installed starting with shipments in April 2026

    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers need to prepare them separately.
    For more details, please contact your nearest dealer.
    *Scheduled to be supported for products shipped from April 2026.
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    Images displayed on the unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file
    ※For detailed information on devices (smartphones/tablets) whose connection with the HDX series has been confirmed, please see below.
    ※Operation may become unstable depending on communication conditions.
    ※For iOS, it may not work depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, the memory capacity for tracks and marks is much larger.

    Smooth map drawing

    Compared to conventional models, map drawing is now smoother. *GPS reception frequency: 5 times/1 second

    USB port for data saving

    The unit is equipped with a USB port, so you can move and save mark data and images from the unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.
    *USB memory is not included.
    *Operation of all USB memories is not guaranteed. Some types may not function correctly.

    Main Fishfinder Functions of HDX-12C

    The HDX-12C is equipped with various features unique to HONDEX fishfinders.

    Fish Size Display

    The digital series has added a size display to the popular fish character function.
    You can judge by sizes from 1 to 99, and also quickly check reactions etc. with actual images using a one-touch "display/hide" function and a two-screen display with the normal screen.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    Fish Depth Display

    The fish character display now includes height from the seabed and depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    Dual-frequency display

    The fishfinder images of the same frequency can be split into two screens, and their sensitivity can be adjusted separately.
    By comparing the two screens, you can set the optimal sensitivity.

    Full-screen sensitivity adjustment

    With previous fish finders, changing the sensitivity would take effect from that point forward, but with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    This feature allows you to adjust the sensitivity while viewing the entire screen (past records), making it possible even for beginners to manually set clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display has a very high resolution of 800x600 dots, so even subtle responses and text are clearly visible.
    In addition, the adoption of a high-brightness LCD (1000 candelas) provides excellent visibility in bright places such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    In addition, the HDX-12C can be connected to a monitor (no modification cost required), allowing the same screen to be displayed in a remote location on the ship.

    Specifications

    Display Unit Type 12.1-inch color LCD
    Display Screen Landscape
    Display Pixels 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W Approx. 2.2A/12V
    Dimensions (mm) W358×D146×H242
    Weight Approx. 3.5kg
    Fish Finder Frequency Output Refer to price list (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～500NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM(km) intervals
    Memory Points Tracks: 64,000 points Marks: 48,000 points Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotate ○
    Map Data Detailed nationwide map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all models)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    Heading Sensor Built-in GPS Antenna GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H(2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    43527
    $7,407.40 USD $5,534.10
    $5,534.10
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C Built-in TD340 HONDEX 43526
    HONDEX

    HONDEX 12.1-inch Plotter Digital Fish Finder HDX-12C Built-in TD340 HONDEX 43526

    HONDEX by HONDA ELECTRONICS

    12.1-inch Plotter Digital Fish Finder HDX-12C
    No. 43526 Built-in type L: 1kW・38~70kHz H: 1kW・130~220kHz

    *M: Mid Chirp, L: Low Chirp, H: High Chirp
    ●Main unit dimensions: W358 x D146 x H242mm Approx. 3.5kg
    ●Main unit voltage/power consumption/current: DC11~30V Approx. 27W Approx. 2.2A/12V
    ●Accessories: Main unit & stand, power cord, transducer, hard cover
    ●Equipped with wideband mode



    Developed in-house! Equipped with HONDEX ClearChirp™ Fish Finder!

    General fish finders output sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method outputs sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●Chirp Image Examples●

    3114_file
    3115_file
    3116_file

    Also, to realize this chirp technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required.
    By developing both the main unit and the transducer in-house, we can achieve optimal settings and realize precise images.

    Wideband transducer compatible with ClearChirp™ fish finders

    Wideband transducers for ClearChirp™ are available from TD320/TD340/TD361/TD380.
    The frequencies are 90kHz to 140kHz for mid chirp, 38kHz to 70kHz for low chirp, and 130kHz to 220kHz for high chirp.

    ●Chirp Wideband Transducer●

    HDX_TD

    HDX-12C also features Wideband Mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low and 10kHz steps for mid and high. By selecting and changing the optimal frequency according to the fishing ground and fish species, it is also effective in reducing interference and noise from other boats' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Function Installed

    Highlights the seabed boundary with a white line.
    The display level can be adjusted, allowing you to customize the seabed visibility according to the fishing spot and target.
    This makes it easier to distinguish between fish and the seabed, ideal for fishing for schools of fish near the bottom.
    *Scheduled for release with shipments from April 2026

    ホワイトライン機能

    Equipped with Depth MappingⓇ function!

    depthmap_2026

    【NEW】Depth MappingⓇ function memory capacity increased tenfold

    The memory capacity has been increased tenfold, allowing for 1000 hours of recording internally.
    This allows you to save even more of "your own points", further expanding your fishing enjoyment.
    *Scheduled to be included with shipments from April 2026

    【Depth Mapping PV】

    NEW: GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    Please note that we do not sell GPS buoys, so you will need to prepare them separately.
    For more details, please contact your nearest dealer.
    *Scheduled to be supported from shipments in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Maximum of 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    The image displayed on the main unit can be mirrored to a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file
    For detailed information on devices (smartphones/tablets) whose operation has been confirmed with the HDX series, please see below.
    *Operation may become unstable depending on communication conditions.
    *For iOS, it may not work depending on the OS version and Safari version.

    Large Capacity Memory

    Compared to conventional models, the memory capacity for tracks and marks is greatly increased.

    Smooth Map Drawing

    Compared to conventional models, smoother map drawing is now possible. *GPS reception frequency: 5 times/1 second

    USB Port for Data Storage

    Equipped with a USB port, allowing you to transfer and save mark data and images from the main unit to a commercially available USB memory stick (32GB or less) without the need for an optional memory card.
    *USB memory stick is not included.
    *Operation of all USB memory sticks is not guaranteed. Some types may not function properly.

    Main Fishfinder Functions of HDX-12C

    The HDX-12C is equipped with a variety of features unique to HONDEX fishfinders.

    Fish Size Display

    The digital series has added size display to the popular fish character function.
    You can determine the size from 1 to 99, and to quickly check reactions etc. with actual images, it features a one-touch "display/hide" function and a two-screen display with the normal screen.
    *This function is only effective in fish mark mode. It can also be used within a 100m range.
    *The numerical value of the size display may have errors due to various factors. Please consider it as a reference value only.

    Fish Depth Display

    Added height from the seabed and depth from the sea surface display (unit: m) to the fish character display.
    *This function is only effective in fish mark mode. It can also be used within a 100m range.
    *The numerical value of the depth display may have errors due to various factors. Please consider it as a reference value only.

    Dual Frequency Display

    The fishfinder image of the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    Full Screen Sensitivity Adjustment

    With previous fish finders, changing the sensitivity would take effect from that moment onwards. However, with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    With this feature, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set up clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display has a very high resolution of 800x600 dots, so even fine reactions and text are clearly visible.
    In addition, the use of a high-brightness LCD (1000 candela) provides excellent visibility even in bright places such as direct sunlight.
    Furthermore, the use of a bonded LCD improves LCD visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-12C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    In addition, the HDX-12C can be connected to a monitor (no modification costs required), allowing the same screen to be displayed at a distant location on the ship.

    Specifications

    Display Type 12.1-inch color LCD
    Display Screen Horizontal
    Display Dots 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 27W Approx. 2.2A/12V
    Main Unit Dimensions (mm) W358×D146×H242
    Main Unit Weight Approx. 3.5kg
    Fish Finder Frequency Output Refer to Price List (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～500NM (km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) interval
    Memory Points Tracks: 64,000 points Marks: 48,000 points Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data National detailed map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS (15m) + TCK01
    Transom Type TC01C (6m), TC01G (3m), TC02ES (15m) + TCT01,
    TC03-05 (5m), TC03-10 (10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)
    HDX-12S/12C Dedicated Multi-Scan Box HE-773BB

    43526
    $6,718.80 USD $5,019.30
    $5,019.30
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Chartplotter Digital Fish Finder HDX-10C with External TD380 HONDEX 43525
    HONDEX

    HONDEX 10.4-inch Chartplotter Digital Fish Finder HDX-10C with External TD380 HONDEX 43525

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fish Finder HDX-10C
    No.43525 External GPS Type L:3kW・38~70kHz H:1kW・130~220kHz

    *M: Mid Chirp, L: Low Chirp, H: High Chirp
    ●Unit dimensions: W297×D127×H249mm, approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V, approx. 24W, approx. 2A/12V
    ●Accessories: Main unit & mount, power cord, transducer, hard cover, USB memory Type-C conversion cable
    ●Equipped with wideband mode



    Developed In-house! Equipped with HONDEX ClearChirp™ Fish Finder!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the Chirp method transmits sound waves while gradually changing the frequency, and then processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    Furthermore, to achieve this Chirp technology, a dedicated broadband transducer capable of outputting signals across a wide frequency range is required. By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and deliver precise images.

    Broadband Transducers for ClearChirp™ Fish Finders

    Broadband transducers for ClearChirp™ are available in TD320/TD340/TD361/TD380.
    The frequencies are 90kHz–140kHz for mid-chirp, 38kHz–70kHz for low-chirp, and 130kHz–220kHz for high-chirp.

    ●Broadband Transducers for Chirp●
    HDX_TD

    The HDX-10C also features a wideband mode! You can select the frequency.

    In wideband mode, by connecting a broadband transducer, you can select frequencies in 5kHz steps for low frequencies and 10kHz steps for mid and high frequencies. By selecting and changing the optimal frequency according to the fishing ground and fish type, it is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line Function

    Highlights the boundary of the seafloor with a white line.
    The display level is adjustable, allowing you to fine-tune the seafloor visibility to suit your fishing spot and target.
    It makes it easier to distinguish between fish and the seafloor, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be compatible with shipments from April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® Function!

    depthmap_2026

    【NEW】Depth Mapping®️ function storage capacity increased 10-fold

    Storage capacity has increased 10-fold, allowing for 1000 hours of recording within the unit.
    You can now save more "personal spots," further expanding the enjoyment of fishing.
    *Scheduled to be installed in units shipped from April 2026

    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to provide one separately.
    Please contact your nearest dealer for details.
    *Scheduled to be supported from April 2026 shipments
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatible

    Images displayed on the unit can be mirrored to smartphones and tablets.
    Basic operations can also be performed from smartphones and tablets.

    3112_file

    For detailed information on devices (smartphones/tablets) confirmed to work with the HDX series, please see below.
    *Operation may be unstable depending on communication conditions.
    *For iOS, it may not work depending on the OS version and Safari version.

    Large Capacity Memory

    Compared to conventional models, it has a large capacity for track and mark storage points.

    Smooth Map Rendering

    Compared to conventional models, smoother map rendering is now possible. *GPS reception frequency: 5 times/1 second

    USB Port for Data Storage

    Equipped with a USB port, you can transfer and save mark data and images from the unit to a commercially available USB memory (32GB or less) without the need for a memory card (optional).

    *USB memory is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect your existing USB memory (Type-A), connect the included USB memory Type-C conversion cable to the unit.
    *USB memory up to 32GB can be used with the HDX-10C. We do not guarantee the operation of all USB memories. Depending on the type, it may not operate correctly.

    Main Functions of HDX-10C

    The HDX-10C is equipped with a variety of functions unique to HONDEX fish finders.

    ● Fish size display
    In the digital series, we have added a size display to the popular fish character function.
    You can determine the size from 1 to 99, and we have adopted a one-touch "display/hide" function and a two-screen display with the normal screen, allowing you to instantly check reactions with actual video.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values for the size display may vary due to various factors. Please consider them as reference values only.

    ● Fish depth display
    We have added a display of the height from the seabed and the depth from the sea surface (unit: m) to the fish character display.
    *This function is only valid in fish mark mode. It can also be used within a 100m range.
    *The numerical values for the depth display may vary due to various factors. Please consider them as reference values only.

    ● Dual-screen display of the same frequency
    You can split the fishfinder image of the same frequency into two screens and adjust the sensitivity of each.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full-screen sensitivity adjustment
    With conventional fishfinders, changing the sensitivity meant it would change from that point on, but with digital fishfinders, you can now change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set clear images.

    Bright screen with wide viewing angle & bonding LCD

    The display unit has a very high resolution of 800x600 dots, so even subtle reactions and characters are clearly visible.
    In addition, with the adoption of a high-brightness LCD (1000 candelas), visibility in bright places such as direct sunlight is excellent.
    Furthermore, the bonding LCD improves LCD visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the mounting location and method.
    Additionally, the HDX-10C can be connected to a monitor (no modification costs required!) and display the same screen in a remote location on the boat.

    Specifications

    Display Unit Type 10.4-inch color LCD
    Display Screen Horizontal
    Display Dot Count 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 24W　Approx. 2A/12V
    Main Unit Dimensions (mm) W297×D127×H249
    Main Unit Weight Approx. 3kg
    Fishfinder Frequency
    Output     		Refer to Price List (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) interval
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotate ○
    Map Data Detailed national map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the mounting location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch SVGA LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)

    43525
    $7,464.60 USD $5,577.00
    $5,577.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Chartplotter Digital Fish Finder HDX-10C with External TD361 Transducer (HONDEX 43524)
    HONDEX

    HONDEX 10.4-inch Chartplotter Digital Fish Finder HDX-10C with External TD361 Transducer (HONDEX 43524)

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fish Finder HDX-10C
    No.43524 External GPS Type L:2kW・38~70kHz H:1kW・130~220kHz

    *M: Mid CHIRP, L: Low CHIRP, H: High CHIRP
    ●Unit dimensions: W297×D127×H249mm approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V approx. 24W approx. 2A/12V
    ●Accessories: Main unit & stand, power cord, transducer, hard cover, USB Type-C conversion cable
    ●Equipped with wideband mode



    Proprietary Development! Equipped with HONDEX Clear CHIRP™ Fish Finder!

    Conventional fishfinders transmit sound waves into the water at a single frequency and display the received signals as an image.
    In contrast, the CHIRP method transmits sound waves while gradually changing the frequency and processes the received signals with special techniques to display them as an image.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●CHIRP Image Example●
    3114_file
    3115_file
    3116_file

    Furthermore, to implement this CHIRP technology, a dedicated broadband transducer capable of outputting signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and deliver precise images.

    Broadband Transducers Compatible with Clear CHIRP™ Fish Finders

    Broadband transducers for Clear CHIRP™ are available from TD320/TD340/TD361/TD380.
    Frequencies are 90kHz-140kHz for mid-CHIRP, 38kHz-70kHz for low-CHIRP, and 130kHz-220kHz for high-CHIRP.

    ●Broadband Transducer for CHIRP●
    HDX_TD

    HDX-10C also features wideband mode! You can select frequencies.

    In wideband mode, by connecting a broadband transducer, frequencies can be selected in 5kHz steps for low, and 10kHz steps for mid and high. Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line Function

    Emphasizes the boundary of the seabed with a white line.
    The display level can be adjusted to suit the fishing spot and target.
    It makes it easier to distinguish between fish and the seabed, and is ideal for fishing targeting fish schools near the bottom.
    *Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping®️ feature: 10x memory capacity increase

    The memory capacity has been increased tenfold, allowing for up to 1000 hours of data to be recorded internally.
    This means you can save even more of your "personal points," further expanding the enjoyment of fishing.
    *Scheduled to be implemented in products shipped from April 2026 onwards.

    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers will need to procure them separately.
    For details, please contact your nearest dealer.
    *Scheduled to be supported from products shipped in April 2026 onwards.
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Maximum of 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    The image displayed on the main unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file

    ※Please refer to the following for more detailed information on devices (smartphones/tablets) whose connection with the HDX series has been confirmed.
    ※Operation may become unstable depending on communication conditions.
    ※In the case of iOS, it may not operate depending on the OS version and Safari version.

    Large Capacity Memory

    Compared to conventional models, the memory capacity for tracks and marks has been significantly increased.

    Smooth Map Drawing

    Compared to conventional models, map drawing is now smoother. *GPS reception frequency: 5 times/second

    USB Port for Data Storage

    Equipped with a USB port, the unit allows for transfer and storage of mark data and images to commercially available USB memory (32GB or less) directly from the unit, eliminating the need for an optional memory card.

    *USB memory is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect your existing USB memory (Type-A), please connect the included USB memory Type-C conversion cable to the unit.
    *USB memory up to 32GB can be used with the HDX-10C. Operation of all USB memory devices is not guaranteed. Some types may not function correctly.

    Key Features of HDX-10C

    The HDX-10C is equipped with a variety of features unique to HONDEX fishfinders.

    ● Fish size display
    In the digital series, we added a size display to the popular fish character function.
    It can be judged by sizes 1 to 99, and a one-touch function for "display/hide" and a two-screen display with the normal screen have been adopted so that reactions can be checked instantly with actual images.
    *This function is only valid in fish mark mode. Also, it can be used within a 100m range.
    *The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    ● Fish depth display
    The fish character display now includes the height from the seabed and the depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. Also, it can be used within a 100m range.
    *The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    ● Two-screen display of the same frequency
    The fishfinder image of the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full-screen sensitivity adjustment
    In conventional fishfinders, changing the sensitivity would take effect from that point on, but with digital fishfinders, it is now possible to change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while looking at the entire screen (past records), so even beginners can manually set a clear image.

    Bright screen with wide viewing angle & bonding LCD adopted

    The display's dot count is a very high-resolution 800x600, clearly showing even delicate responses and text.
    In addition, with the adoption of a high-brightness LCD (1000 candelas), visibility is outstanding even in bright places such as direct sunlight.
    Furthermore, the adoption of a bonded LCD improves the visibility of the LCD and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    Additionally, the HDX-10C allows monitor connection (no modification costs!) to display the same screen at a remote location on the ship.

    Specifications

    Display Unit Type 10.4-inch color LCD
    Display Screen Horizontal
    Display Dot Count 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 24W Approx. 2A/12V
    Main Unit Dimensions (mm) W297×D127×H249
    Main Unit Weight Approx. 3kg
    Fishfinder Frequency
    Output     		Refer to price list (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data National detailed map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all models)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch SVGA LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Splitter Box XB-300H (2m)

    43524
    $6,776.00 USD $5,062.20
    $5,062.20
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C External GPS 600W HONDEX 45645
    HONDEX

    HONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C External GPS 600W HONDEX 45645

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fishfinder HDX-10C
    No.45645 External GPS type M: 90~140kHz

    *M: Mid-Chirp, L: Low-Chirp, H: High-Chirp
    ●Unit dimensions: W297×D127×H249mm approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V approx. 24W approx. 2A/12V
    ●Accessories: Main unit & bracket, power cord, transducer, hard cover, Type-C conversion cable for USB memory
    ●Equipped with Wideband Mode



    Our original development! Equipped with HONDEX ClearChirp™ Fishfinder!

    Conventional fishfinders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency, and processes the received signals for image display.
    This significantly improves resolution and allows for clearer imaging of fish.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    Furthermore, to realize this chirp technology, a dedicated broadband transducer capable of outputting signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we can achieve optimal settings and produce detailed images.

    Broadband Transducers Compatible with ClearChirp™ Fishfinder

    Broadband transducers for ClearChirp™ are available in TD320/TD340/TD361/TD380.
    The frequencies are 90kHz to 140kHz for Mid-Chirp, 38kHz to 70kHz for Low-Chirp, and 130kHz to 220kHz for High-Chirp.

    ●Broadband Chirp Transducers●
    HDX_TD

    The HDX-10C is also equipped with Wideband Mode! You can select the frequency.

    In Wideband Mode, by connecting a broadband transducer, you can select frequencies in 5kHz steps for low range and 10kHz steps for mid and high ranges. Selecting and changing the optimal frequency according to the fishing ground and target fish species is also effective in reducing interference and noise from other vessels' fishfinders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line function

    Emphasizes the boundary of the seabed with a white line.
    The display level can be set, allowing you to adjust how the seabed appears according to the fishing spot and target.
    It makes it easy to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping® function memory capacity increased 10x

    The memory capacity has been increased by 10 times, allowing for 1000 hours of recording inside the unit.
    This allows you to save more "personal spots" and further expands the enjoyment of fishing.
    *Planned for units shipped from April 2026 onwards

    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers need to prepare them separately.
    Please contact your nearest dealer for details.
    *Scheduled to be supported from units shipped in April 2026.
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Maximum of 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatible

    The images displayed on the main unit can be mirrored on a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file

    For detailed information on tested devices (smartphones/tablets) for connection with the HDX series, please refer to the following.
    *Operation may be unstable depending on communication conditions.
    *For iOS, it may not operate depending on the OS version and Safari version.

    Large Memory Capacity

    Compared to conventional models, the memory capacity for tracks and marks is significantly larger.

    Smooth Map Rendering

    Compared to conventional models, smoother map rendering is now possible. *GPS reception frequency: 5 times/1 second

    Data can be saved with a USB port

    The main unit is equipped with a USB port, so you can move and save mark data and images from the main unit to a commercially available USB flash drive (32GB or less) without the need for an optional memory card.

    *USB flash drive is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect it to your existing USB flash drive (Type-A), connect the included USB flash drive Type-C conversion cable to the main unit.
    *The USB flash drive that can be used with the HDX-10C is up to 32GB. We do not guarantee the operation of all USB flash drives. Depending on the type, it may not operate correctly.

    Main Functions of HDX-10C

    The HDX-10C is equipped with a variety of functions unique to HONDEX fish finders.

    ● Fish size display
    The digital series adds size display to the popular fish character function.
    It can be judged by sizes 1 to 99, and in addition, a "display/hide" one-touch function and a two-screen display with the normal screen have been adopted so that reactions can be checked instantly with actual images.
    *This function is only valid in fish mark mode. Also, it can be used within a 100m range.
    *The numerical values for the size display may have errors due to various factors. Please consider them as reference values only.

    ● Fish depth display
    The fish character display has been enhanced with height from the seabed and depth from the sea surface (unit: m).
    *This function is only valid in fish mark mode. Also, it can be used within a 100m range.
    *The numerical values for the depth display may have errors due to various factors. Please consider them as reference values only.

    ● Dual-screen display of the same frequency
    Fishfinder images of the same frequency can be split into two screens, and their sensitivities can be adjusted individually.
    By comparing the two screens, optimal sensitivity can be set.

    ● Full-screen sensitivity adjustment
    With traditional fishfinders, changing the sensitivity would apply from that point forward. However, digital fishfinders now allow for sensitivity changes on the screen (past records).
    With this function, sensitivity can be adjusted while viewing the entire screen (past records), allowing even beginners to manually set clear images.

    Bright screen with wide viewing angle & bonded LCD

    The display unit has a very high resolution of 800x600 dots, allowing for clear display of fine details and characters.
    Additionally, the adoption of a high-brightness LCD (1000 candelas) ensures excellent visibility even in bright conditions such as direct sunlight.
    Furthermore, the bonded LCD improves visibility and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the mounting location and method.
    Additionally, the HDX-10C can be connected to a monitor (no modification fee required!), allowing the same screen to be displayed at a remote location on the boat.

    Specifications

    Display unit Type 10.4-inch color LCD
    Display screen Landscape
    Display dots 800×600
    Power voltage DC11～30V
    Power consumption/current Approx. 24W Approx. 2A/12V
    Body dimensions (mm) W297×D127×H249
    Body mass Approx. 3kg
    Fishfinder Frequency
    Output     		See price list (below)
    Display range *1 Max: 0～1500m
    Min: 0～5m
    Background color 4 colors
    Color arrangement 5 types
    Plotter Scale size 0.005～200NM(km)
    Plot interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory points Tracks: 64,000 points
    Marks: 48,000 points
    Destinations: 2,000 points
    Track display color 7 colors
    Route navigation 40 routes
    Drawing function ○
    Map fill/rotation ○
    Map data Detailed nationwide map
    Tide graph ○
    NMEA output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate depth measurement capability.
    *2 Reception may not be possible depending on the mounting location.

    Compatible options (sold separately)

    Water temperature sensor Thru-hull type TC02CS(15m)+TCK01
    Transom type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote control CR04 (4m)
    DVI cable ○
    8.4-inch SVGA LCD monitor M-084SV ○
    10.4-inch SVGA LCD monitor M-104SV ○
    12.1-inch SVGA LCD monitor M-121SV ○
    GPS antenna GP-17H (10m)
    GPS antenna with built-in heading sensor GP-17HD (10m)
    Heading sensor HD03 (10m)
    NMEA distribution box XB-300H (2m)

    45645
    $5,167.80 USD $3,861.00
    $3,861.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C with TD340 External Transducer (Hondex 43523)
    HONDEX

    HONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C with TD340 External Transducer (Hondex 43523)

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fishfinder HDX-10C
    No.43523 External GPS Model L:1kW·38~70kHz H:1kW·130~220kHz

    *M: Mid Chirp, L: Low Chirp, H: High Chirp
    ●Unit Dimensions: W297×D127×H249mm Approx. 3.0kg
    ●Unit Voltage/Power Consumption/Current: DC11~30V Approx. 24W Approx. 2A/12V
    ●Accessories: Unit & Cradle, Power Cord, Transducer, Hard Cover, Type-C Conversion Cable for USB Memory
    ●Equipped with Wideband Mode



    Original Development! Equipped with HONDEX ClearChirp™ Fishfinder!

    Conventional fishfinders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    To realize this chirp technology, a dedicated wideband transducer capable of transmitting signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we can achieve optimal settings and produce detailed images.

    Wideband Transducer compatible with ClearChirp™ Fishfinder

    For ClearChirp™, you can choose from wideband transducers TD320/TD340/TD361/TD380.
    The frequency ranges are 90kHz–140kHz for mid-chirp, 38kHz–70kHz for low-chirp, and 130kHz–220kHz for high-chirp.

    ●Chirp Wideband Transducer●
    HDX_TD

    HDX-10C also features wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low band, and 10kHz steps for mid and high bands. By selecting and changing the optimal frequency according to the fishing ground and target fish species, it is also effective in reducing interference and noise from other vessels' fishfinders.

    2025_HDX_周波数選択

    【NEW】Equipped with White Line Function

    Emphasizes the seabed boundary with a white line.
    The display level can be set, allowing you to adjust how the seabed appears according to the fishing spot and target.
    It makes it easy to distinguish between fish and the seabed, ideal for fishing for schools of fish near the bottom.
    *Scheduled to be compatible with shipments from April 2026 onwards

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping®️ memory capacity increased 10x

    The memory capacity has been increased 10-fold, allowing for up to 1000 hours of data to be recorded internally.
    This allows you to save even more of your "personal spots," further expanding your fishing enjoyment.
    *Scheduled to be installed in products shipped from April 2026.

    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to purchase one separately.
    Please contact your nearest dealer for details.
    *Scheduled for support from products shipped from April 2026.
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets are supported.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatible

    The images displayed on the main unit can be mirrored on your smartphone or tablet.
    Basic operations can also be performed from your smartphone or tablet.

    3112_file

    For detailed information on compatible devices (smartphones/tablets) confirmed to work with the HDX series, please see below.
    *Operation may be unstable depending on communication conditions.
    *For iOS, it may not work depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, the number of tracks and marks that can be stored is greatly increased.

    Smooth Map Rendering

    Compared to conventional models, map rendering is now smoother. *GPS reception frequency: 5 times/second

    USB terminal for data saving

    Equipped with a USB terminal, the unit can transfer and save mark data and images from the main unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.

    *USB memory is not included.
    *HDX-10C is equipped with a USB (Type-C) port. To connect with your existing USB memory (Type-A), please connect the included Type-C conversion cable for USB memory to the main unit.
    *The USB memory that can be used with HDX-10C is up to 32GB. Operation is not guaranteed for all USB memories. Some types may not operate normally.

    Main features of HDX-10C

    The HDX-10C is equipped with various features unique to HONDEX fish finders.

    ● Fish size display
    In the digital series, we have added a size display to the popular fish character function.
    You can determine the size from 1 to 99, and also quickly check the reaction with actual video, with a "display/hide" one-touch function and a dual-screen display with the normal screen.
    * This function is only valid in fish mark mode. It can also be used within a 100m range.
    * The numerical values of the size display may have errors due to various factors. Please consider them as reference values.

    ● Fish depth display
    We have added the height from the seabed and the depth from the sea surface (unit: m) to the fish character display.
    * This function is only valid in fish mark mode. It can also be used within a 100m range.
    * The numerical values of the depth display may have errors due to various factors. Please consider them as reference values.

    ● Dual-screen display of the same frequency
    The fishfinder image of the same frequency can be split and displayed on two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full-screen sensitivity adjustment
    In conventional fishfinders, changing the sensitivity meant it changed from that point onward, but with digital fishfinders, you can now change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while viewing the entire screen (past records), so even beginners can manually set a clear image.

    Wide viewing angle and bright screen & bonded LCD adopted

    The display's dot count is 800x600, which is very high-definition, allowing even subtle reactions and text to be seen clearly.
    In addition, the adoption of a high-brightness LCD (1000 candelas) provides excellent visibility in bright places such as direct sunlight.
    Furthermore, the adoption of a bonded LCD improves LCD visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the mounting location and method.
    In addition, the HDX-10C can be connected to a monitor (no modification costs!), allowing the same screen to be displayed in remote locations on the ship.

    Specifications

    Display Unit Type 10.4-inch color LCD
    Display Screen Horizontal
    Display Dots 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 24W Approx. 2A/12V
    Main Unit Dimensions (mm) W297×D127×H249
    Main Unit Weight Approx. 3kg
    Fishfinder Frequency
    Output     		See price list (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Array 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) interval
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data National detailed map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch SVGA LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)

    43523
    $6,087.40 USD $4,547.40
    $4,547.40
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C Built-in TD380 HONDEX 43522
    HONDEX

    HONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C Built-in TD380 HONDEX 43522

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fish Finder HDX-10C
    No.43522 Built-in Type L:3kW·38~70kHz H:1kW·130~220kHz

    *M: Mid Chirp, L: Low Chirp (Low), H: High Chirp (High)
    ●Unit dimensions: W297×D127×H249mm Approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V Approx. 24W Approx. 2A/12V
    ●Accessories: Main unit & mount, power cord, transducer, hard cover, Type-C conversion cable for USB memory
    ●Equipped with wideband mode



    Our original development! Equipped with HONDEX ClearChirp™ fish finder!

    Conventional fish finders output sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the Chirp method outputs sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows for clearer imaging of fish.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    Furthermore, to realize this chirp technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required. By independently developing both the main unit and the transducer, we can achieve optimal settings and produce detailed images.

    Wideband Transducers Compatible with ClearChirp™ Fish Finders

    You can choose from TD320/TD340/TD361/TD380 for ClearChirp™ wideband transducers.
    Frequencies are 90kHz-140kHz for mid-chirp, 38kHz-70kHz for low-chirp, and 130kHz-220kHz for high-chirp.

    ●Chirp Wideband Transducer●
    HDX_TD

    HDX-10C also features wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low, and 10kHz steps for mid and high. Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Feature Included

    Emphasizes the boundary of the seabed with a white line.
    The display level can be set, allowing you to adjust how the seabed appears to suit the fishing spot and target.
    It makes it easy to distinguish between fish and the seabed, ideal for fishing aiming for schools of fish near the bottom.
    *Planned to be available from shipments in April 2026

    ホワイトライン機能

    Depth Mapping® Function Included!

    depthmap_2026

    【NEW】Depth Mapping®️ memory capacity increased 10x

    The memory capacity has increased tenfold, allowing for 1000 hours of recording internally.
    You can now save more of your "own spots" and further expand your enjoyment of fishing.
    *Planned to be installed in shipments starting April 2026

    【Depth Mapping®️ PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers need to prepare them separately.
    Please contact your nearest dealer for details.
    *Scheduled to be supported from shipments starting April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy trails disappear when the power is turned off.

    GPS Buoy Function

    Smartphone/Tablet Compatibility

    The image displayed on the main unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file

    For detailed information on HDX series compatible devices (smartphones/tablets), please see below.
    Please note that operation may be unstable depending on communication conditions.
    For iOS, it may not operate depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, it has a large capacity for storing tracks and marks.

    Smooth Map Rendering

    Compared to conventional models, smoother map rendering is now possible. *GPS reception frequency: 5 times/second

    USB port for data saving

    Equipped with a USB port, you can transfer and save mark data and images from the unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.

    *USB memory is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect with your existing USB memory (Type-A), please connect the included USB memory Type-C conversion cable to the unit.
    *USB memory up to 32GB can be used with the HDX-10C. Operation of all USB memory is not guaranteed. Depending on the type, normal operation may not be possible.

    Main Functions of HDX-10C

    The HDX-10C is equipped with a variety of unique HONDEX fishfinder features.

    ● Fish Size Display
    The digital series adds a size display to the popular fish character function.
    It can be judged by sizes 1-99, and a one-touch "display/hide" function and a two-screen display with the normal screen have been adopted to instantly confirm reactions and other details with actual video.
    * This function is only valid in fish mark mode. It can also be used within a 100m range.
    * The numerical values of the size display may vary due to various factors. Please consider them as reference values only.

    ● Fish Depth Display
    The fish character display now includes height from the seabed and depth from the sea surface (unit: m).
    * This function is only valid in fish mark mode. It can also be used within a 100m range.
    * The numerical values of the depth display may vary due to various factors. Please consider them as reference values only.

    ● Dual-Frequency Display
    The fishfinder image of the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, optimal sensitivity can be set.

    ● Full-Screen Sensitivity Adjustment
    With previous fishfinders, changing the sensitivity would take effect from that point in time, but with digital fishfinders, it is now possible to change the sensitivity on the screen (past records).
    With this function, sensitivity can be adjusted while viewing the entire screen (past records), allowing even beginners to manually set clear images.

    Bright screen with wide viewing angle & bonding LCD adopted

    The display dot count is a very high-definition 800x600, making even subtle reactions and characters clear and easy to see.
    In addition, the adoption of a high-brightness LCD (1000 candela) ensures excellent visibility even in bright conditions such as direct sunlight.
    Furthermore, the adoption of a bonded LCD improves LCD visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    Additionally, the HDX-10C allows monitor connection (no modification costs required!), enabling the same screen to be displayed in remote locations on the vessel.

    Specifications

    Display Unit Type 10.4-inch color LCD
    Display Screen Landscape
    Display Dots 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 24W Approx. 2A/12V
    Main Unit Dimensions (mm) W297×D127×H249
    Main Unit Weight Approx. 3kg
    Fishfinder Frequency
    Output     		Refer to Price List (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Array 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed National Map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all models)

    *1 The display range does not indicate the depth sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch SVGA LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)

    43522
    $6,890.40 USD $5,148.00
    $5,148.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4 inch Plotter Digital Fish Finder HDX-10C Built-in TD361 HONDEX 43521
    HONDEX

    HONDEX 10.4 inch Plotter Digital Fish Finder HDX-10C Built-in TD361 HONDEX 43521

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fish Finder HDX-10C
    No.43521 Built-in L:2kW·38~70kHz H:1kW·130~220kHz

    *M: Medium Chirp, L: Low Chirp, H: High Chirp
    ●Unit dimensions: W297×D127×H249mm approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V approx. 24W approx. 2A/12V
    ●Accessories: Unit & mounting bracket, power cord, transducer, hard cover, USB memory Type-C conversion cable
    ●Equipped with wideband mode



    Developed In-house! Equipped with HONDEX ClearChirp™ Fish Finder!

    Conventional fish finders emit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method emits sound waves while gradually changing the frequency and processes the received signals specially for image display.
    This significantly improves resolution, allowing fish to be displayed vividly.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    Moreover, to achieve this chirp technology, a dedicated wideband transducer capable of emitting signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and highly detailed images.

    Wideband Transducer compatible with ClearChirp™ Fish Finder

    You can choose a wideband transducer for ClearChirp™ from TD320/TD340/TD361/TD380.
    The frequencies are 90kHz-140kHz for mid-chirp, 38kHz-70kHz for low-chirp, and 130kHz-220kHz for high-chirp.

    ●Wideband Transducers for Chirp●
    HDX_TD

    HDX-10C also features a wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low and 10kHz steps for mid/high. Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Feature Included

    Emphasizes seabed boundaries with a white line.
    The display level can be adjusted, allowing you to fine-tune how the seabed appears to suit your fishing spot and target.
    It makes it easier to distinguish between fish and the seabed, ideal for fishing aiming at schools of fish near the bottom.
    *Scheduled to be supported from products shipped in April 2026.

    ホワイトライン機能

    Depth Mapping® Feature Included!

    depthmap_2026

    【NEW】Depth Mapping® function storage capacity increased 10x

    Storage capacity has been increased tenfold, allowing for 1000 hours of data to be recorded internally.
    This allows for more "personal points" to be saved, further expanding the enjoyment of fishing.
    *Scheduled to be installed on units shipped from April 2026 onwards


    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to prepare them separately.
    Please contact your nearest dealer for details.
    *Scheduled to be supported from units shipped in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPS Buoy Function

    Smartphone/Tablet Compatibility

    The image displayed on the main unit can be mirrored to a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file

    For detailed information on compatible devices (smartphones/tablets) that have been confirmed to work with the HDX series, please refer to the following.
    *Depending on communication conditions, operation may become unstable.
    *For iOS, it may not work depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, the number of memory points for tracks and marks is greatly increased.

    Smooth Map Rendering

    Compared to conventional models, map rendering is now smoother. *GPS reception rate: 5 times/1 second

    USB Port for Data Storage

    The main unit is equipped with a USB port, so you can transfer and save mark data and images from the main unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.

    *USB memory is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect with your existing USB memory (Type-A), please connect the included USB memory Type-C conversion cable to the main unit.
    *The maximum supported USB memory for the HDX-10C is 32GB. We do not guarantee the operation of all USB memories. Some types may not operate normally.

    Main Functions of HDX-10C

    The HDX-10C is equipped with a variety of unique HONDEX fishfinder functions.

    ● Fish size display
    The digital series adds size display to the popular fish character function.
    It can be determined by a size from 1 to 99, and a one-touch "display/hide" function and a two-screen display with the normal screen are adopted so that the reaction can be confirmed instantly with the actual image.
    * This function is only valid in fish mark mode. Also, it can be used within the 100m range.
    * The numerical value of the size display may have an error due to various factors. Please consider it as a reference value.

    ● Fish depth display
    The fish character display has been added with the height from the seabed and the depth from the sea level (unit: m).
    * This function is only valid in fish mark mode. Also, it can be used within the 100m range.
    * The numerical value of the depth display may have an error due to various factors. Please consider it as a reference value.

    ● Same frequency two-screen display
    The fish finder image of the same frequency can be divided into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the most optimal sensitivity.

    ● Full-screen sensitivity adjustment
    With conventional fish finders, the sensitivity changed from that point when it was changed, but with digital fish finders, it is now possible to change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while looking at the entire screen (past records), so even beginners can manually set a clear image.

    Bright screen with wide viewing angle & bonded LCD adopted

    The display unit has a very high resolution of 800 x 600 dots, allowing even fine reactions and characters to be seen clearly.
    In addition, the use of a high-brightness LCD (1000 candelas) provides excellent visibility in bright places such as direct sunlight.
    Furthermore, the use of a bonded LCD improves LCD visibility and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, it may not be able to receive depending on the mounting location and method.
    In addition, the HDX-10C can be connected to a monitor (no modification costs required!), allowing the same screen to be displayed even in remote locations on the ship.

    Specifications

    Display unit Type 10.4-inch color LCD
    Display screen Horizontal
    Display dot count 800×600
    Power supply voltage DC11～30V
    Power consumption/current Approx. 24W Approx. 2A/12V
    Main unit dimensions (mm) W297×D127×H249
    Main unit mass Approx. 3kg
    Fishfinder Frequency
    Output     		See price list (below)
    Display range *1 Maximum: 0～1500m
    Minimum: 0～5m
    Background color 4 colors
    Color array 5 types
    Plotter Scale size 0.005～200NM(km)
    Plot interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) interval
    Memory points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track display color 7 colors
    Route navigation 40 routes
    Drawing function ○
    Map fill/rotate ○
    Map data National detailed map
    Tide graph ○
    NMEA output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not mean depth measurement capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water temperature sensor Thru-hull type TC02CS(15m)+TCK01
    Transom type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote control CR04 (4m)
    DVI cable ○
    8.4-inch SVGA LCD monitor M-084SV ○
    10.4-inch SVGA LCD monitor M-104SV ○
    12.1-inch SVGA LCD monitor M-121SV ○
    GPS antenna GP-17H (10m)
    GPS antenna with built-in heading sensor GP-17HD (10m)
    Heading sensor HD03 (10m)
    NMEA splitter box XB-300H (2m)

    43521
    $6,201.80 USD $4,633.20
    $4,633.20
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C Built-in 1kw TD340 HONDEX 43520
    HONDEX

    HONDEX 10.4-inch Plotter Digital Fish Finder HDX-10C Built-in 1kw TD340 HONDEX 43520

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fish Finder HDX-10C
    No.43520 Built-in L:1kW·38~70kHz H:1kW·130~220kHz

    *M: Middle Chirp, L: Low Chirp, H: High Chirp
    ●Unit dimensions: W297×D127×H249mm, Approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V, Approx. 24W, Approx. 2A/12V
    ●Accessories: Main unit & stand, power cord, transducer, hard cover, USB Type-C conversion cable for USB memory
    ●Wideband mode equipped



    Our Own Development! Equipped with HONDEX ClearChirp™ Fishfinder!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency, and processes the received signals specially to display images.
    This significantly improves resolution and allows for clearer depiction of fish.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    Furthermore, to realize this chirp technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and deliver precise images.

    Wideband Transducer compatible with ClearChirp™ Fishfinder

    The wideband transducers for ClearChirp™ can be selected from TD320/TD340/TD361/TD380.
    The frequencies are 90kHz–140kHz for mid-chirp, 38kHz–70kHz for low-chirp, and 130kHz–220kHz for high-chirp.

    ●Wideband Transducers for Chirp●
    HDX_TD

    HDX-10C also features Wideband mode! You can select frequencies.

    In wideband mode, by connecting a wideband transducer, frequencies can be selected in 5kHz steps for low-chirp and 10kHz steps for mid/high-chirp. By selecting and changing the optimal frequency according to the fishing ground and target species, it is also effective in reducing interference and noise from other vessels' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line Function Equipped

    Highlights the boundary of the seabed with a white line.
    The display level can be adjusted, allowing you to fine-tune how the seabed appears to suit your fishing grounds and target species.
    This makes it easier to distinguish between fish and the seabed, ideal for fishing targeting schools of fish near the bottom.
    *Scheduled to be available from shipments in April 2026 onwards

    ホワイトライン機能

    Depth Mapping® Function Equipped!

    depthmap_2026

    【NEW】Depth Mapping® function storage capacity increased 10x

    The storage capacity has been increased tenfold, allowing for 1000 hours of data to be recorded internally.
    This allows you to save even more of "your own points" and further enhances the enjoyment of fishing.
    *Planned to be installed in products shipped from April 2026


    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to prepare them separately.
    Please contact your nearest dealer for more information.
    *Scheduled to be supported from products shipped in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy trails disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Support

    The image displayed on the main unit can be projected onto a smartphone or tablet.
    Basic operations can also be performed from a smartphone or tablet.

    3112_file

    For detailed information on compatible devices (smartphones/tablets) that have been tested for connection with the HDX series, please see below.
    Please note that operation may become unstable depending on communication conditions.
    For iOS, it may not work depending on the OS version and Safari version.

    Large capacity memory

    Compared to conventional models, it has a large capacity for storing track lines and marks.

    Smooth map drawing

    Compared to conventional models, map drawing is now smoother. *GPS reception frequency: 5 times/1 second

    USB port for data saving

    The main unit is equipped with a USB port, so you can transfer and save mark data and images from the main unit to a commercially available USB memory (32GB or less) without the need for an optional memory card.

    *USB memory is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect with your existing USB memory (Type-A), please connect the included Type-C conversion cable for USB memory to the main unit.
    *The USB memory that can be used with the HDX-10C is up to 32GB. We do not guarantee the operation of all USB memories. Some types may not operate normally.

    Main functions of HDX-10C

    The HDX-10C is equipped with a variety of functions unique to HONDEX fish finders.

    ● Fish Size Display
    The digital series now includes a size display feature for the popular fish character function.
    You can determine the size from 1 to 99, and we've also added a one-touch "Show/Hide" feature to instantly check reactions in real-time video, as well as a dual-screen display with the regular screen.
    *This function is only active in fish mark mode. It can also be used within a 100m range.
    *The numerical values for the size display may vary due to various factors. Please consider them as reference values only.

    ● Fish Depth Display
    We've added a display of the height from the seabed and the depth from the sea surface (unit: m) to the fish character display.
    *This function is only active in fish mark mode. It can also be used within a 100m range.
    *The numerical values for the depth display may vary due to various factors. Please consider them as reference values only.

    ● Dual Screen Display of the Same Frequency
    You can split the fishfinder image of the same frequency into two screens and adjust the sensitivity of each.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full-Screen Sensitivity Adjustment
    With conventional fishfinders, changing the sensitivity would apply from that point onwards, but with digital fishfinders, it is now possible to change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set clear images.

    Bright Screen with Wide Viewing Angle & Bonded LCD

    The display has a very high resolution of 800x600 dots, ensuring fine details and characters are clearly visible.
    Additionally, the adoption of a high-brightness LCD (1000 candelas) provides excellent visibility in bright environments, such as under direct sunlight.
    Furthermore, the use of a bonded LCD improves screen visibility and prevents condensation.

    Built-in GPS Antenna, Monitor Connection System Compatible

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    Additionally, the HDX-10C supports monitor connection (no modification fee required!), allowing the same screen to be displayed at remote locations on the vessel.

    Specifications

    Display Unit Type 10.4-inch color LCD
    Display Screen Horizontal
    Display Dot Count 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 24W Approx. 2A/12V
    Main Unit Dimensions (mm) W297×D127×H249
    Main Unit Weight Approx. 3kg
    Fishfinder Frequency
    Output     		See price list (below)
    Display Range *1 Maximum: 0～1500m
    Minimum: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plotting Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Tracks: 64,000 points
    Marks: 48,000 points
    Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed national map
    Tidal Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate depth measurement capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch SVGA LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)

    43520
    $5,513.20 USD $4,118.40
    $4,118.40
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 10.4-inch Chartplotter Digital Fish Finder HDX-10C Internal 600W HONDEX 45644
    HONDEX

    HONDEX 10.4-inch Chartplotter Digital Fish Finder HDX-10C Internal 600W HONDEX 45644

    HONDEX by HONDA ELECTRONICS

    10.4-inch Plotter Digital Fish Finder HDX-10C
    No.45644 Built-in M:90~140kHz

    *M: Mid-chirp, L: Low-chirp, H: High-chirp
    ●Unit dimensions: W297×D127×H249mm Approx. 3.0kg
    ●Unit voltage/power consumption/current: DC11~30V Approx. 24W Approx. 2A/12V
    ●Accessories: Main unit & stand, power cord, transducer, hard cover, USB Type-C conversion cable for USB memory
    ●Equipped with wideband mode



    Exclusively developed! Equipped with HONDEX ClearChirp™ fish finder!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and enables clear imaging of fish.

    ●Chirp image examples●
    3114_file
    3115_file
    3116_file

    Furthermore, to implement this chirp technology, a dedicated wideband transducer capable of transmitting signals over a broad frequency range is required. By developing both the main unit and the transducer in-house, we are able to achieve optimal settings, resulting in highly detailed images.

    Wideband transducer compatible with ClearChirp™ fish finder

    You can choose from TD320/TD340/TD361/TD380 for ClearChirp™ wideband transducers.
    The frequencies are 90kHz–140kHz for mid-chirp, 38kHz–70kHz for low-chirp, and 130kHz–220kHz for high-chirp.

    ●Chirp wideband transducers●
    HDX_TD

    The HDX-10C also features wideband mode! You can select the frequency.

    In wideband mode, by connecting a wideband transducer, you can select frequencies in 5kHz steps for low, and 10kHz steps for mid and high. By selecting and changing the optimal frequency according to the fishing ground and fish species, it is also effective in reducing interference and noise from other boats' fish finders.

    2025_HDX_周波数選択

    【NEW】White Line function included

    Emphasizes the boundary of the seabed with a white line.
    The display level is adjustable, allowing you to fine-tune how the seabed appears according to the fishing spot and target fish.
    It makes it easier to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Planned to be available for shipments starting April 2026

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    【NEW】Depth Mapping® function memory capacity increased 10 times

    The memory capacity has increased tenfold, allowing up to 1000 hours of data to be recorded internally.
    This means you can save even more of your "personal spots," expanding your enjoyment of fishing.
    *Planned for installation in units shipped from April 2026 onwards

    【Depth Mapping® PV】

    【NEW】GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers will need to provide them separately.
    For more details, please contact your nearest dealer.
    *Scheduled to be supported from units shipped in April 2026 onwards
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Smartphone/Tablet Compatibility

    The image displayed on the unit can be mirrored to smartphones and tablets.
    Basic operations can also be performed from smartphones and tablets.

    3112_file

    ※For detailed information on devices (smartphones/tablets) confirmed to work with the HDX series, please see below.
    ※Operation may become unstable depending on communication conditions.
    ※For iOS, it may not operate depending on the OS version and Safari version.

    Large Memory Capacity

    Compared to conventional models, the new model has a large memory capacity for tracks and marks.

    Smooth Map Display

    Compared to conventional models, smoother map drawing is now possible. *GPS reception frequency: 5 times/1 second

    Data can be saved with a USB port

    The unit is equipped with a USB port, so you can transfer and save mark data and images from the unit to a commercially available USB memory stick (32GB or less) without the need for an optional memory card.

    *USB memory stick is not included.
    *The HDX-10C is equipped with a USB (Type-C) port. To connect it to your existing USB memory stick (Type-A), please connect the included USB memory stick Type-C conversion cable to the unit.
    *The USB memory stick that can be used with the HDX-10C is limited to 32GB. We do not guarantee the operation of all USB memory sticks. Some types may not operate normally.

    Main Functions of HDX-10C

    The HDX-10C is equipped with a variety of functions unique to HONDEX fishfinders.

    ● Fish Size Display
    The digital series now includes a size display feature for the popular fish character function.
    You can determine the size from 1 to 99, and to instantly check reactions with actual footage, a "Show/Hide"
    one-touch function and a dual-screen display with the regular screen have been adopted.
    * This function is only valid in fish mark mode. Also, it can be used within a 100m range.
    * The numerical values of the size display may have errors due to various factors. Please consider them as reference values only.

    ● Fish Depth Display
    The fish character display now includes the height from the seabed and the depth from the sea surface (unit: m).
    * This function is only valid in fish mark mode. Also, it can be used within a 100m range.
    * The numerical values of the depth display may have errors due to various factors. Please consider them as reference values only.

    ● Same Frequency Dual-Screen Display
    The fish finder image of the same frequency can be split and displayed on two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full Screen Sensitivity Adjustment
    With conventional fish finders, changing the sensitivity meant it would change from that point onwards, but with digital fish finders,
    it is now possible to change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while looking at the entire screen (past records),
    allowing even beginners to manually set up a clear image.

    Bright screen with wide viewing angle & Bonding LCD adopted

    The display has a very high resolution of 800x600 dots, making even subtle reactions and text clear.
    In addition, the adoption of a high-brightness LCD (1000 candelas) ensures excellent visibility even in bright places such as direct sunlight.
    Furthermore, the adoption of a bonding LCD improves LCD visibility and prevents condensation.

    Built-in GPS antenna, compatible with monitor connection system

    The HDX-10C has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    Additionally, the HDX-10C can be connected to a monitor (no modification costs required!) allowing the same screen to be displayed in remote locations on the boat.

    Specifications

    Display Unit Type 10.4-inch color LCD
    Display Screen Landscape
    Display Resolution 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 24W Approx. 2A/12V
    Body Dimensions (mm) W297×D127×H249
    Body Weight Approx. 3kg
    Fish Finder Frequency
    Output     		See price list (below)
    Display Range *1 Max: 0～1500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Tracks: 64,000 points
    Marks: 48,000 points
    Destinations: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed national map
    Tidal Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 The display range does not indicate depth measurement capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA LCD Monitor M-084SV ○
    10.4-inch SVGA LCD Monitor M-104SV ○
    12.1-inch SVGA LCD Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H (2m)

    45644
    $4,593.60 USD $3,432.00
    $3,432.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 8.4-inch Plotter Digital Fish Finder HDX-8CⅡ External 600W TD320 HONDEX 46543
    HONDEX

    HONDEX 8.4-inch Plotter Digital Fish Finder HDX-8CⅡ External 600W TD320 HONDEX 46543

    HONDEX by HONDA ELECTRONICS

    8.4-inch Plotter Digital Fish Finder HDX-8C II
    No.46543 External 600W TD320

    ●Unit dimensions: W248 x D97 x H216mm, approx. 2.0kg
    ●Unit voltage/power consumption/current: DC11~30V approx. 18W approx. 1.5A/12V
    ●Accessories: Main unit, power cord, hard cover, USB memory type-C conversion cable, transducer TD320 (for No.46542, 46543 only)
    ●Wideband mode



    A simple upgrade from HDX-8C!

    "I don't need complicated features, but I want to try ClearChirp™!" To meet such customer requests,
    the HDX-8CII (from HDX-8C) has been made more affordable by removing Wi-Fi and 2-station functions.
    All other functions are the same as the HDX-8C. Enjoy ClearChirp™ with the clear and sharp imagery of an SVGA LCD.

    Independently developed! HONDEX ClearChirp™ compatible!

    Conventional fish finders emit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method emits sound waves while gradually changing the frequency and processes the received signals specially to display images.
    This significantly improves resolution and allows fish to be displayed more clearly.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    ※These image examples are Low Chirp (left) / High Chirp (right)

    Furthermore, to realize this chirp technology, a dedicated wideband transducer capable of outputting signals over a wide frequency range is required. By self-developing both the main unit and the transducer, we have achieved optimal settings and precise imaging.

    Newly developed! Wideband transducer compatible with mid-chirp

    The wideband transducer TD320, compatible with the HDX-8CII, is HONDEX's smallest wideband transducer ever. Its compact size allows for a wide range of installation options. The frequency for mid-chirp is 90-140kHz.

    ●Wideband Transducer for Mid-Chirp●
    TD320_説明2025

    HDX-8CII also features a wideband mode! You can select the frequency.

    In wideband mode, by connecting the wideband transducer TD320, you can select the frequency in 10kHz steps.
    Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    90-140kHz

    【NEW】White Line Function Included

    Emphasizes the seabed boundary with a white line.
    The display level can be set, so you can adjust how the seabed appears according to the fishing spot and target.
    It makes it easier to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    ※Scheduled to be available from shipments in April 2026

    ホワイトライン機能

    Depth Mapping® function included!

    depthmap_2026

    [NEW] Depth Mapping® function's memory capacity increased tenfold

    The memory capacity has been increased tenfold, allowing for 1000 hours of data to be recorded internally.
    This allows you to save even more of your "own unique points," expanding your fishing enjoyment even further.
    *Scheduled for installation in shipments from April 2026 onwards.

    【Depth Mapping® PV】

    [NEW] GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so you will need to purchase one separately.
    Please contact your nearest dealer for more details.
    *Planned to be supported from shipments in April 2026.
    *The optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPS buoy function

    Data storage possible with USB port

    The main unit is equipped with a USB port, allowing you to transfer and save mark data and images from the unit to a commercially available USB memory stick (32GB or less) without the need for an optional memory card.

    *USB memory stick is not included.
    *HDX-8CII is equipped with a USB (Type-C) port. To connect with your existing USB memory stick (Type-A), please connect the included USB memory Type-C conversion cable to the main unit.
    *USB memory sticks up to 32GB can be used with the HDX-8CII. Operation of all USB memory sticks is not guaranteed. Normal operation may not be possible depending on the type.

    Main features of HDX-8CII

    The HDX-8CII is equipped with various features unique to HONDEX fishfinders.

    ● Fish size display
    The popular fish character function now displays fish size.
    You can judge the size from 1 to 99, and also quickly check reactions with actual footage with the "display/hide" one-touch function, dual-screen display with the normal screen, and more.
    *This function can be used within a 100m range.
    *The numerical values for size display may have errors due to various factors. Please consider them as reference values only.
    *When the fish mark is ON, the CHIRP and 140kHz oscillation will automatically switch.

    ● Fish depth display
    We have added distance from the seabed and distance from the surface (unit: m) to the fish character display.
    *This function can be used within a 100m range.
    *The numerical values for depth display may have errors due to various factors. Please consider them as reference values only.

    ● Dual-screen display of the same frequency
    The fishfinder image of the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full-screen sensitivity adjustment
    With conventional fishfinders, the sensitivity changed from that point in time, but with digital fishfinders,
    the sensitivity on the screen (past records) can now be changed.
    With this function, you can adjust the sensitivity while viewing the entire screen (past records),
    allowing even beginners to manually set clear images.

    Bright screen with wide viewing angle & bonding LCD

    The display dot count is 800 x 600, providing extremely high definition, allowing even subtle reactions and text to be seen clearly.
    Additionally, the adoption of a high-brightness LCD (1000 candela) ensures excellent visibility even in bright environments such as direct sunlight.
    Furthermore, the use of a bonded LCD improves screen visibility and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-8CII has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    The HDX-8CII can also be connected to a monitor (a modification fee of ¥55,000 is required separately), allowing the same screen to be displayed in remote locations on the boat.

    Specifications

    Display Unit Type 8.4-inch color LCD
    Display screen Horizontal
    Display dot count 800×600
    Power voltage DC11～30V
    Power Consumption/Current Approx. 18W Approx. 1.5A/12V
    Dimensions (mm) W240×D97×H220
    Weight Approx. 2kg
    Fishfinder Frequency
    Output     		90～140kHz
    600W
    Display Range *1 Max: 0～500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Nationwide detailed map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1　The display range does not indicate the depth measurement capability.
    *2　Reception may not be possible depending on the mounting location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-hull type TC02CS(15m)+TCK01
    Transom type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA Monitor M-084SV ○
    10.4-inch SVGA Monitor M-104SV ○
    12.1-inch SVGA Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    GPS Antenna with Built-in Heading Sensor GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H
    Transducer TD28 (600W : 8m-3P)
    TD25 (600W : 8m-3P)

    46543
    $3,445.20 USD $2,574.00
    $2,574.00
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 8.4-inch Plotter Digital Fish Finder HDX-8CII External 600W Transducerless HONDEX 46541
    HONDEX

    HONDEX 8.4-inch Plotter Digital Fish Finder HDX-8CII External 600W Transducerless HONDEX 46541

    HONDEX by HONDA ELECTRONICS

    8.4-inch Plotter Digital Fish Finder HDX-8C II
    No.46541 External 600W Transducerless

    ● Unit dimensions: W248×D97×H216mm, approx. 2.0kg
    ● Unit voltage/power consumption/current: DC11~30V, approx. 18W, approx. 1.5A/12V
    ● Accessories: Main unit, power cord, hard cover, USB memory Type-C conversion cable, transducer TD320 (for No.46542, 46543 only)
    ● Wide band mode



    Simple update from HDX-8C!

    “I don't need complex features, but I want to try ClearChirp™!” To meet such customer requests,
    the HDX-8CII (from HDX-8C) has become more affordable by removing Wi-Fi and 2-station functions.
    Other features are the same as the HDX-8C. Enjoy ClearChirp™ with the clear and vivid images of the SVGA LCD.

    Our own development! HONDEX ClearChirp™ compatible!

    Conventional fish finders transmit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the chirp method transmits sound waves while gradually changing the frequency, and processes the received signals specially to display images.
    This significantly improves resolution and allows for clearer imaging of fish.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    ※These image examples are Low Chirp (left) / High Chirp (right)

    To implement this chirp technology, a dedicated wide-band transducer that can output signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we are able to achieve optimal settings and deliver precise images.

    Newly Developed! Wideband Transducer for Mid-Chirp

    The TD320 wideband transducer compatible with the HDX-8CII is HONDEX's smallest wideband transducer ever. Its compact size allows for versatile installation. The frequency is mid-chirp: 90-140kHz.

    ●Wideband Transducer for Mid-Chirp●
    TD320_説明2025

    HDX-8CII also features Wideband Mode! You can select the frequency.

    In wideband mode, by connecting the TD320 wideband transducer, frequencies can be selected in 10kHz steps.
    By selecting and changing the optimal frequency according to the fishing ground and fish species, it is also effective in reducing interference and noise from other boats' fish finders.

    90-140kHz

    【NEW】White Line Function Installed

    Highlights the seabed boundary with a white line.
    The display level can be set, so you can adjust how the seabed appears to suit your fishing spot and target.
    It makes it easier to distinguish between fish and the seabed, making it ideal for fishing targeting schools of fish near the bottom.
    *Scheduled to be compatible with shipments from April 2026

    ホワイトライン機能

    Depth Mapping® Function Installed!

    depthmap_2026

    [NEW] Depth Mapping® function memory capacity increased 10-fold

    The memory capacity has increased 10-fold, allowing the unit to record 1000 hours of data.
    This allows you to save more of your "personal spots" and further expand your fishing enjoyment.
    *Scheduled to be installed in products shipped from April 2026 onwards.

    【Depth Mapping® PV】

    [NEW] GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, you can display the position of the GPS buoy.
    We do not sell GPS buoys, so you will need to purchase them separately.
    Please contact your nearest dealer for more details.
    *Scheduled to be supported from products shipped in April 2026.
    *The optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets can be displayed.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Data storage possible with USB port

    The main unit is equipped with a USB port, allowing you to transfer and save mark data and images from the unit to a commercially available USB memory stick (32GB or less) without the need for an optional memory card.

    *USB memory stick is not included.
    *The HDX-8CII is equipped with a USB (Type-C) port. To connect your existing USB memory stick (Type-A), please connect the included USB memory Type-C conversion cable to the main unit.
    *USB memory sticks up to 32GB can be used with the HDX-8CII. Operation of all USB memory sticks is not guaranteed. Some types may not operate correctly.

    Main functions of HDX-8CII

    The HDX-8CII is equipped with a variety of functions unique to HONDEX fish finders.

    ● Fish Size Display
    The popular fish character function now displays fish size.
    You can judge the size from 1 to 99, and there are one-touch "display/hide" functions and a two-screen display with the normal screen, allowing you to instantly check reactions with actual footage.
    *This function can be used within the 100m range.
    *The displayed size values may vary due to various factors. Please consider them as reference values only.
    *When the fish mark is ON, the unit automatically switches to CHIRP and 140kHz oscillation.

    ● Fish Depth Display
    The fish character display now includes the distance from the seabed and the distance from the water surface (unit: m).
    *This function can be used within the 100m range.
    *The displayed depth values may vary due to various factors. Please consider them as reference values only.

    ● Dual Screen Display with Same Frequency
    This allows you to divide the fish finder image of the same frequency into two screens and adjust the sensitivity of each.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full Screen Sensitivity Adjustment
    While previous fish finders changed sensitivity from that point onwards, digital fish finders now allow you to change the sensitivity on the screen (past records).
    With this function, you can adjust the sensitivity while viewing the entire screen (past records), allowing even beginners to manually set clear images.

    Wide viewing angle and bright screen & bonding LCD adopted

    The display has a very high resolution of 800x600 dots, making even subtle reactions and characters clearly visible.
    In addition, the adoption of a high-brightness LCD (1000 candelas) ensures excellent visibility in bright environments such as direct sunlight.
    Furthermore, the bonding LCD improves visibility and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-8CII has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    Additionally, the HDX-8CII can be connected to a monitor (a modification fee of ¥55,000 is required separately), allowing the same screen to be displayed in remote locations on the boat.

    Specifications

    Display Unit Type 8.4-inch color LCD
    Display Screen Horizontal type
    Display Dot Count 800×600
    Power Voltage DC11～30V
    Power Consumption / Current Approx. 18W Approx. 1.5A/12V
    Dimensions (mm) W240×D97×H220
    Weight Approx. 2kg
    Fish Finder Frequency
    Output     		90～140kHz
    600W
    Display Range *1 Max: 0～500m
    Min: 0～5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005～200NM(km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01～2NM (km) intervals
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Waypoint: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data Detailed national map
    Tide Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all models)

    *1　The display range does not indicate depth measurement capability.
    *2　Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS(15m)+TCK01
    Transom Type TC01C(6m), TC01G(3m), TC02ES(15m)+TCT01,
    TC03-05(5m), TC03-10(10m)
    Remote Control CR04(4m)
    DVI Cable ○
    8.4-inch SVGA Monitor M-084SV ○
    10.4-inch SVGA Monitor M-104SV ○
    12.1-inch SVGA Monitor M-121SV ○
    GPS Antenna GP-17H(10m)
    GPS Antenna with Heading Sensor GP-17HD(10m)
    Heading Sensor HD03(10m)
    NMEA Junction Box XB-300H
    Transducer TD28 (600W : 8m-3P)
    TD25 (600W : 8m-3P)

    46541
    $3,100.90 USD $2,316.60
    $2,316.60
    (Tax incl.)
    Sale
  • 25% OFFHONDEX 8.4-inch Plotter Digital Fish Finder HDX-8CⅡ Built-in 600W Transducerless HONDEX 46540
    HONDEX

    HONDEX 8.4-inch Plotter Digital Fish Finder HDX-8CⅡ Built-in 600W Transducerless HONDEX 46540

    HONDEX by HONDA ELECTRONICS

    8.4-inch Plotter Digital Fish Finder HDX-8C II
    No. 46540 Built-in 600W Transducerless

    ●Dimensions: W248×D97×H216mm approx. 2.0kg
    ●Voltage/Power Consumption/Current: DC11~30V approx. 18W approx. 1.5A/12V
    ●Accessories: Main unit, power cord, hard cover, USB memory Type-C conversion cable, transducer TD320 (for No. 46542, 46543 only)
    ●Wideband mode



    Simple update from HDX-8C!

    We've heard your requests for ClearChirp™ technology without the complex features!
    The HDX-8CII (from the HDX-8C) has been made more affordable by removing the Wi-Fi and 2-station functions.
    All other functions are the same as the HDX-8C. Enjoy ClearChirp™ with clear and vivid images on the SVGA LCD.

    Developed In-house! HONDEX ClearChirp™ Compatible!

    Conventional fish finders emit sound waves into the sea at a single frequency and display the received signals as images.
    In contrast, the Chirp method emits sound waves while gradually changing the frequency, and processes the received signals with special processing to display images.
    This significantly improves resolution and allows for clearer imaging of fish.

    ●Chirp Image Examples●
    3114_file
    3115_file
    3116_file

    ※These image examples are Low Chirp (left) / High Chirp (right)

    To realize this Chirp technology, a dedicated broadband transducer that can output signals over a wide frequency range is required. By developing both the main unit and the transducer in-house, we can achieve optimal settings and realize precise images.

    Newly developed! Broadband transducer compatible with mid-Chirp!

    The TD320 broadband transducer for HDX-8CII is HONDEX's smallest broadband transducer ever. Its compact size allows for a wide range of installation options. The frequency is mid-Chirp: 90-140kHz.

    ●Broadband Transducer for Mid-Chirp●
    TD320_説明2025

    HDX-8CII also features wideband mode! You can select the frequency.

    In wideband mode, by connecting the broadband transducer TD320, you can select the frequency in 10kHz steps.
    Selecting and changing the optimal frequency according to the fishing ground and fish species is also effective in reducing interference and noise from other vessels' fish finders.

    90-140kHz

    【NEW】White Line Function Included

    The boundary of the seabed is highlighted with a white line.
    The display level can be set, so you can adjust how the seabed appears according to the fishing ground and target.
    It makes it easier to distinguish between fish and the seabed, making it ideal for fishing for schools of fish near the bottom.
    *Scheduled to be compatible with shipments from April 2026 onwards

    ホワイトライン機能

    Equipped with Depth Mapping® function!

    depthmap_2026

    [NEW] Depth Mapping® function memory capacity increased 10-fold

    The memory capacity has been increased 10-fold from the previous version, allowing for 1000 hours of recording within the unit.
    This allows you to save more "personal points," further expanding the enjoyment of fishing.
    *Scheduled to be installed in products shipped from April 2026

    【Depth Mapping® PV】

    [NEW] GPS Buoy Display Function

    By inputting data from a GPS buoy receiver, the position of the GPS buoy can be displayed.
    We do not sell GPS buoys, so customers need to prepare them separately.
    For more details, please contact your nearest dealer.
    *Scheduled to be supported from products shipped in April 2026
    *An optional NMEA input/output cable (XC-109H) is required to use the GPS buoy display function.
    *Up to 10 targets.
    *GPS buoy tracks disappear when the power is turned off.

    GPSブイ機能

    Data can be saved with the USB terminal.

    The unit is equipped with a USB port, allowing you to transfer and save mark data and images from the unit to a commercially available USB memory stick (up to 32GB) without the need for an optional memory card.

    *USB memory stick is not included.
    *The HDX-8CII is equipped with a USB (Type-C) port. To connect with your existing USB memory stick (Type-A), please connect the included USB memory Type-C conversion cable to the unit.
    *The HDX-8CII can use USB memory sticks up to 32GB. We do not guarantee the operation of all USB memory sticks. Some types may not operate correctly.

    Main Functions of HDX-8CII

    The HDX-8CII is equipped with a variety of functions unique to HONDEX fish finders.

    ● Fish Size Display
    The popular fish character function now displays fish sizes.
    You can judge the size from 1 to 99, and also quickly check reactions with actual images using the "Display/Hide"
    one-touch function, two-screen display with the normal screen, etc.
    *This function can be used within a range of 100m.
    *The numerical values for size display may have errors due to various factors. Please consider them as reference values only.
    *When the fish mark is ON, it automatically switches to CHIRP and 140kHz oscillation.

    ● Fish Depth Display
    The fish character display now includes the distance from the seabed and the distance from the surface (unit: m).
    *This function can be used within a range of 100m.
    *The numerical values for depth display may have errors due to various factors. Please consider them as reference values only.

    ● Two-screen display of the same frequency
    The fish finder image of the same frequency can be split into two screens, and the sensitivity of each can be adjusted.
    By comparing the two screens, you can set the optimal sensitivity.

    ● Full-screen Sensitivity Adjustment
    While previous fish finders changed sensitivity from the moment of adjustment, digital fish finders now allow for
    changing sensitivity on the screen (past records).
    With this function, you can adjust sensitivity while viewing the entire screen (past records), making it possible for
    even beginners to manually set clear images.

    Bright screen with wide viewing angle & Bonding LCD adopted

    The display boasts a very high resolution of 800x600 dots, ensuring clear visibility of fine details and text.
    Additionally, the adoption of a high-brightness LCD (1000 candelas) provides excellent visibility even in bright conditions such as direct sunlight.
    Furthermore, the bonding LCD improves screen visibility and prevents condensation.

    Built-in GPS antenna, monitor connection system compatible

    The HDX-8CII has a built-in GPS antenna. *When using the built-in antenna, reception may not be possible depending on the installation location and method.
    Additionally, the HDX-8CII can be connected to a monitor (modifications costing an additional ¥55,000 are required), allowing the same screen to be displayed in a separate location on the boat.

    Specifications

    Display Unit Type 8.4-inch color LCD
    Display Screen Horizontal
    Display Unit Dot Count 800×600
    Power Voltage DC11～30V
    Power Consumption/Current Approx. 18W, Approx. 1.5A/12V
    Dimensions (mm) W240×D97×H220
    Weight Approx. 2kg
    Fish Finder Frequency
    Output     		90-140kHz
    600W
    Display Range *1 Max: 0-500m
    Min: 0-5m
    Background Color 4 colors
    Color Scheme 5 types
    Plotter Scale Size 0.005-200NM (km)
    Plot Interval Time: 1, 5, 10, 20, 30 seconds
    1, 2, 5, 10, 20 minutes
    Distance: 0.01-2NM (km) intervals
    Memory Points Track: 64,000 points
    Mark: 48,000 points
    Destination: 2,000 points
    Track Display Color 7 colors
    Route Navigation 40 routes
    Drawing Function ○
    Map Fill/Rotation ○
    Map Data National detailed map
    Tidal Graph ○
    NMEA Output ○
    Antenna *2 Built-in GPS (all specifications)

    *1 Display range does not indicate depth sounding capability.
    *2 Reception may not be possible depending on the installation location.

    Compatible Options (Sold Separately)

    Water Temperature Sensor Thru-Hull Type TC02CS (15m)+TCK01
    Transom Type TC01C (6m), TC01G (3m), TC02ES (15m)+TCT01,
    TC03-05 (5m), TC03-10 (10m)
    Remote Control CR04 (4m)
    DVI Cable ○
    8.4-inch SVGA Monitor M-084SV ○
    10.4-inch SVGA Monitor M-104SV ○
    12.1-inch SVGA Monitor M-121SV ○
    GPS Antenna GP-17H (10m)
    GPS Antenna with Heading Sensor GP-17HD (10m)
    Heading Sensor HD03 (10m)
    NMEA Junction Box XB-300H
    Transducer TD28 (600W : 8m-3P)
    TD25 (600W : 8m-3P)

    46540
    $2,526.70 USD $1,887.60
    $1,887.60
    (Tax incl.)
    Sale
  • 11% OFFTIGHTJAPAN Rescue Anchor Rope [Shackle Loop] Mooring Nobinobi TIGHTJAPAN 0715 Anchor Rope Watercraft TIGHTJAPAN
    TIGHTJAPAN

    TIGHTJAPAN Rescue Anchor Rope [Shackle Loop] Mooring Nobinobi TIGHTJAPAN 0715 Anchor Rope Watercraft TIGHTJAPAN

    The rope had a hook and shackle on each end.
    Specially processed rubber absorbs strong shocks, allowing for smooth towing.
    It is a float type so it will float even if you throw it into water.
    The bright colors also provide excellent visibility.
    Unlike ordinary ropes, it is elastic, which helps prevent it from getting tangled in the pump case.

    ● Comes with a mesh bag for easy storage ● Rope length: 2800mm when retracted - maximum length approx. 6000mm

    0715-008RG
    $58.30 USD $51.70
    $51.70
    (Tax incl.)
    Sale
  • Outrigger NF-1/NF-E SRX-117-01, boat trailer SRX-117-01 SRX-117-02 SOREX trailer parts
    SOREX

    Outrigger NF-1/NF-E SRX-117-01, boat trailer SRX-117-01 SRX-117-02 SOREX trailer parts

    ●Ensures stability when parking.

    SRX-117-0/1 for NF-1/NF-E
    SRX-117-0/2 For boat trailers *Please let us know the trailer model and mounting location when ordering.

    SRX-159
    $74.80 USD $74.80
    $74.80
    (Tax incl.)
  • HONDA Outboard Motor Main Unit 300hp BF300A 4-stroke
    HONDA

    HONDA Outboard Motor Main Unit 300hp BF300A 4-stroke

    300 HP (BF300)

    V8 Engine
    Large displacement 4,952 cm³ engine delivers powerful and smooth propulsion.



    Features

    • The specially designed V8 engine produces abundant torque and high driving force, providing ample acceleration and stable performance even for heavy boats.
    • Optimized design of key components, such as the crankshaft, reduces vibration and noise, ensuring a comfortable cruising experience.
    • Sophisticated design shared with Honda's flagship outboard models, featuring a simple yet powerful styling that harmonizes with various boat styles.
    • High-capacity alternator ensures excellent charging performance. The idle charging output variable mechanism automatically controls engine speed according to electrical load, providing a stable power supply.



    Key Specifications

    Engine Name BF300A
    Environmental Certification No. R5 Marine No. 0009
    Type XDN XCDN UDN UCDN
    Engine Type Water-cooled 4-stroke 60° V8 Vertical Shaft
    Total Displacement (cm³) 4,952
    Bore x Stroke (mm) 89.0 x 99.5
    Rated Output [kW (PS)/rpm] 220.7 (300)/5,500
    Recommended Operating Range (rpm) 5,000–6,000
    Idling Speed (rpm) 750±50
    Fuel Unleaded automotive gasoline
    Ignition System Transistorized battery ignition
    Lubrication System Trochoid pump forced pressure feed
    Charging Performance 12V-70A
    Tilt-up Operating Angle 68° (at 12° transom angle)
    Trim Angle -4° to 16° (at 12° transom angle)
    Steering Angle 30° left/right
    Transom Height (mm) 638 765
    Steering System ― Electronic remote control
    Tilt/Trim System ― Power trim & tilt
    Overall Length (mm) 1,120
    Overall Width (mm) 650
    Overall Height (mm) 2,145 2,272
    Dry Weight (kg: including propeller) 355 360
    Propeller Rotation Direction Right Left Right Left



    • Propellers, remote controls, fuel tanks, meters, and other equipment vary depending on the type.
    • These specifications are subject to change without notice.
    • Please read the owner's manual and warranty thoroughly before use.
    • Ensure regular inspections and maintenance are performed.
    • For safe navigation, wear a life jacket and observe maritime laws and etiquette.
    BF300A-XDN
    $33,877.80 USD $33,877.80
    $33,877.80
    (Tax incl.)
  • Jobe Towable Tube Proton 3P Proton 3-person 230326002
    JOBE

    Jobe Towable Tube Proton 3P Proton 3-person 230326002

    Jobe Proton Towable 3Person
    Proton Towing Tube Max 3 People

    Introducing the Jobe Proton Towable 3P—bigger, bolder, and triple the fun. Designed for three riders, this towable carries on the reliable performance and comfort that made the Proton series so popular. Its supportive backrest keeps all riders securely in place during sharp turns, while soft neoprene handles provide a comfortable grip. With a durable 840-denier nylon cover and double-stitched seams, the Proton 3P is built tough to last season after season. So, hook up the rope, hold on tight, and enjoy the ride with a new look that stands out on the water.

    • Capacity: 3 people
    • Towing points x 1
    • Size: 220 × 180 × 75 cm
    • Handles with neoprene knuckle guards x 6
    • Double-stitched nylon
    • Boston valve
    • Quick connector
    • 840-denier nylon cover
    • 24-gauge PVC
    230326002
    $1,068.10 USD $1,068.10
    $1,068.10
    (Tax incl.)
  • Jobe Droplet 2P Towable Tube 230225001
    JOBE

    Jobe Droplet 2P Towable Tube 230225001

    Jobe Droplet Towable 2P
    Droplet Towable Tube, Max. 2 Person

    This model is designed for two riders, featuring six soft, grippy handles to ensure a secure hold even when bouncing over waves. It uses durable 24G PVC for the inner bladder and is fully covered with tough 420 denier nylon on the outside. It stands out with its refreshing blue design.

    Details

    • Capacity: 2 people
    • Towing point ×1
    • Size: Φ170 × 33cm
    • Handles with neoprene knuckle guards ×6
    • Double-stitched nylon
    • Boston valve
    • Quick connector
    • 420 denier nylon cover
    • 24 gauge PVC
    230225001
    $517.00 USD $517.00
    $517.00
    (Tax incl.)
  • Jobe Towing Tube Hotseat 1-seater Water Toy Marine Sports 230124003
    JOBE

    Jobe Towing Tube Hotseat 1-seater Water Toy Marine Sports 230124003

    Jobe Hotseat Towable 1Person
    Hot Seat Towing Tube for 1 Person

    840 Denier full coverage, most durable single person donut towing tube.
    Comes standard with a quick connector that allows you to connect to a towing rope with one touch

    • Capacity: 1 person
    • Towing point x 1
    • Size: Ø 128 × 52 cm
    • 4 handles with neoprene knuckle guards
    • Double stitched nylon
    • Boston Valve
    • Quick Connector
    • 840 denier nylon cover
    • 26 gauge PVC
      230126001
      $265.10 USD $265.10
      $265.10
      (Tax incl.)
    • Mooring rope [8φ×18m]
      No Brand

      Mooring rope [8φ×18m]

      ●A fast rope made of spun ester yarn with excellent weather resistance and durability.

      ●It is characterized by not easily floating in water and not becoming hard even after long periods of use.

      ●Both ends are heat treated to prevent fraying.

      ●It is a three-pronged rope.

      ●8φ×18m

      46768
      $79.20 USD $79.20
      $79.20
      (Tax incl.)
    • JETPILOT Waterproof Bag 70L Tote Bag Large Capacity Waterproof Jet Ski ACS24913
      JETPILOT

      JETPILOT Waterproof Bag 70L Tote Bag Large Capacity Waterproof Jet Ski ACS24913

      Introducing "Pacific Blue" from JETPILOT's waterproof bag series.

      This collection, with its matte hues reminiscent of the beautiful ocean, features high-quality materials and boasts IPX5/6 waterproof performance, equipped with all the necessary functions for water activities.

      ・Water-resistant fabric
      ・Sonic welded seams
      ・Webbing carry handle
      ・Sealed zipper

      ■Approximate size: W75.5cm x H45cm x D26cm

      [Disclaimer]
      This product is not completely waterproof.
      Please note that we are not responsible for any damage, loss, or disappearance of property, including your body, smartphone, or data, when using this product.

      Waterproof backpack, waterproof bag, waterproof backpack, camping, marine sports, water sports, outdoor, travel, roll-down, ACS24912, jet ski, personal watercraft, surfing, bodyboarding, wakeboarding, wakesurfing, kiteboarding, flyboarding, diving, SUP, windsurfing, kayaking, canoeing, snorkeling, fishing, marine sports, snowboarding, trekking, outdoor, glamping

      Brand: JETPILOT
      Product name: Venture oversized 70L tote

      ACS24913BL
      $83.60 USD $83.60
      $83.60
      (Tax incl.)
    • 【2026 NEW MODEL】JETPILOT AURORA NEVEST Jetpilot Life Vest for Women Aurora Jet Ski PWC JA25304CGA
      JETPILOT

      【2026 NEW MODEL】JETPILOT AURORA NEVEST Jetpilot Life Vest for Women Aurora Jet Ski PWC JA25304CGA

      This is a women's life vest made of neoprene, offering a gentle and comfortable feel against the skin. With a front zipper and two straps, it provides an excellent fit and can withstand intense movement. It's suitable for all marine sports, including jet skiing, wakeboarding, and SUP.
      ■US Coast Guard certified (JCI preliminary inspection certified for PWC only)

      ■Applicable Sizes
      S(8) : 70-80cm
      M(10) : 80-90cm
      L(12) : 85-95cm

      Personal Watercraft PWC Coast Guard Certified Jet Ski Jet Ski Life Vest Life Jacket Kawasaki Kawasaki Jet Ski YAMAHA Yamaha Marine Jet MARINEJET SEADOO Small Vessel Special Life Vest JCI Vessel Inspection Coast Guard Boat Inspection

      Brand: JETPILOT
      Product Name: AURORA GCA WOMAN NEO VEST

      JA25304CGABK-8
      $310.20 USD $310.20
      $310.20
      (Tax incl.)
    • [2026 New Model] JETPILOT Life Vest for Adults, Nylon, Women's, Jet Ski, Small Craft, JA25376CGA
      JETPILOT

      [2026 New Model] JETPILOT Life Vest for Adults, Nylon, Women's, Jet Ski, Small Craft, JA25376CGA

      This is a women's life jacket made of nylon with a front buckle. It is shorter than men's models, so there is no need to worry about the hem hitting the seat and causing the shoulders to float when seated. ■Equipped with a lanyard W-D ring and emergency whistle ■Impact resistance tested at 100mph ■US Coast Guard certified (JCI preliminary inspection certified for PWC only) ■Chest Measurement: Manufacturer Recommended/Applicable Size 8 (S): Approx. 81-91cm / 80-85cm 10 (M): Approx. 91-101cm / 85-90cm Personal Watercraft PWC Coast Guard Jet Ski PWC Life Vest Life Jacket Kawasaki Kawasaki JETSKI Jet Ski YAMAHA Yamaha Marine Jet MARINEJET SEADOO Small Vessel Special Life Preserver JCI Vessel Inspection Coast Guard Vessel Inspection Compliant Brand: JETPILOT Product Name: LUNA CGA WOMAN EST

      JA25376CGAGR-8
      $159.50 USD $159.50
      $159.50
      (Tax incl.)
    • JETPILOT Jet Pilot Roll Top 5 Liters WATERPROOF BAG Tarpaulin Marine Sports Boat Beach Swimming Pool
      JETPILOT

      JETPILOT Jet Pilot Roll Top 5 Liters WATERPROOF BAG Tarpaulin Marine Sports Boat Beach Swimming Pool

      JETPILOT roll type waterproof bag

      It is a waterproof bag that can be carried over one shoulder and can also be worn cross-body. Wrap the opening of the top about twice and fasten the left and right buckles at the top.

      Since the roll part is looped, it can also be used as a hand-held waterproof bag.

      ■Material Waterproof coat tarpaulin ■Capacity approximately 5 liters ■Accessories Shoulder strap

      jet ski watercraft watercraft watercraft
       Surfing Bodyboarding Wakeboarding Wakesurfing Kiteboarding Flyboarding Diving SUP Windsurfing Kayak Canoe Snorkeling Marine Sports

      ACS24904GY
      $50.60 USD $50.60
      $50.60
      (Tax incl.)
    • JETPILOT Life Jacket Adult Neoprene Vest Jet Ski Small Watercraft Special JCI Pre-Inspection JA25288CGA
      JETPILOT

      JETPILOT Life Jacket Adult Neoprene Vest Jet Ski Small Watercraft Special JCI Pre-Inspection JA25288CGA

      This is the new "VAULT" 2026 neo vest from Jetpilot RX.
      It features a comfortable, breathable neoprene feel and a fit not found in nylon types.
      It's a separate type, so it's easy to move in, and it has a more fitted feel than front-zip models.

      ■ US Coast Guard Approved (Pre-inspection/PWC-limited JCI law compliant equipment)
      ■ Equipped with lanyard D-ring and emergency whistle
      ■ Manufacturer recommended sizes (Size: Chest/Length)
      S: 81-91/61cm
      M: 91-102/62cm
      L: 102-112/64cm
      XL: 112-122/67cm
      2XL: 122-132/68cm

      Personal Watercraft PWC Jet Ski Kawasaki J Jet Ski SEADOO YAMAHA MARINEJET Marine Jet Life Vest Small Vessel Special JCI Inspection Japan Craft Small Inspection Organization Boat Inspection SUP Wakeboard Marine Sports Wetsuit River Play Sea Bathing Life Vest Life Jacket

      Brand: JETPILOT
      Product Name: Vault CGA F/E eco vest men's

      JA25288CGABK-M
      $310.20 USD $310.20
      $310.20
      (Tax incl.)
    • 2024 Arrival UP Jet Pilot RX RACE GLOVE Gloves Short Finger JA19303 PWC Jet Ski Watercraft Marine Gloves JETPILOT
      JETPILOT

      2024 Arrival UP Jet Pilot RX RACE GLOVE Gloves Short Finger JA19303 PWC Jet Ski Watercraft Marine Gloves JETPILOT

      half finger gloves

      PVC molded protectors are attached to the tops of the fingers and the back of the hands to reduce the impact burden, and also improve the movement of the fingers.
      Lycra fabric is used on the joints and sides of the fingers to make them smooth.
      These gloves are highly functional and durable, with Clarino (durable synthetic leather) on the front of the palm and double-reinforced Clarino with double stitching in the friction area with the grip.

      ■Size chart (hand width/total length)
      (M)21.5cm/21.5cm
      (L) 22.0cm/22.0cm
      (XL)23.0cm/23.0cm

      *Please note that this is our actual size when laid flat, so please allow slight errors. (US standard size)

      JA25301RD-M
      $69.30 USD $69.30
      $69.30
      (Tax incl.)
    • Jet Pilot RX RACE GLOVE Jet Glove Marine JA19300 JETPILOT
      JETPILOT

      Jet Pilot RX RACE GLOVE Jet Glove Marine JA19300 JETPILOT

      A standard model that can be used in all seasons.
      A PVC molded protector is attached to the back of the hand to reduce impact stress, and Lycra fabric is used on the sides of the fingers to make finger movements smoother. These gloves are highly functional and durable, with Clarino (durable synthetic leather) on the entire surface of the palm, and Clarino reinforced with double stitching in the area that makes contact with the grip.

      ■Size chart (hand width/total length/middle finger length)
      (S) 21.0cm/21.0cm/8.5cm
      (M 21.5cm/21.5cm/8.5cm
      (L) 22.0cm/22.0cm/9.0cm
      (XL) 23.0cm/23.0cm/9.0cm

      *Please note that the size is the actual size when placed flat, so please forgive any errors.
      (US standard size)

      [Staff comment]
      Try making the shape of a hand holding the grip.
      You can see that the MP joint part from the second joint is very important for jet gloves.
      JET PILOT gloves are designed to take good care of this area.
      These jet gloves have a "comfortable fit" that is neither too hard nor too soft, and have "appropriate protective function."

      Personal Watercraft (PWC) Watercraft Watercraft
      Jet Ski Marine Jet Kawasaki YAMAHA SEADOO JETSKI

      JA25300RD-M
      $83.60 USD $83.60
      $83.60
      (Tax incl.)
    • UNLIMITED Wetsuit John Men's Women's Jetski FLEAD UNLIMITED UWJ0710 2026 New Model
      UNLIMITED

      UNLIMITED Wetsuit John Men's Women's Jetski FLEAD UNLIMITED UWJ0710 2026 New Model

      Designed for professional riders: Maximum flexibility and performance

      Based on detailed feedback from our exclusive pro riders, their movements were thoroughly analyzed, and the design was perfected through repeated testing.
      The result is an ideal wetsuit that makes maximum use of highly stretchable materials for superior comfort and performance.

      UNLIMITED wetsuits pursue top-level quality and can maximize your potential on the water.
      The carefully considered side cutting not only enhances freedom of movement but also creates a streamlined, body-flattering shape, offering a perfect balance of functionality and style.

      With a unisex design, it fits a wide range of body types and is designed to flatter the figure, making it ideal for both men and women. -UNLIMITED FLEAD- Designed to achieve higher performance, and supervised by UNLIMITED's exclusive pro riders, it prioritizes specifications that maximize the "power," "speed," and "stability" of PWC. This is the ultimate wear that allows riders to embody the smartness of the era.

      -Features-
      ・YKK Back Zipper: Features a long john back zipper for smooth donning and doffing.
      ・Stabilizer Pads: Knee pads help improve grip during riding.
      ・2.5mm Flex Neoprene: A new material that has evolved from conventional fabrics. It is soft to the touch, offers increased elasticity, and is lighter.
      ・Knee Flexion Support: Designed with a flexion structure that does not hinder knee movement, ensuring smooth joint bending. Equipped with AIRFLOW technology, it also improves breathability and supports comfortable riding.
      ・Ankle Zipper: Features an easy-to-use zipper, and the slider can be protected with velcro tape.

      -Separately Sold Set-up Items-
      FLEAD WET JACKET (Product Number UWA0711) can be worn as a set with the above product.

      Size Chart
      Size Total Length (A) Inseam (B) Chest Width (C) Waist Width (D) Hip Width (E) Shoulder Width (F) Arm Circumference (G) Ankle Width (H)
      XS 128 cm (50.39 in) 65 cm (25.59 in) 36 cm (14.17 in) 31 cm (12.20 in) 39 cm (15.35 in) 33 cm (12.99 in) 17 cm (6.69 in) 9.5 cm (3.74 in)
      S 132 cm (51.97 in) 67 cm (26.38 in) 38.5 cm (15.16 in) 33 cm (12.99 in) 41 cm (16.14 in) 34 cm (13.39 in) 18.5 cm (7.28 in) 10 cm (3.94 in)
      M 136 cm (53.54 in) 69 cm (27.17 in) 40.5 cm (15.94 in) 35 cm (13.78 in) 43 cm (16.93 in) 35.5 cm (13.98 in) 19.5 cm (7.68 in) 10.5 cm (4.13 in)
      L 140 cm (55.12 in) 71 cm (27.95 in) 42.5 cm (16.73 in) 37 cm (14.57 in) 45 cm (17.72 in) 37 cm (14.57 in) 20.5 cm (8.07 in) 11 cm (4.33 in)
      XL 143 cm (56.30 in) 73 cm (28.74 in) 44.5 cm (17.52 in) 39 cm (15.35 in) 47 cm (18.50 in) 38.5 cm (15.16 in) 21.5 cm (8.46 in) 11.5 cm (4.53 in)
      XXL 146 cm (57.48 in) 75 cm (29.53 in) 46.5 cm (18.31 in) 41 cm (16.14 in) 49 cm (19.29 in) 40 cm (15.74 in) 22.5 cm (8.86 in) 12 cm (4.74 in)

      *Measurements are taken with the garment laid flat.

      Note:
      • Flex Neoprene: The dimensions above are actual measurements when laid flat. Flex neoprene material is highly flexible and will stretch to fit the body when worn.
      • Difference in Fit on Land vs. in Water: The fit of a wetsuit can differ between land and water. On land, a wetsuit typically feels tight because it is not stretched by water. Once in the water, the material stretches and conforms to the body, providing a more comfortable and flexible fit. Therefore, a wetsuit may feel a bit tighter on land than it does in the water.

      【Combine freely】
      ▶FLEAD WETSUITS JOHN (Product No. UWJ0710) here
      ▶FLEAD WET JACKET (Product No. UWA0711) here
      ▶FLEAD S/E LIFE VEST (Product No. UV0703) here
      ▶HYDRO X GLOVES (Product No. ULG0708) here
      ▶SUPERFLY RIDING BOOTS (Product No. ULS-2610) here
      ▶DUAL FLEXION SUNGLASSES (Product No. USG0710) here

      ▶UNLIMITED 2026 COLLECTION here

      Wetsuit, wet suit, race john, long john, men's, women's, neoprene, zipper, string, wear, jet ski, personal watercraft (PWC), marine sports, water sports, wakeboard, SUP board

      Brand: UNLIMITED
      Product Name: FLEAD WETSUITS JOHN

      UWJ0710BK-XS
      $287.10 USD $287.10
      $287.10
      (Tax incl.)
    • UNLIMITED Wetsuit Men's Women's Wet Jacket Jet Ski FLEAD Unlimited UWA0711 2026 New Model
      UNLIMITED

      UNLIMITED Wetsuit Men's Women's Wet Jacket Jet Ski FLEAD Unlimited UWA0711 2026 New Model

      UNLIMITED FLEAD wetsuits were designed based on the input of professional riders, thoroughly analyzing and engineering the rider's movements.

      By testing various patterns, we derived the optimal cut, resulting in a wetsuit that maximizes performance.
      The use of highly elastic material ensures an ideal fit, allowing riders to experience the highest quality and potential.

      The side cut beautifully sculpts the body line, giving a smart and stylish impression. UNLIMITED FLEAD - The pursuit of peak performance
      Under the supervision of UNLIMITED's exclusive professional riders, this wetsuit design is meticulously focused on maximizing the power, speed, and stability of PWC (Personal Watercraft).
      It is the ultimate gear for modern riders, embodying contemporary smartness.

      ■Features:

      • 2.5mm Flex Neoprene: A flexible and durable material for optimal fit.
      • YKK Zipper: Reliable, smooth, and easy to put on and take off.
      • Body Fit Cut Panels: Designed for a comfortable fit to the body and enhanced mobility.
      • Unisex Design: Suitable for both men and women.
      • AIR FLOW Technology: Added to the side panels to enhance ventilation for a softer ride. Improves comfort during the ride, reduces fatigue, and supports longer, more enjoyable sessions.
      Size Chart (cm / inches)

      *Sizes are measured flat. Flex neoprene is a highly elastic wetsuit material. *Sizes are based on US men's size standards.

      Size A. Length (cm/inch) B. Chest (cm/inch) C. Waist Width (cm/inch) D. Hem Width (cm/inch) E. Sleeve Length (cm/inch) F. Wrist Width (cm/inch)
      S 56 / 22.05 40 / 15.75 35.5 / 13.98 36.5 / 14.37 62 / 24.41 7.5 / 2.95
      M 58 / 22.83 42 / 16.54 37.5 / 14.76 38.5 / 15.16 64 / 25.20 7.5 / 2.95
      L 60 / 23.62 44 / 17.32 39.5 / 15.55 40.5 / 15.94 66 / 25.98 7.5 / 2.95
      XL 62 / 24.41 46 / 18.11 41.5 / 16.34 42.5 / 16.73 68 / 26.77 8 / 3.15
      XXL 64 / 25.1969 48 / 18.89 43.5 / 17.12 44.5 / 17.51 70 / 27.55 8 / 3.15



      Note:

      Flex Neoprene: The dimensions above are actual measurements when laid flat. Flex neoprene material is highly flexible, so it will stretch and conform to the body when worn.
             Difference in Fit on Land vs. in Water: The fit of a wetsuit can differ between on land and in water. On land, wetsuits generally feel tighter because they are not stretched by water. Once in the water, the material stretches and conforms to the body, providing a more comfortable and flexible fit. Therefore, a wetsuit may feel slightly tighter on land than it does in the water.

      【Combine freely】
      ▶FLEAD WETSUITS JOHN (Item UWJ0710) is here
      ▶FLEAD WET JACKET (Item UWA0711) is here
      ▶FLEAD S/E LIFE VEST (Item UV0703) is here
      ▶HYDRO X GLOVES (Item ULG0708) is here
      ▶SUPERFLY RIDING BOOTS (Item ULS-2610) is here
      ▶DUAL FLEXION SUNGLASSES (Item USG0710) is here

      ▶UNLIMITED 2026 COLLECTION is here

      Wetsuit Wet Suit Jacket Tapper Men's Women's Long Sleeve Race Wear Marine Wear Wear Jet Ski PWC Marine Sports Water Sports Wakeboard SUP Board Cold Protection Windproof UV Protection

      Brand: UNLIMITED
      Product Name: FLEAD WET JACKET

      UWA0711RD-S
      $184.80 USD $184.80
      $184.80
      (Tax incl.)
    • UNLIMITED Nylon Vest Life Vest Life Jacket Adult EXPEDITION Unlimited UV2602 2026 New Model
      UNLIMITED

      UNLIMITED Nylon Vest Life Vest Life Jacket Adult EXPEDITION Unlimited UV2602 2026 New Model

      Nylon Life Vest – Long-lasting comfort

      Nylon life vests provide a snug yet comfortable fit, ensuring stress-free wear even for extended periods. Designed for freedom of movement, they are ideal for long hours of marine sports.

      This product is US Coast Guard certified and comes with JCI preliminary inspection.

      About UNLIMITED Expedition

      The UNLIMITED Expedition series is crafted for users who enjoy marine sports casually and comfortably, blending a relaxed weekend vibe with comprehensive functionality.

      Key Features:
      1. Shoulder Stability Flap: Prevents shoulders from lifting even if the vest's hem touches the seat.
      2. Integrated Belt System: Eliminates snags for seamless wear.
      3. Wrinkle-Free Exterior: Internal foam is directly compressed, resulting in a smooth outer surface.
      4. Secure 4-Buckle Fit: Keeps the vest snug and secure.
      5. Internal Velcro Pocket: Perfect for storing essentials like marine licenses.
      6. Emergency Whistle: Alerts others to your presence in an emergency.
      7. Versatile D-Ring: Ideal for PWC kill switches and other marine accessories.
      Circumference size:
      Size Chest (cm) Chest (inches)
      XS 76–84 cm 30–33 inches
      S 84–94 cm 33–37 inches
      M 94–104 cm 37–41 inches
      L 104–114 cm 41–45 inches
      XL 114–124 cm 45–49 inches
      Certifications and Usage
      • USCG Certified: Meets strict safety standards.
      • Wide Range of Applications: Also ideal for wakeboarding, SUP, flyboarding, snorkeling, and more.

      Enhance your marine adventures with this thoughtfully designed life vest, balancing style, comfort, and safety.

      Life jacket, life vest, life vest, life preserver, floating vest, nylon, adult, men's, women's, pool, beach, leisure, outdoor, marine sports, activity, jet ski, personal watercraft, PWC, cute, cool, stylish, with whistle

      ▶UNLIMITED 2026 COLLECTION here

      Brand: UNLIMITED
      Product Name: EXPEDITION NYLON VEST

      UV2602BK-XS
      $161.70 USD $161.70
      $161.70
      (Tax incl.)
    • UNLIMITED Life Jacket for Adults Neovest Life Vest FLEAD Unlimited UV2601 2026 New Model
      UNLIMITED

      UNLIMITED Life Jacket for Adults Neovest Life Vest FLEAD Unlimited UV2601 2026 New Model

      High-spec model pursuing ultimate safety and comfort

      The UNLIMITED Neo Life Vest is a high-performance model developed in collaboration with experts.
      It is certified by the U.S. Coast Guard and comes with a JCI preliminary inspection.

      This life vest uses premium neoprene material and offers comfort, safety, and style.

      Main Features
      1. Soft Comfort: Made of wetsuit-grade neoprene, it provides a soft and comfortable feel against the skin.
      2. Premium Design: Features the stylish UNLIMITED logo, offering a sophisticated and luxurious look.
      3. Excellent Fit: Equipped with a front zipper and support buckles to ensure a snug fit.
      4. Emergency Preparedness: Includes a safety whistle to alert others in an emergency.
      5. Superior Drainage: Mesh at the bottom quickly drains water, keeping you comfortable.
      6. D-Ring Included: Adaptable for various uses, such as attaching a PWC (Personal Watercraft) kill switch.
      7. Lumbar Support: Lumbar padding reduces strain from prolonged wear.
      Size Guide

      Unisex design, sizes are based on men's sizes.

      Size Recommended Chest Circumference
      XS 74 - 84 cm (29 - 33 inches)
      S 84 - 94 cm (33 - 37 inches)
      M 94 - 104 cm (37 - 41 inches)
      L 104 - 114 cm (41 - 45 inches)
      XL 114 - 124 cm (45 - 49 inches)
      Material and Features
      • Material: Neoprene is also used in wetsuits. It is highly durable, weather-resistant, stretchy, buoyant, strong, and retains warmth, making it gentle on the skin and performing excellently in water sports.
      • Zipper Stopper: Prevents the zipper from sliding down when immersed in water.
      • Water-repellent Fabric: Provides a smooth and comfortable feel.
      What is the UNLIMITED FLEAD Series?

      The UNLIMITED FLEAD series is designed to maximize the performance of PWC (Personal Watercraft) in terms of "power," "speed," and "stability." Developed in collaboration with professional riders, it focuses on integrating functionality with modern design, enhancing rider dominance in both performance and style.

      Choose the high-quality UNLIMITED Neo Life Vest to enjoy water sports with peace of mind.

      This is for adults, but the series also includes
      Children's sizes (Youth UV0706Y, Child UV0706C) are also available.
      ▶Click here for the UNLIMITED 2026 COLLECTION

      Life vest, life jacket, floating vest, neoprene, adult, men's, women's, pool, beach, leisure, outdoor, marine sports, activity, jet ski, personal watercraft, PWC, cute, cool, stylish, with whistle

      Brand: UNLIMITED
      Product Name: FLEAD NEO VEST

      UV2601BK-XS
      $242.00 USD $242.00
      $242.00
      (Tax incl.)
    • UNLIMITED Life Jacket for Kids, Junior Life Vest, Neo Life Vest, Youth Unlimited UV0706Y 2026 New Model
      UNLIMITED

      UNLIMITED Life Jacket for Kids, Junior Life Vest, Neo Life Vest, Youth Unlimited UV0706Y 2026 New Model

      Made with soft, high-quality neoprene material for comfort and flexibility.
      This premium life vest protects your child while allowing freedom of movement.

      Designed for families who love water activities, this life vest is available in matching sets for parents and children (UV2601 for adults).

      ■      US Coast Guard certified: This model comes with JCI preliminary inspection.

      Features
      ・Soft and durable neoprene material for all-day comfort
      ・Matching parent-child design for a sophisticated look
      ・Includes a safety whistle for added safety


      Size Child Youth
      Age 2 - 6 6 - 10
      Height (cm) 90 - 110 110 - 130
      Height (in) 35.5 - 43 43 - 51
      Weight (kg) 10 - 20 20 - 30
      Weight (lbs) 22 - 44 44 - 66


      ▶FLEAD NEO VEST - Adult (Item No. UV2601) here
      ▶FLEAD NEO VEST - Child (Item No. UV0706C) here
      ▶UNLIMITED 2026 COLLECTION here

      life jacket life vest life preserver flotation vest children's life jacket neoprene kids children boy girl youth pool beach leisure outdoor jet ski personal watercraft PWC cute cool stylish with whistle

      Brand: UNLIMITED
      Product Name: YOUTH NEO LIFE VEST

      UV0706YBK
      $114.40 USD $114.40
      $114.40
      (Tax incl.)
    • UNLIMITED Life Jacket for Kids Child Life Vest Neo Life Vest UNLIMITED UV0706C 2026 New Model
      UNLIMITED

      UNLIMITED Life Jacket for Kids Child Life Vest Neo Life Vest UNLIMITED UV0706C 2026 New Model

      Made with soft, high-quality neoprene material for comfort and flexibility, this premium life vest supports your child's freedom of movement while keeping them safe. Designed for families who love water activities, this life vest is perfect as a parent-child set when paired with the adult version.

      *This product is not US Coast Guard certified, so it cannot be used for boat inspections. Please use it as a swimming aid.

      Features
      ・Soft and durable neoprene material for all-day comfort
      ・Crotch strap prevents the vest from riding up
      ・Matching parent-child design for a sophisticated look
      ・Safety whistle included for added safety

      Size Child Youth
      Age 2 - 6 6 - 10
      Height (cm) 90 - 110 110 - 130
      Height (in) 35.5 - 43 43 - 51
      Weight (kg) 10 - 20 20 - 30
      Weight (lbs) 22 - 44 44 - 66


      ▶FLEAD NEO VEST - Adult (Product No. UV2601) is here
      ▶FLEAD NEO VEST - Youth (Product No. UV0706Y) is here
      ▶UNLIMITED 2026 COLLECTION is here

      Life jacket, life vest, PFD, floating vest, children's life jacket, neoprene, with crotch strap, infant, baby, child, kids, boys, girls, pool, beach, leisure, outdoor, jet ski, personal watercraft, PWC, cute, cool, stylish, with whistle

      Brand: UNLIMITED
      Product Name: CHILD NEO LIFE VEST

      UV0706CBK
      $103.40 USD $103.40
      $103.40
      (Tax incl.)
    • UNLIMITED Life Jacket Adult Jet Ski FLEAD S/E Side Entry Life Vest Unlimited UV0703 2026 New Model
      UNLIMITED

      UNLIMITED Life Jacket Adult Jet Ski FLEAD S/E Side Entry Life Vest Unlimited UV0703 2026 New Model

      Take your jet ski performance to the next level with the side entry vest

      This side entry vest offers comfort and functionality with a lightweight yet durable design. Made of high-quality nylon OX/PVC rubber foam, this vest provides high flexibility and reduces resistance, fully supporting your ride.

      It is certified by the US Coast Guard and comes with a JCI preliminary inspection.

      Key Features:
      1. Belt Design: Prevents snagging while worn.
      2. Smooth Exterior: Directly tightens the internal foam to prevent wrinkles.
      3. Secure Fit: Three buckles on one side provide a snug, customized fit.
      4. Side Opening: Easy and hassle-free to put on and take off the vest.
      5. Inner Pocket: Features a Velcro-closure pocket for storing essentials like your boat license.
      6. Emergency Whistle: An emergency whistle to signal your presence when needed.
      7. D-Ring Attachment: Perfect for PWC kill switches and other uses

      Combining practicality with style, this vest features a minimalist design with a bold logo and vibrant straps for a striking visual. The racing-inspired lightweight design belongs to the UNLIMITED Professional Rider Series, making it a must-have for athletes seeking peak performance.

      Size and Certification Options:
      Corresponding Chest Size:
      Size Chest (cm) Chest (inches)
      S/M 81–102 cm 32–40 in
      L/XL 107–127 cm 42–50 in
      Certifications:
      • USCG Certified: Complies with U.S. Coast Guard safety standards. *Three buckles

      　Choose the certification that best suits your needs.

      【Combine freely】
      ▶FLEAD WETSUITS JOHN -Wetsuit John (Part No. UWJ0710) here
      ▶FLEAD WET JACKET-Wet Jacket (Part No. UWA0711) here
      ▶FLEAD S/E LIFE VEST-Side Entry Life Vest (Part No. UV0703) here
      ▶HYDRO X GLOVES-Hydro X Gloves (Part No. ULG0708) here
      ▶SUPERFLY RIDING BOOTS-Superfly Riding Boots (Part No. ULS-2610) here
      ▶DUAL FLEXION SUNGLASSES-Dual Flexion Sunglasses (Part No. USG0710) here

      ▶UNLIMITED 2026 COLLECTION here

      Life jacket, life vest, life jacket, life preserver, floating vest, nylon, adult, men's, women's, pool, beach, leisure, outdoor, marine sports, activity, jet ski, personal watercraft, PWC, cute, cool, stylish, with whistle

      Brand: UNLIMITED
      Product Name: FLEAD S/E LIFE VEST

      UV0703BK-SM
      $184.80 USD $184.80
      $184.80
      (Tax incl.)
    • UNLIMITED Sweat Hoodie Men's Element Hoodie Unlimited USW261 2026 New Release
      UNLIMITED

      UNLIMITED Sweat Hoodie Men's Element Hoodie Unlimited USW261 2026 New Release

      UNLIMITED original hooded sweatshirt.
      This brushed-back hoodie features a simple "UL" logo and is easy to coordinate.

      It's perfect for everyday wear, as well as for outdoor activities, marine leisure, and as a light jacket when traveling.

      ■Fabric: 90% cotton, 10% polyester
      ■Center pocket
      ■Actual product size (cm)
      ※Due to the nature of stretchy fabric, there may be an error of plus or minus 1 cm.

      A. Shoulder width - Measured straight across while laid flat.
      B. Neck circumference - Measured around the collar while laid flat.
      C. Waistcoat - Measured straight across the widest part of the body while laid flat, then multiplied by 2.
      D. Length - Measured straight from the back of the neck to the hem.

      S: A.49 /B.44 /C.100 /D.67
      M: A.52 /B.46 /C.105 /D.68
      L: A.55 /B.48 /C.110 /D.69
      XL: A.58 /B.50 /C.117 /D.71

      ▶Click here for the UNLIMITED 2026 COLLECTION

      Hoodie, parka, sweatshirt, tops, apparel, hooded, men's, adult, stylish

      Brand: UNLIMITED
      Product name: ELEMENT HOODIE

      USW261BK-S
      $91.30 USD $91.30
      $91.30
      (Tax incl.)
    Recently Viewed Products
